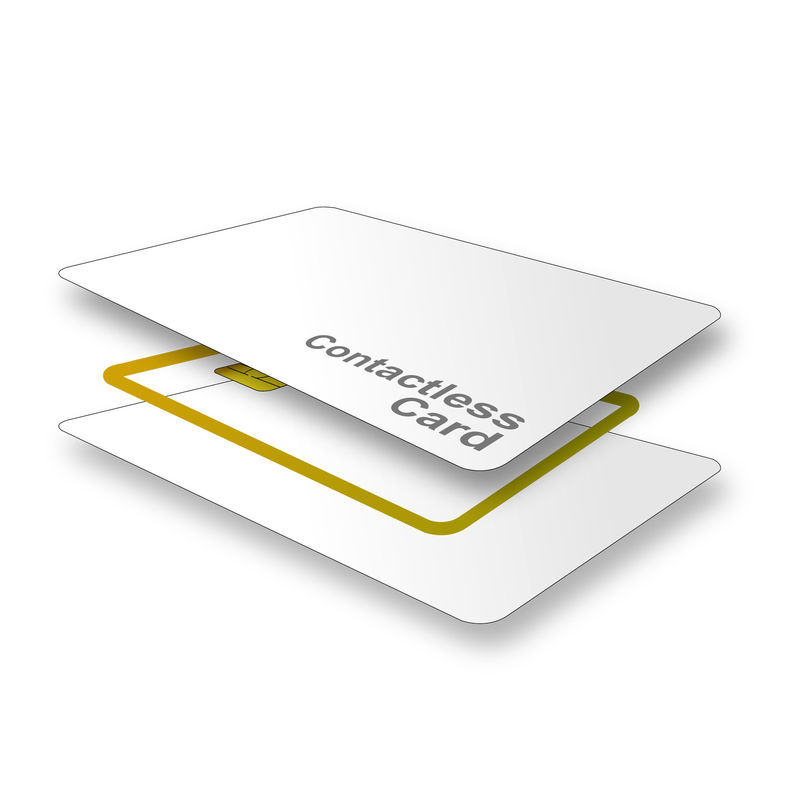

ID card EM4200 Blank Proximity 125khz Cards

The EM4200 is a CMOS integrated circuit designed for electronic Read Only RF transponders, serving as a seamless replacement for EM Microelectronic-Marin Read Only ICs EM4100/4102 and EM4005/4105.

The circuit is powered by an external coil in an electromagnetic field, deriving its master clock from the same field. Through modulation current control, the chip transmits its unique factory-programmed laser ROM code.

• Fully compatible with EM4100/4102 and EM4005/4105 communication protocols
• 128-bit laser programmed ROM (64 and 96-bit options available)
• Multiple data rate and encoding options:
  • Manchester 32 and 64 RF clocks per bit
  • Biphase 32 and 64 RF clocks per bit
  • PSK 16 RF clocks per bit (subcarrier RF/2)
  • FSK2 50 RF clocks per bit
• Integrated resonant capacitor options (0pF, 75pF or 250pF mask option)
• 100 to 150 kHz frequency range
• On-chip rectifier and voltage limiter
• No external supply buffer capacitor needed
• Operating temperature range: -40°C to +85°C
• Low power consumption with high performance
