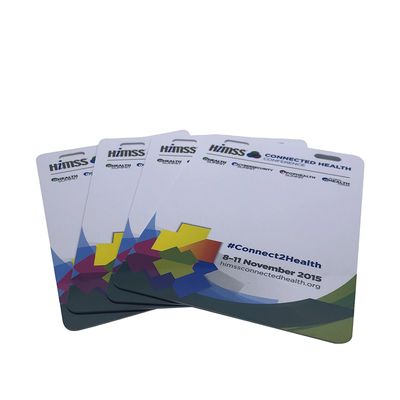

2048 Byte Memory RFID Bank Card ISO1443A Plastic RFID Card With MF3D(H)X3 Chip
Product Specifications
| Product Name |
® EV3 2K/4K/8K |
| Frequency |
13.56 MHz |
| Available Crafts |
Magnetic stripe, Scratch panel, Serial number, Hole punch, Barcode |
| Material |
PVC, ABS, PET |
| Surface |
Glossy or matt, customized |
| Chip |
RFID EV3 2K |
| Memory |
2048 Byte |
| Printing |
Offset Printing, Custom Logo Printing |
| Application |
Promotion, Access Control System |
Product Description
MIFERE® 8K EV3 RFID Smart Card with MF3D(H)X3 chip is designed for banking cards or electronic passports. Compliant with ISO/IEC 14443A standards, it supports optional ISO/IEC 7816-4 commands and is fully interoperable with existing NFC readers.
Key Features
- On-chip backup management system with mutual three-pass authentication
- Supports multiple applications with up to 32 files per application
- Automatic anti-tear mechanism for transaction-oriented data integrity
- 3DES or AES hardware cryptographic engine for data security
Technical Parameters
| IC Type |
® EV3 2K/4K/8K |
| Frequency |
13.56MHz |
| Memory |
2048byte |
| Data Conservation |
10 years |
| Standard |
ISO1443A |
| Operating Distance |
Up to 100mm (dependent on security module, antenna and environment) |
| Anticollision |
Yes |
| Applications |
Access control, Time attendance, public transport, cashless payment etc. |
Special Features
Transaction-oriented automatic anti-tear mechanism with new transaction timer support
Configurable ATS information for card personalization

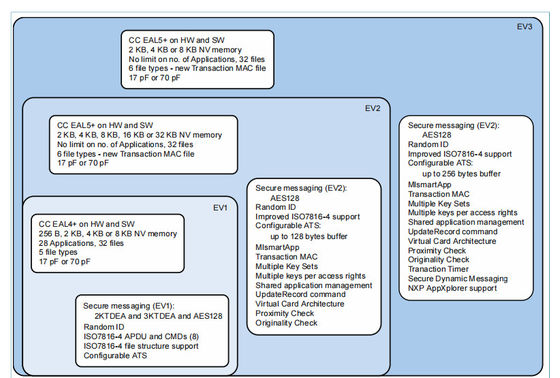

Backward compatibility mode to MIFERE EV2, EV1 and D40 (MF3ICD40)
Secure Unique NFC (SUN) enabled by Secure Dynamic Messaging (SDM)
NFC Forum Type 4 Tag certified (Certificate ID. 58652)
Optional high input capacitance (70 pF) for small form factor designs
Physical Specifications
| Material |
PVC/PET/PP |
| Dimensions |
ISO CR80 standard (85.5mm x 54mm) or customized |
| Thickness |
0.8-0.84mm |
| Weight Per Card |
6 grams |
| Temperature Range |
-25~50°C |
| Minimum Order Quantity |
1000pcs |
| Read Times |
>100,000 |
Personalization Options
We offer various personalization options including offset printing with CMYK or Pantone colors, magnetic stripe encoding, serial number printing, signature panels, barcode printing, photo personalization, chip encoding, holograms, UV printing, laser engraving, and embossing.
Applications
These smart cards are ideal for public transportation, event ticketing, loyalty systems, NFC applications (hotel key cards, prepaid phone cards), enterprise solutions, banking, insurance, supermarket, parking, school, library management, access control, asset management, and time attendance systems.
PVC Card Handling Notice
- Keep away from water and moisture
- Keep away from direct sunlight
- Store horizontally
- Keep airproofed, do not open before usage
Company Capabilities
We specialize in providing high-quality RFID products including inlays, labels, on-metal tags, laundry tags, jewelry tags, paper tickets, tokens, and wristbands. We offer custom printing options and various packaging solutions to meet your specific requirements.
