PVC RFID Prelam Inlay HF Operating Frequency For Position Identification
Product Specifications
| Attribute | Value |
| Material | PVC prelams |
| Frequency | 13.56MHZ |
| Color | White blank |
Product Description
RFID prelams HF Inlay 100kHz - 150KHz frequency adjustment for Position Identification

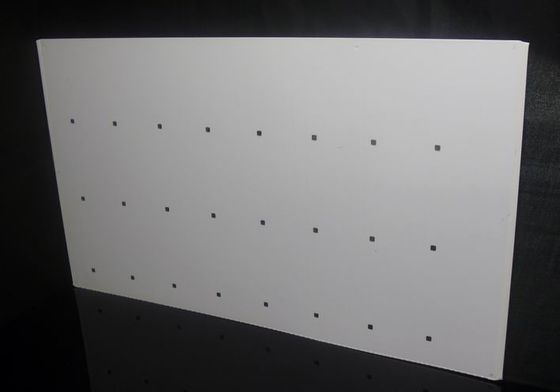

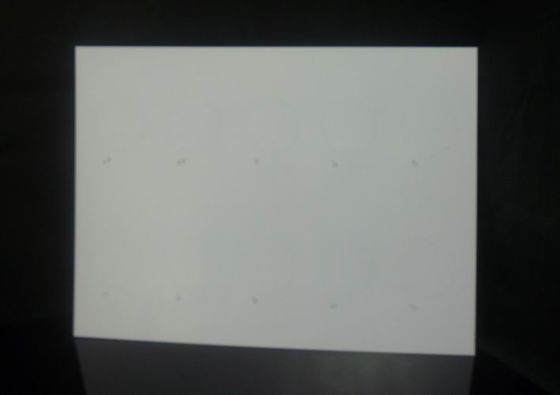

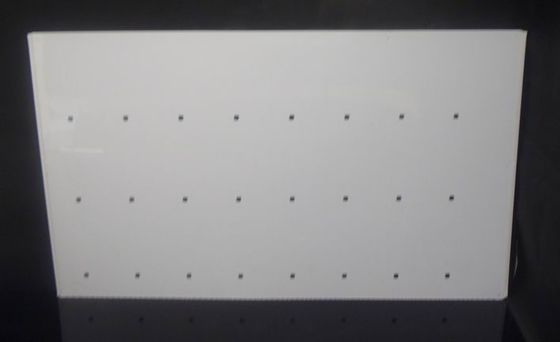

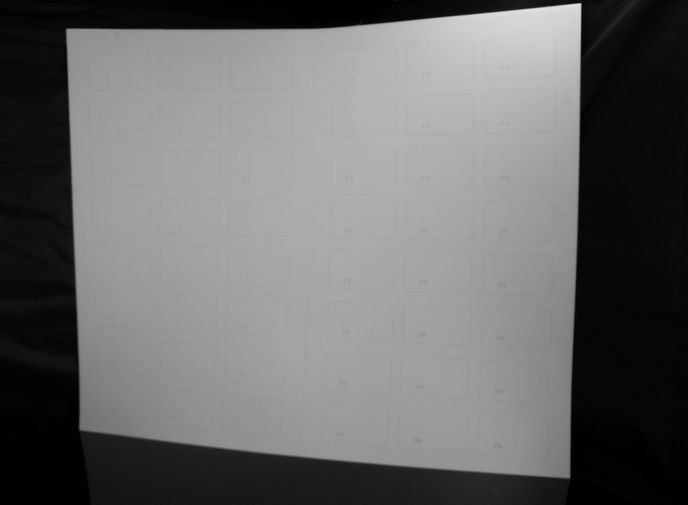

Laminated PVC or PETG sheet containing a RFID module and antenna.
Mechanical Dimensions
- LF operating frequency (125 kHz)
- Sheet size: Maximum 600mm x 700mm
- Thickness: 0.47 mm ±0.03mm*
- HF operating frequency (13.56 Mhz)
- Sheet size: Maximum 600mm x 700mm
- Thickness: 0.47mm ±0.03mm*
Chip Type
EM series, Atmel series, Infineon series
Electrical
- LF operating frequency: 125 kHz** ±6kHz
- HP operating frequency: 13.56MHz Reader Standard (ISO/IEC 15693, ISO/IEC 14443)
Vicat
- PVC: Vicat 72°C
- PETG: Vicat -60°C
Material
Cooper wire antenna and module with white matt PVC or PETG sheet
Options
- 0.48 mm thickness for 125kHz
- < 0.48 mm thickness for 13.56MHz
- Oval or round antenna
- Customer specific layout
Type Number
PLM-XX (Pre-laminated Inlay, XX denotes IC)
* module area and blank area has a < 0.05mm thickness difference.
* frequency adjustment 100kHz - 150KHz
RFID has already been applied successfully in the following areas:
- Payment Systems
- Container Logistics
- Goods and Inventory Management
- Position Identification
- Animal Identification
- Access Systems
- Security Systems
Smart Card Parameters
| Parameter | Specification |
| Material | PVC/PET/PP |
| Dimensions | ISO CR80 standard(85.5mm x 54mm) or customized/85.5*54*mm as credit card or customized size or in irregular shape |
| Thickness | 0.8-0.84mm |
| Weight Per Card | 6 grams |
| Temperature | -25~50°C |
| Minimum QTY | 1000pcs |
| Read Times | >100,000 |
| Available Craft | 4 color offset printing, magnetic stripe, embossing number, signature panel, photo, barcode, thermal printing, gold/silver color scratch-off, series number punch, hole punched, UV printing, etc. |
| Surface | Overlay laminated into glossy, or matt or frosted |
Additional Information
- Price term: we accept FOB/CNP/CIF
- Payment term: paid by T/T or Western Union
- Lead time: 5-7 days after checking the payment
- Delivery way: by express delivery or by sea or by air
- Sample supply: free samples are available upon request
PVC Card Notice
- Keep away from water and moisture
- Keep away from direct sunlight
- Keep horizontally
- Keep airproofed, no opening before usage
Smart Card Personalization Support
We offer various personalization options including:
- Offset Printing with CMYK or Pantone colors
- Silk-screen printing with metallic silver effect
- Magnetic Stripe HiCo2750, HiCo4000 or LoCo300
- Serial Number or UID number printing
- Signature Panel
- Barcode printing in different types
- Photo personalization
- Chip encoding
- Hologram
- UV printing
- Laser Logo
- Laser Serial Number
- Embossing Number
- Thermal Transfer Number
Applications
Public transportation/event ticketing/loyalty system/NFC application (Hotel Key Card, Prepaid Phone Card)/Enterprises, bank, traffic, insurance, super marketing, parking, school, library management, access control etc. (Door Access Control)/Asset Management/time attendance
Healthy card, pre-printed card can do according to your request. Hybrid smart card can be made according to your request. Shipping, packing way can according to your request. Your inquiry is highly appreciated!
Company Capacity
At RFIDandCARD, we always focus on providing end users and distributors with better products, faster delivery and more favorable prices. We offer products such as Inlay, Label, On-Metal Tag, Laundry Tag, Jewelry Tag, paper Ticket, Token, and Wristband etc. Also we can offer custom printed, roll, fanfold, sheet, digital and stock labels, inlay or tags. Our commitment is to meet your most demanding Tag needs.
Frequently Asked Questions
1. How to order?
- Client supply the requirement details & vector artwork
- Quotation
- Order is confirmed
- We send client the PI and artwork proof
- PI and artwork proof are confirmed by client, then do the payment
- Start production once the payment is confirmed
- QC
- Delivery by DHL/UPS/Fedex/TNT, or by Sea, or by Air
2. Can we get free samples?
Yes, we offer free samples, with shipping and taxes paid by the buyer.
3. What is the minimum order quantity?
The MOQ for dry inlays is 1000pcs, for wet inlays or labels is 1000pcs, for other special tags is 1000pcs, for cards is 1000pcs.
4. What is the lead time?
7-10 days below 20,000pcs after T/T payment, for other products please contact us for details.
5. What is the payment term?
The payment term is T/T, PayPal, Western Union before shipment.
6. What chip inside of your product?
As your request, normally SLE6636/36E original. You can choose ISSI chip series, SLE chip series, 24C chip series and AT88SC chip series etc.
7. After-sale service:
- All products will have been strictly quality checked in house before packing
- All products will be well packed before shipping
- All our products have 1 year warranty. And we ensure the product will be free from maintenance within warranty period
