Name: Custom High Frequency Inlay RFID Tag NFC Writable Tags 1-3cm Reading Range
Brand: White Smart Co., Limited
Availability: InStock

Home Products HF RFID Inlay

Custom High Frequency Inlay RFID Tag NFC Writable Tags 1-3cm Reading Range

Product Details:

Place of Origin:	CHINA
Brand Name:	WS
Certification:	ROHS,REACH,POPS

Payment & Shipping Terms:

Minimum Order Quantity:	200-500pcs
Price:	Please contact us
Packaging Details:	2,000pcs/roll,5,000pcs/roll
Delivery Time:	5-7days
Supply Ability:	1,000,000pcs per month

Contact Now

Detailed Product Description

Material:	PET	Chip:	213
RFID:	NFC	Frequency:	13.56MHZ
Reading Range:	1-3CM	Antenna:	Etched Antenna
Highlight:	Custom NFC Writable Tags , High Frequency Inlay RFID Tag , NFC Writable Tags 13.56MHZ

Custom High Frequency Inlay RFID Tag NFC Writable Tags

Product Specifications

Attribute	Value
Material	PET
Chip	213
RFID	NFC
Frequency	13.56MHZ
Reading Range	1-3CM
Antenna	Etched antenna

Technical Details

Frequency	HF 13.56MHz
Inlay Size	Dia 21mm
Wet Inlay Size	Dia 25mm
Chip	NFC
Memory	144/504/888bytes
Antenna	Aluminium etching antenna
Bonding	Flip chip
Unwinding	Chip side up
Thickness	0.07mm
Reading Distance	1.5~3cm (depends on reader applied)
Operation Temp.	-20°C~+65°C
Storage Temp.	-25°C~+65°C
Date Storage	≥10 years
Packing	10,00pcs/roll each roll in a inner case, 4 rolls per master ctn

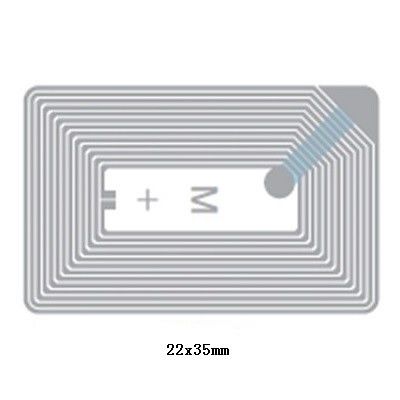

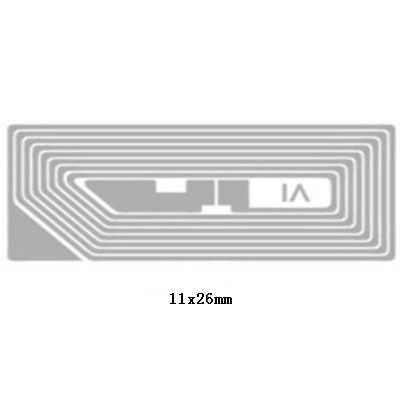

Product Images

Handling Instructions

Inlays with ink marks are defective and should not be used
RFID Inlays or labels are sensitive products - avoid bending or stretching
Static-free bags are used for packing; maintain minimal environmental static charge

Important Notice: All products should be thoroughly tested by the customer to ensure they meet specific requirements. We do not guarantee fitness for any particular purpose.

Note: Product images are for reference only. All intellectual property rights related to trademarks belong to their respective owners. Specifications subject to change without notice.
