13.56MHZ UHF Wet Inlay RFID Tag Dia 25mm For Paper Card / Key Fob / Wristband

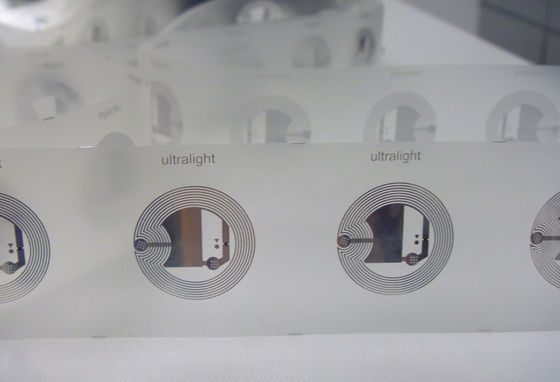

HF RFID Inlay Dia 25mm wet inlay PET material for paper card / key fob / wristband

• Inlays with ink marks are defective, do not use.
• RFID Inlays or labels are sensitive product, do not bend or stretch
• Static-free bag will be use for packing; always keep environmental static charge to a minimum.
• InlaySolution reserves the right to modify, change, supplement or discontinue product offerings at any time without notice
• All products from Unico Solution should be tested by the customer/user thoroughly to ensure the product meets the particular requirements. Unico Solution does not represent that this product is fit for any particular purpose or use.

• Contactless transmission of data and supply energy (no battery needed)
• Operating distance: up to 1.5 m (depending on antenna geometry)
• Operating frequency: 13.56 MHz (ISM, world-wide licence free available)
• Fast data transfer: up to 53kbit/s
• High data integrity: 16 Bit CRC, framing
• True anticollision
• Electronic Article Surveillance (EAS)
• Application Family Identifier (AFI) supported
• Data Storage Format Identifier (DSFID)
• Additional fast anticollision read
• Write distance equal to read distance

• 1024 bits, organised in 32 blocks of 4 byte each
• Data retention of 10 years
• Write endurance 100.000 cycles

• Unique identifier for each device
• Lock mechanism for each user memory block (write protection)
• Lock mechanism for DSFID, AFI, EAS

We always focused on providing to end users and distributors with the better products, faster delivery and more favorable price. We offer products as Inlay, Label, On-Metal Tag, Laundry Tag, Jewelry Tag, paper Ticket, Token, and Wristband etc. Also we can offer custom printed, roll, fanfold, sheet, digital and stock labels, inlay or tags. Our commitment is to meet your most demanding Tag needs.

Qty/Roll (Actual Qty as per Shipping Mark): 12,800±300pcs/roll; 1roll/carton

Packaging:

• Use two lines of 25mm interleaf to protect IC and antenna.
• Keep away from water, collision and static.
• Delivery with the package of static-free bag.
