Name: PVC RFID Inlay Sheet 13.56MHZ HF Contactless RFID Prelam For PVC Card
Brand: White Smart Co., Limited
Availability: InStock

Home Products HF RFID Inlay

PVC RFID Inlay Sheet 13.56MHZ HF Contactless RFID Prelam For PVC Card

Product Details:

Place of Origin:	CHINA
Brand Name:	WS
Certification:	ROHS,REACH,POPS

Payment & Shipping Terms:

Minimum Order Quantity:	200-500pcs
Price:	Please contact us
Delivery Time:	5-7days
Payment Terms:	TT,PAYPAL,WU
Supply Ability:	1,000,000

Contact Now

Detailed Product Description

Product Name:	Prelams	Printing Type:	Offset/Screen Printing/digital Printing,custom
Material:	PVC	Individualization:	Custom, Embossing Or Print Name, Number,date Etc
Application:	Club,advertisement,traffic,supermarket,parking,bank, Government	Dimension:	Customized
Size:	2X5,3X7,3X8,5X5	Name:	Prelam.inlay
Surface:	Matt,glossy	Original:	China
Highlight:	RFID Inlay Sheet 13.56MHZ , PVC Card RFID Inlay Sheet , Contactless RFID Prelam

PVC RFID Inlay Sheet 13.56MHZ HF Contactless RFID Prelam For PVC Card

Product Specifications

Product Name	Prelams
Printing Type	Offset/Screen Printing/Digital Printing, Custom
Material	PVC
Individualization	Custom, embossing or print name, number, date etc
Application	Club, Advertisement, Traffic, Supermarket, Parking, Bank, Government
Dimension	Customized
Size Options	2X5, 3X7, 3X8, 5X5
Surface Finish	Matt, Glossy
Origin	China

Product Description

HF Contactless Prelam Inlay Sheet for PVC Card or Smart Card Inlay, designed for door access control systems and other RFID applications.

RFID System Components

A scanning antenna
A transceiver with decoder to interpret data
A transponder (RFID smart card) programmed with information

Features

Working Frequency: 125KHZ, 13.56MHZ
Chip type: EM4200, RFID series
Material: PVC, PET

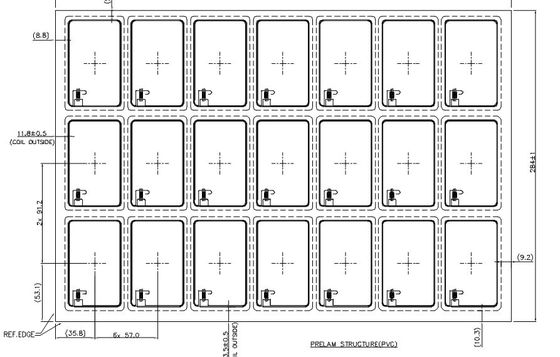

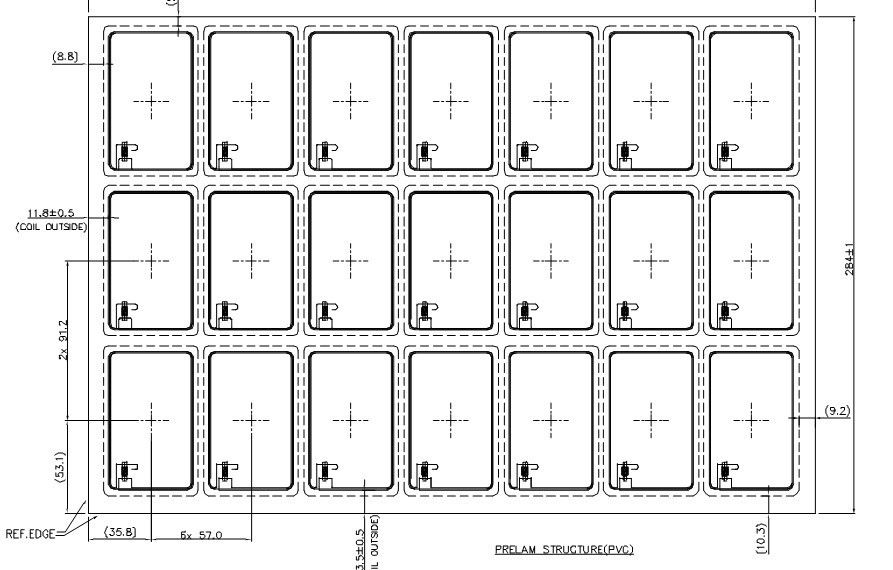

Inlay Format: 2*4, 2*5, 5*5, 3*6, 3*7, 3*8, 4*8, 4*10, etc
Thickness: 0.45± 0.02(FCP), 0.52± 0.02mm (W/B), etc.

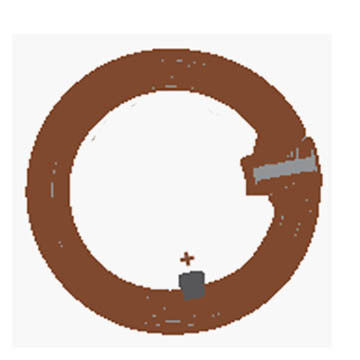

Antenna: Copper Antenna

Performance Specifications

Reading Distance: 1-15cm
Data Storage Time: 10 years
Operating Temperature: -20°C to +75°C
Storage Temperature: -20°C to +80°C
Inlays per roll: 5,000

Applications

Smart card, RFID card, contactless card, contact-free card, door access control card, attendance card and parking card.

Customization Options

Common inlay sizes include 305mmx460mm, 320mmx464mm, 300mmx480mm, 390mmx480mm, 500mmx650mm. Thickness can be 0.35~0.60mm. We use etched antenna or ultrasonic automatic submerged line coil production processes, with internal coil arrangement customizable to requirements. Surface printing of date, logo, etc. available, with wireframe printing option. Final size can be customized.

Handling Instructions

Inlays with ink marks are defective and should not be used
RFID Inlays are sensitive products - avoid bending or stretching
Static-free bags used for packing; maintain minimal environmental static charge
Products should be thoroughly tested by customer to ensure suitability

EM4200 Chip Specifications

Fully compatible with EM4100/4102 and EM4005/4105 protocols
128 bit laser programmed ROM (64 and 96 bit options available)
Multiple data rate and encoding options: Manchester, Biphase, PSK and FSK
Integrated resonant capacitor options (75pF, 210pF or 250pF)
100 to 150 kHz frequency range
On-chip rectifier and voltage limiter
Operating temperature range: -40°C to +85°C

Company Capabilities

We specialize in providing high-quality RFID products including Inlays, Labels, On-Metal Tags, Laundry Tags, Jewelry Tags, Paper Tickets, Tokens, and Wristbands. Custom printing options available in roll, fanfold, sheet, digital and stock formats.
