Name: 203 Chip Waterproof NFC Sticker Label For Restaurant And Smart Home Using
Brand: White Smart Co., Limited
SKU: micro nfc tag
Availability: InStock

Home Products NFC Sticker

203 Chip Waterproof NFC Sticker Label For Restaurant And Smart Home Using

Product Details:

Place of Origin:	CHINA
Brand Name:	WS
Certification:	ROHS,REACH,POPS
Model Number:	micro nfc tag

Payment & Shipping Terms:

Minimum Order Quantity:	200-500pcs
Price:	Please contact us
Packaging Details:	2000pcs/roll,8000pcs/carton
Delivery Time:	5-7days
Payment Terms:	T/T,Paypal,WU
Supply Ability:	1,000,000pcs per month

Contact Now

Detailed Product Description

Product Name:	NFC Label Stickers	Substrate Material:	PET PVC
Chip:	203	High Data Integrity:	16-bit CRC, Parity, Bit Coding, Bit Counting
Fast Data Transfer:	106 Kbit/s	Operating Frequency:	13.56MHZ
Highlight:	203 Chip NFC Tag Sticker , 203 Chip NFC Sticker Label , Waterproof NFC Label For Restaurant

203 Chip Waterproof NFC Sticker Label For Restaurant And Smart Home Using

Product Specifications

Attribute	Value
Product Name	NFC label stickers
Substrate Material	PET PVC
Chip	203
High data integrity	16-bit CRC, parity, bit coding, bit counting
Fast data transfer	106 kbit/s
Operating frequency	13.56MHZ

Product Description

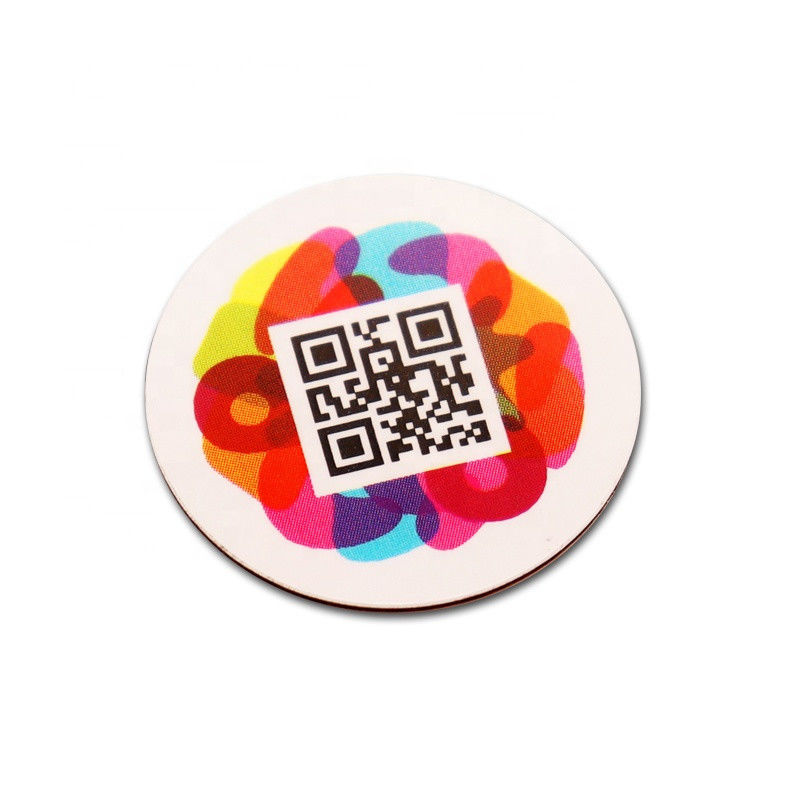

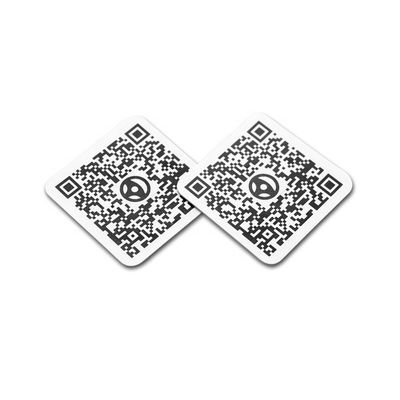

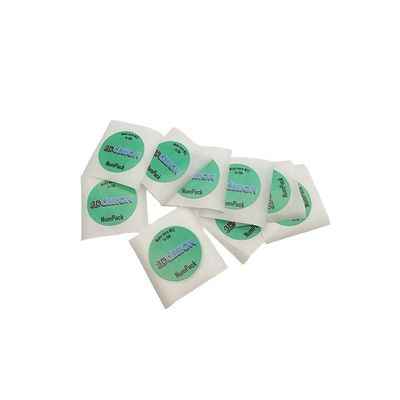

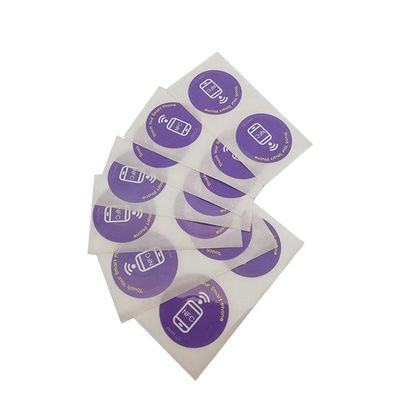

Micro waterproof NFC smart label stickers designed for restaurant and smart home applications. These NFC posters are an excellent way to increase social media engagement and gain followers on platforms like Facebook, Twitter, and Instagram.

RF Interface (ISO/IEC 14443A)

Contactless transmission of data and supply energy (no battery needed)
Operating distance: up to 100 mm (depending on field strength and antenna geometry)
Operating frequency: 13.56 MHz
Fast data transfer: 106 kbit/s
High data integrity: 16-bit CRC, parity, bit coding, bit counting
True anticollision
7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)

Quick Details

Chip: 213/215/216

Antenna Material: Aluminum

Substrate Material: PET PVC

Antenna Thickness: 0.03mm

Substrate Thickness: 0.03mm

Frequency: 14.0+/-0.5MHz

Reading Distance: 0-10CM

Environmental Parameters

Ideal Storage Temp: +15℃～+25℃, 20%RH～45%RH
Tolerant Storage Environment: -25℃～+50℃, 20%RH～90%RH
Tolerant Working Environment: -25℃～+65℃, 20%RH～90%RH
Withstand voltage: ≦5N/m㎡

Available Standard Sizes

Other sizes can be customized upon request

Size (mm)	Size (mm)
44x24 R2	diameter 30
50X45 R3	40
60X30 R2	25
74X21 R2	28
50X50 R2
47X27 R3
109X10 R2
36X22 R2
100X14 R5
85X54 R3
55X20 R2
42x26 R2
100X100 R4
56X18
15X30
41X25
35X18
45X45
16X50
12.7X73
101X25
51x51
