Name: Contactless Transmission Electronic NFC Sticker TYPE 2 NFC Forum Tag Label
Brand: White Smart Co., Limited
Availability: InStock

Home Products NFC Sticker

Contactless Transmission Electronic NFC Sticker TYPE 2 NFC Forum Tag Label

Product Details:

Place of Origin:	CHINA
Brand Name:	White Smart
Certification:	ROHS,REACH,POPS

Payment & Shipping Terms:

Minimum Order Quantity:	1,000PCS
Price:	Please contact us
Delivery Time:	5-7days
Payment Terms:	TT,PAYPAL,WU
Supply Ability:	1,000,000pcs per month

Contact Now Chat Now

Detailed Product Description

Material:	PET	Chip:	213
RFID:	NFC	Frequency:	13.56MHZ
Reading Range:	1-3CM	Antenna:	Etched Antenna
Highlight:	TYPE 2 NFC Tag Sticker , Contactless Transmission Electronic NFC Sticker , TYPE 2 NFC Forum Tag

Contactless Transmission Electronic NFC Sticker TYPE 2 NFC Forum Tag Label

Product Specifications

Attribute	Value
Material	PET
Chip	213
RFID	NFC
Frequency	13.56MHZ
Reading Range	1-3CM
Antenna	Etched Antenna

Detailed Technical Specifications

Frequency	HF 13.56MHz
Inlay Size	Dia 21mm
Wet Inlay Size	Dia 25mm
Chip	NFC
Memory	144/504/888bytes
Antenna	Aluminium etching antenna
Bonding	Flip chip
Unwinding	Chip side up
Thickness	0.07mm
Reading Distance	1.5~3cm (depends on reader applied)
Operation Temp.	-20°C~+65°C
Storage Temp.	-25°C~+65°C
Date Storage	≥10 years
Packing	10,00pcs/roll each roll in a inner case, 4 rolls per master ctn
Samples	Upon request

Product Features

Contactless transmission of data and supply energy
Operating frequency of 13.56 MHz
Data transfer of 106 kbit/s
Data integrity of 16-bit CRC, parity, bit coding, bit counting
Operating distance up to 100 mm (depending on various parameters)
7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
UID ASCII mirror for automatic serialization of NDEF messages
Automatic NFC counter triggered at read command
NFC counter ASCII mirror for automatic adding the NFC counter value
ECC based originality signature
Fast read command
True anticollision
50 pF input capacitance

EEPROM Specifications

180, 540 or 924 bytes organized in 45, 135 or 231 pages with 4 bytes per page
144, 504 or 888 bytes freely available user Read/Write area (36, 126 or 222 pages)
4 bytes initialized capability container with one time programmable access bits
Field programmable read-only locking function per page for the first 16 pages
Configurable password protection with optional limit of unsuccessful attempts
Anti-tearing support for capability container (CC) and lock bits
ECC supported originality check
Data retention time of 10 years
Write endurance 100.000 cycles

Handling Instructions

Inlays with ink marks are defective, do not use
RFID Inlays or labels are sensitive product, do not bend or stretch
Static-free bag will be use for packing; always keep environmental static charge to a minimum

Note: All products should be tested by the customer/user thoroughly to ensure the product meets the particular requirements. The manufacturer does not represent that this product is fit for any particular purpose or use.

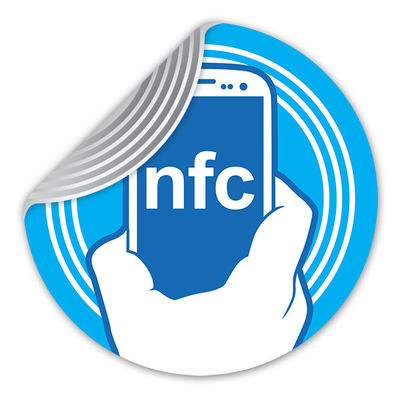

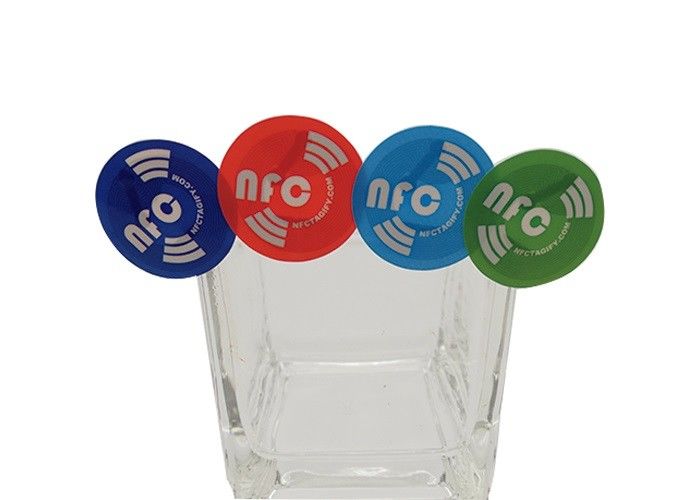

Product Images

Disclaimer: The showing picture is only for reference of our product. All related to intellectual property rights of trademark belong to trademark company.
