Name: 215 213 Chip Rewritable Passive NFC Tag Roll 0.07mm Thickness 13.56mhz
Brand: White Smart Co., Limited
Availability: InStock

215 213 Chip Rewritable Passive NFC Tag Roll 0.07mm Thickness 13.56mhz

Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Material:	PET	Chip:	213
RFID:	NFC	Frequency:	13.56 MHz
Reading Range:	1-3CM	Antenna:	Etched Antenna
Material:	Thermal Paper,coated Paper,Paper /PVC /PET /anti-metal Material	Size:	Customizable
Printing:	Full Color,UV,CMYK Costomized Printing	Chip:	213/215/216
Application:	Access Control,Mobile Payment,etc,Glasses Retail/Warehouse Management	Sample:	Free Sample's Available
Thickness:	0.25+/-0.04mm,Customized	Memory:	384 Bits,504 Byte,1KB,144byte,888 Byte
Highlight:	Rewritable Passive NFC Tag Roll , 0.07mm Thickness Rewritable NFC Tags , 215 Chip NFC Tag Roll

215 213 Chip Rewritable Passive NFC Tag Roll 0.07mm Thickness 13.56mhz

Product Specifications

Attribute	Value
Material	PET
Chip	213
RFID	NFC
Frequency	13.56 MHz
Reading Range	1-3CM
Antenna	Etched antenna
Compatible Materials	Thermal paper, coated paper, Paper/PVC/PET/anti-metal material
Size	Customizable
Printing Options	Full color, UV, CMYK customized printing
Available Chips	213/215/216
Applications	Access control, Mobile payment, Glasses Retail, Warehouse Management
Samples	Free samples available
Thickness	0.25±0.04mm (Customizable)
Memory	384 bits, 504 Byte, 1KB, 144byte, 888 Byte

Product Description

Free Samples 13.56mhz Passive RFID 213/215 NFC Label Sticker Tag with Rewritable Capability

Frequency	HF 13.56MHz
Inlay Size	Dia 21mm
Wet Inlay Size	Dia 25mm
Chip	NFC
Memory	144/504/888bytes
Antenna	Aluminium etching antenna
Bonding	Flip chip
Unwinding	Chip side up
Thickness	0.07mm
Reading Distance	1.5~3cm (depends on reader applied)
Operation Temp.	-20°C~+65°C
Storage Temp.	-25°C~+65°C
Data Storage	≥10 years
Packing	10,000pcs/roll each roll in an inner case, 4 rolls per master carton

Handling Instructions

Inlays with ink marks are defective and should not be used
RFID Inlays or labels are sensitive products - avoid bending or stretching
Static-free bags used for packing; maintain minimum environmental static charge
Products should be thoroughly tested by customer to ensure they meet requirements

213 Chip Features

Contactless transmission of data and energy supply
Operating frequency of 13.56 MHz
Data transfer rate of 106 kbit/s
Data integrity with 16-bit CRC, parity, bit coding, bit counting
Operating distance up to 100 mm (depending on field strength and antenna geometry)
7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
UID ASCII mirror for automatic serialization of NDEF messages
Automatic NFC counter triggered at read command
ECC based originality signature
Fast read command and true anticollision
50 pF input capacitance

EEPROM Specifications

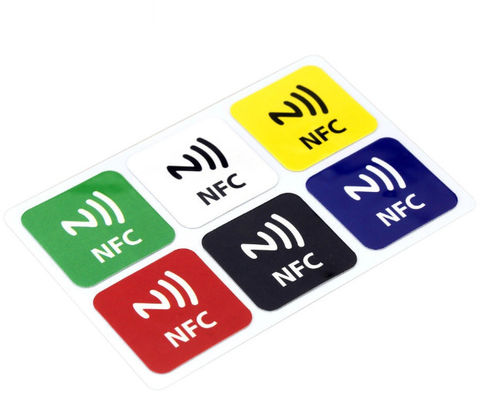

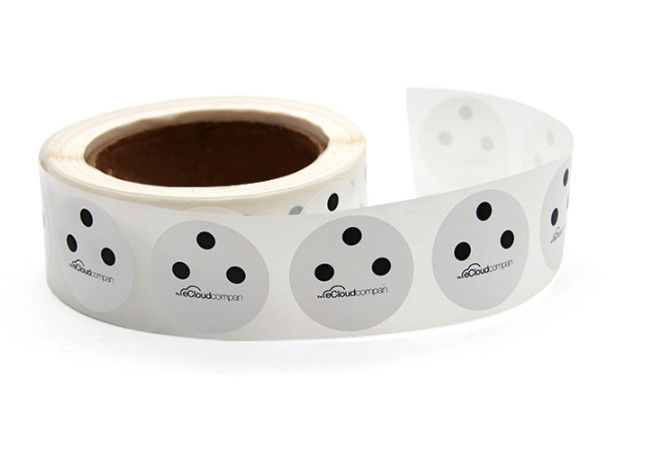

Product Images

Our Advantages

Premium materials sourced from national ID card suppliers - safe and eco-friendly PVC
Anti-scratch surface with overlay protection film for enhanced durability
State-of-the-art printing with Germany Heidelberg four-color printer for superior quality

Design and Technical Support

Design services: Provide your vector files or ideas - our 10-member design team creates customized solutions
Technical support: Send original card and software details - our team can encode compatible cards
