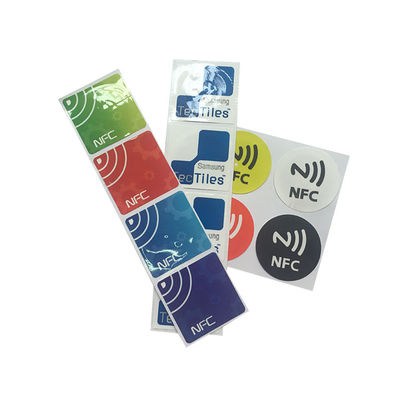

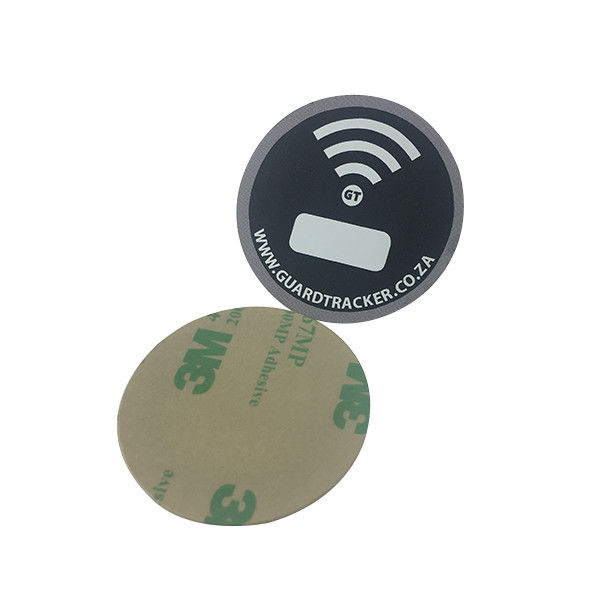

Mobile Payment Printed NFC Sticker Tag 13.56MHz 215 Chip ISO14443A Protocol

Mobile Payment 13.56MHz Printable Paper NFC Tag 215 Sticker

• Long read range due to high chip sensitivity
• Ease of tag assembly due to high chip input capacitance
• Consistent performance on different materials
• Reliable operation in multi-reader environment
• Prevention of unauthorized memory access due to read protection
• Wide temperature range: -40°C up to +85°C

• Contactless transmission of data and supply energy
• Operating distance up to 100 mm depending on antenna geometry and reader configuration
• Operating frequency of 13.56 MHz
• Data transfer of 106 kbit/s
• Data integrity of 16-bit CRC, parity, bit coding, bit counting
• True anticollision
• 7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)
• Typical ticketing transaction: < 35 ms
• Fast counter transaction: < 10 ms

• 640-bit or 1312-bit, organized in 20 or 41 pages with 4 bytes per page
• First 512 bits compatible to MF0ICU1
• Field programmable read-only locking function per page for the first 512 bits
• Field programmable read-only locking function per 2 pages above page 15
• 32-bit user definable One-Time Programmable (OTP) area
• 384-bit or 1024-bit freely available user Read/Write area (12 or 32 pages)
• 3 independent, true one-way 24-bit counters on top of the user area
• Anti-tearing support for counters, OTP area and lock bits
• Configurable password protection with optional limit of unsuccessful attempts
• ECC based originality signature
• Data retention time of 10 years
• Write endurance 100.000 cycles
• Write endurance for one-way counters 1.000.000 cycles

We are committed to providing end users and distributors with superior products, faster delivery, and competitive pricing. Our product range includes Inlay, Label, On-Metal Tag, Laundry Tag, Jewelry Tag, Paper Ticket, Token, and Wristband solutions. We offer custom printing options in various formats including roll, fanfold, sheet, digital and stock labels, inlay or tags, tailored to meet your most demanding RFID needs.
