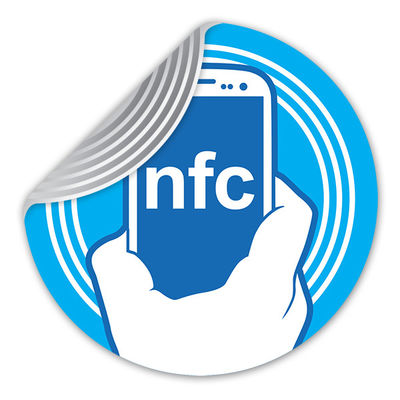

Name: PET Material RFID NFC Forum Tag TYPE 2 Electronic NFC Label 13.56MHZ Frequency
Brand: White Smart Co., Limited
Availability: InStock

Home Products NFC Sticker

PET Material RFID NFC Forum Tag TYPE 2 Electronic NFC Label 13.56MHZ Frequency

Product Details:

Place of Origin:	CHINA
Brand Name:	WS
Certification:	ROHS,REACH,POPS

Payment & Shipping Terms:

Minimum Order Quantity:	200-500pcs
Price:	Please contact us
Packaging Details:	2,000pcs/roll,5,000pcs/roll
Delivery Time:	5-7days
Supply Ability:	1,000,000pcs per month

Contact Now

Detailed Product Description

Material:	PET	Chip:	213
RFID:	NFC	Frequency:	13.56MHZ
Reading Range:	1-3CM	Antenna:	Etched Antenna
Highlight:	PET Material NFC Forum Tag , Electronic NFC Label 13.56MHZ Frequency

PET Material RFID NFC Forum Tag TYPE 2 Electronic NFC Label 13.56MHZ Frequency

Product Specifications

Attribute	Value
Material	PET
Chip	213
RFID	NFC
Frequency	13.56MHZ
Reading Range	1-3CM
Antenna	Etched Antenna

Technical Details

Frequency: HF 13.56MHz
Inlay Size: Dia 21mm
Wet Inlay Size: Dia 25mm
Chip: NFC
Memory: 144/504/888bytes
Antenna: Aluminium etching antenna
Bonding: Flip chip
Unwinding: chip side up
Thickness: 0.07mm
Reading Distance: 1.5~3cm (depends on reader applied)
Operation Temp: -20°C~+65°C
Storage Temp: -25°C~+65°C
Data Storage: ≥10 years
Packing: 10,00pcs/roll each roll in a inner case, 4 rolls per master ctn
Samples available upon request

Product Images

Handling Instructions

Inlays with ink marks are defective and should not be used
RFID Inlays or labels are sensitive products - avoid bending or stretching
Static-free bags used for packing; maintain minimal environmental static charge

Note: The displayed images are for reference only. All intellectual property rights of trademarks belong to their respective owners. Products should be thoroughly tested by customers to ensure they meet specific requirements.
