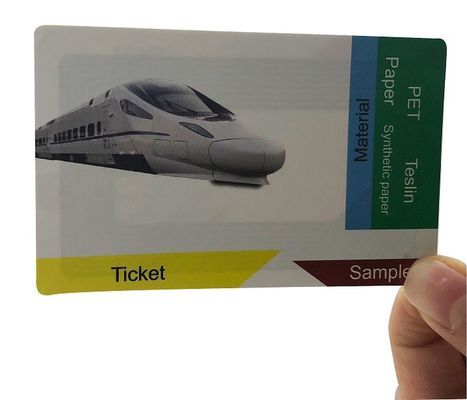

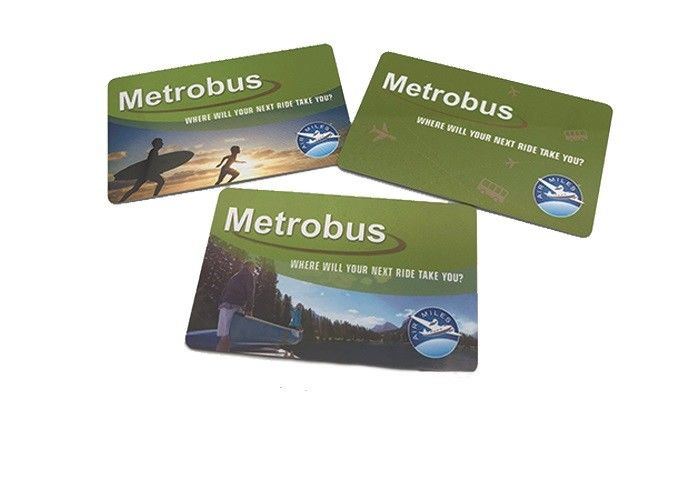

ISO14443A Protocol Printed RFID Paper Ticket , RFID Card Ticket ISO ROHS Approved

RFID HF Paper Card with RFID Ultralight EV1 chip, ISO14443A compliant ticket with printing capability.

• Material: Paper
• Working Environment:
  • Working life: 5-10 years
  • Store temperature: -25°C ~80°C
  • Humidity: 20% ~ 90%RH
  • Working temperature: -40°C~ 70°C
• Reading & Writing distance: 1-3cm for HF (depending on field strength and antenna geometry)
• Application: Ticket

• Long read range due to high chip sensitivity
• Easy tag assembly due to high chip input capacitance
• Consistent performance on different materials
• Reliable operation in multi-reader environment
• Prevention of unauthorized memory access with read protection
• Wide temperature range: -40°C to +85°C

• Contactless transmission of data and supply energy
• Operating distance up to 100 mm depending on antenna geometry
• Operating frequency of 13.56 MHz
• Data transfer of 106 kbit/s
• Data integrity of 16-bit CRC, parity, bit coding, bit counting
• True anticollision
• 7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)
• Typical ticketing transaction: < 35 ms
• Fast counter transaction: < 10 ms

• 640-bit or 1312-bit, organized in 20 or 41 pages with 4 bytes per page
• First 512 bits compatible to MF0ICU1
• Field programmable read-only locking function per page
• 32-bit user definable One-Time Programmable (OTP) area
• 384-bit or 1024-bit freely available user Read/Write area
• 3 independent, true one-way 24-bit counters
• Anti-tearing support for counters, OTP area and lock bits
• Configurable password protection with optional limit of unsuccessful attempts
• ECC based originality signature
• Data retention time of 10 years
• Write endurance 100,000 cycles
• Write endurance for one-way counters 1,000,000 cycles

We specialize in providing high-quality RFID products including Inlay, Label, On-Metal Tag, Laundry Tag, Jewelry Tag, Paper Ticket, Token, and Wristband. Our services include custom printing, roll, fanfold, sheet, digital and stock labels, inlay or tags. We are committed to meeting your most demanding RFID needs with competitive pricing and fast delivery.
