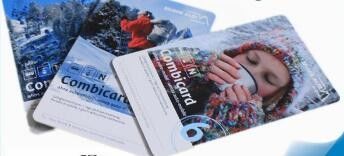

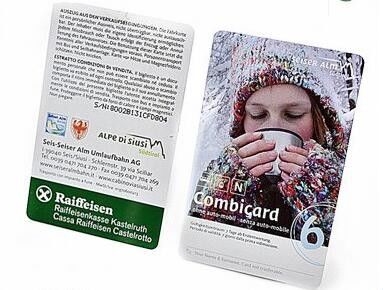

13.5-14.5Mhz HF RFID Paper Card Ticket Waterproof with ISO 14443A ISO 15693 Protocol

RFID NFC Paper Card Custom Printed 13.5-14.5Mhz HF RFID Paper Card Ticket

• Durable & waterproof
• Resistant to high temperature, chemical environments
• Works in harsh environments

• Surface: Matte/Glossy finish
• Housing: Lamination
• Special artworks: Signature panel, magnetic strip, barcode, embossed number, Pearlessence printing, metallic printing, QR code printing
• Chip craft data: Encodable (URL, Number, Text or Name) and chip encryption

• 125Khz: EM4100/em4305, T5577, TK4100, MINI5577, etc.
• 13.56Mhz: 213/215/216, MF classic 1K, MF classic, MF Ultralight, I-Code2
• 860~960Mhz: U CODE gen2, Alien H3/4, Impinj M5/6, etc (not recommended because the tag is close to skin)

• Contactless transmission of data and supply energy
• Operating distance up to 100 mm depending on antenna geometry and reader configuration
• Operating frequency of 13.56 MHz
• Data transfer of 106 kbit/s
• Data integrity of 16-bit CRC, parity, bit coding, bit counting
• True anticollision
• 7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)
• Typical ticketing transaction: < 35 ms
• Fast counter transaction: < 10 ms

• 640-bit or 1312-bit, organized in 20 or 41 pages with 4 bytes per page
• First 512 bits compatible to MF0ICU1
• Field programmable read-only locking function per page for the first 512 bits
• Field programmable read-only locking function per 2 pages above page 15
• 32-bit user definable One-Time Programmable (OTP) area
• 384-bit or 1024-bit freely available user Read/Write area (12 or 32 pages)
• 3 independent, true one-way 24-bit counters on top of the user area
• Anti-tearing support for counters, OTP area and lock bits
• Configurable password protection with optional limit of unsuccessful attempts
• ECC based originality signature
• Data retention time of 10 years
• Write endurance 100,000 cycles
• Write endurance for one-way counters 1,000,000 cycles

We always focus on providing end users and distributors with better products, faster delivery and more favorable prices. We offer products including Inlay, Label, On-Metal Tag, Laundry Tag, Jewelry Tag, paper Ticket, Token, and Wristband etc. We can also offer custom printed, roll, fanfold, sheet, digital and stock labels, inlay or tags. Our commitment is to meet your most demanding Tag needs.
