HF RFID Paper Event Tickets Custom Printed With Ultralight EV1 Chip
Key Specifications
| Place of Origin |
Guangdong, China (Mainland) |
| Material |
Paper |
| Printing |
Offset printing |
| Chip |
Ultralight EV1/S50/F08/NT215/I CODE SL2 |
| Protocol |
Both 14443A/15693 |
| Frequency |
13.5-14.5MHz |
| Application |
Tickets |
| Working Temperature |
-5℃ to 30℃ |
Product Overview

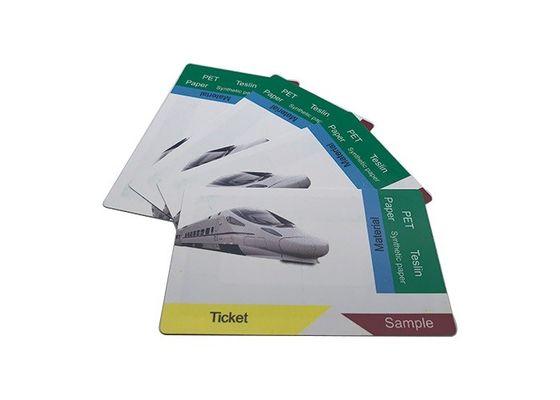

Custom printed 13.5-14.5MHz HF RFID paper tickets designed for durability and performance in various environments.
Technical Specifications
- Material: PVC/Paper
- Size Range: 14*20mm to 170*250mm
- Chip: Ultralight EV1
- Read Distance: 1-10cm
- Reading Cycles: >10,000 times
- Protocol: ISO 14443A / ISO 15693
- Features: Durable, waterproof, resistant to high temperature and chemical environments
- Surface Finish: Matte/Glossy options available
Customization Options
Available customization includes signature panels, magnetic strips, barcodes, embossed numbers, pearlescent printing, metallic printing, QR code printing, and chip encoding with data encryption.
RFID Ultralight EV1 Features
RFID RF Interface (ISO/IEC 14443 A)
- Contactless data transmission and energy supply
- Operating distance up to 100mm
- 13.56MHz operating frequency
- 106 kbit/s data transfer rate
- Advanced data integrity with 16-bit CRC
- True anticollision capability
- 7 byte serial number
- Fast transaction processing: <35ms for ticketing
EEPROM Memory
- 640-bit or 1312-bit capacity
- Field programmable read-only locking
- 32-bit user definable OTP area
- 384-bit or 1024-bit user Read/Write area
- 3 independent 24-bit counters
- Anti-tearing support for critical data
- Configurable password protection
- 10-year data retention
- 100,000 write cycles endurance
Personalization Services
We offer comprehensive personalization including offset printing with CMYK or Pantone colors, silk-screen printing with metallic effects, magnetic stripe application, serial number printing, signature panels, barcode printing, photo personalization, chip encoding, holograms, UV printing, laser engraving, and embossing.
Applications
- Public transportation tickets
- Event ticketing systems
- Loyalty programs
- NFC applications (hotel key cards, prepaid phone cards)
- Access control systems
- Asset management
- Time attendance systems
Custom Solutions
We provide blank or pre-printed cards, hybrid smart cards, and flexible shipping/packaging options tailored to your specific requirements.
Company Capabilities
We specialize in providing high-quality RFID products including inlays, labels, on-metal tags, laundry tags, jewelry tags, paper tickets, tokens, and wristbands. Our custom printing services accommodate various formats including roll, fanfold, sheet, and digital labels to meet your most demanding RFID needs.
