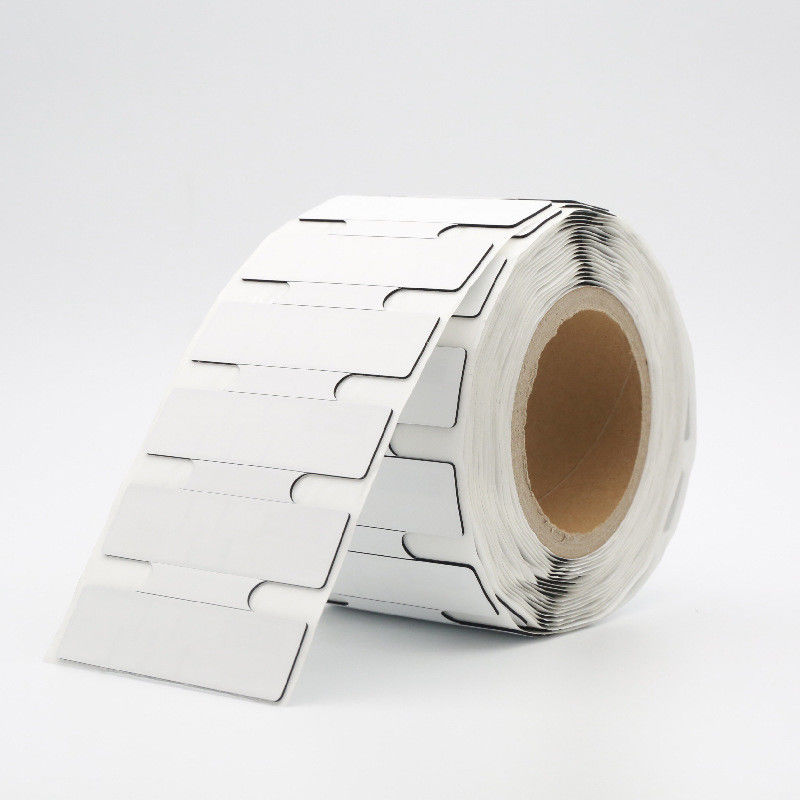

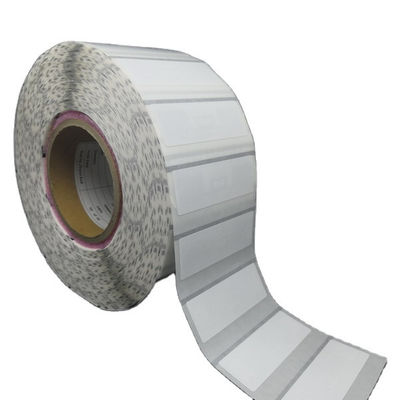

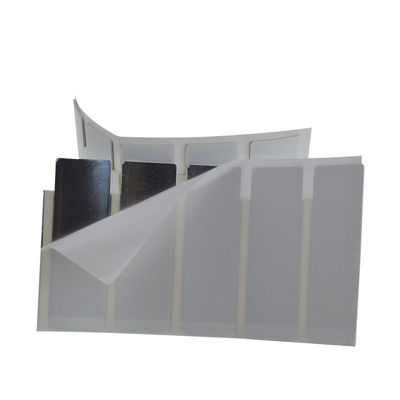

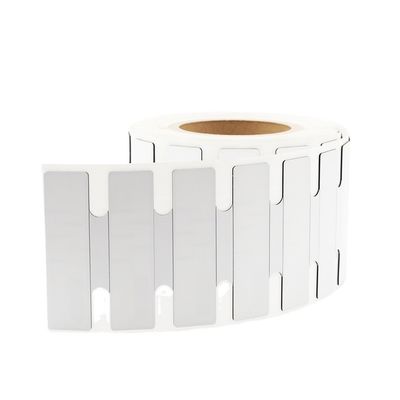

Anti Metal Flexible UHF RFID Tags For Metal Surfaces And IT Asset Tracking
The tag is flexible and can be stuck on metallic assets easily, specially for irregular and uneven surface,such as steel boiler, metal container,steel pipe,etc .It has good performance on metal and can be printed with logo,numbers,text by RFID printers,such as Zebra ZT410 Silverline,Sato CL4NX,Toshiba SX-5,Postek TX3r,etc.Synchronous encoding is also available.
| UHF RFID Tags |
| Physical Features: |
| Model |
|
|
UHF Flexible On-metal Label |
| Material |
PET |
Dimensions |
95*22*1.25mm |
| Working Temp |
-20～+75℃ |
Survival Temp |
-40℃～+100℃ |
| RFID Features: |
| RFID Standard |
EPC C1G2 (ISO18000-6C) |
| Chip Type |
Impinj Monza R6-P |
| User Memory |
32(64)bit |
| EPC Memory |
128(96) bits |
| Max Read Range |
865-868MHz |
8 meters |
| 902-928MHz |
8 meters |
| Other Features: |
| Data Storage |
> 10 years |
| Re-write |
100,000 times |
| Installation |
Adhesive |
| Customization |
Company logo,Barcode,Numbers printing,Encoding,etc |
|
UHF RFID Tags Application
|
- Warehouse shelf
- IT asset tracking
- Metallic container tracking
- Equipment&device tracking
- Automotive components tracking, etc.
|
How do you think of UHF RFID Tags
And we can provide kinds size On metal RFID labels, as below:
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory, we own industrial area of around 3,000 square meters along with three production lines and more than 100 employees. The monthly output is 40 million pieces for PVC plastic cards, 5.5 million pieces for smart cards and 5 million pieces for RFID tags .
Q: Can I print the labels with my printer?
A: Yes, it packed in rolls and supported the printing in printer. Please share us more details about the ID, OD and so on.
Q: Does this sticker can be used for outdoor?
A: If customize the waterproof material, yes it is.
Q: Does this sticker can be made disposable?
A: Yes, when you tear it off, it will be broken.
Q: What is the minimum order?
A: MOQ as few as 1000pcs. But normally for international business, we perfect to start from 10000pcs.
Q: How long is your delivery time?
A: Generally it is 2-3 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: 1.Yes, we could offer the sample for free in stock, but need charge the freight.
2. If you need us to design sample for you, we will charge the design cost.
