Washable Heat Seal RFID Laundry Tag With Long Range Identification
Product Specifications
| Frequency |
860-960mhz, UHF860-960MHz/915MHz |
| Material |
Textile |
| Protocol |
ISO 18000-6C, ISO18000-6C or EPC class Gen2 |
| Printing |
Plain White/Color Printing/Silk Printing/Logo Printing |

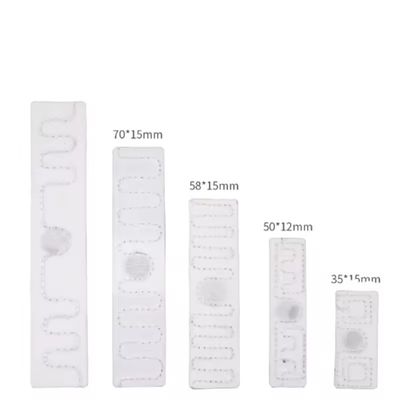

| Antenna Size |
Customized |
| Write Endurance |
100,000 cycles |
| Antenna Material |
Aluminum |
| Chip |
Alien H3/H4, UHF, Monza 5 |
| Reading Distance |
UHF 1.5~10m |
Product Description
Our washable heat seal RFID laundry tags feature UHF UC ODE 8 chip technology withstanding over 200 washing cycles. These advanced RFID tags contain globally unique identifiers for precise tracking throughout the complete laundry management cycle.
Ideal for hotels, hospitals, and commercial laundries handling large volumes of workwear and linens, these tags enable automated tracking through washing, ironing, and storage processes. The system combines fixed and handheld readers for efficient inventory management and asset monitoring.
Key Advantages
- Complete lifecycle tracking from arrival to dispatch
- Simultaneous reading of multiple tags

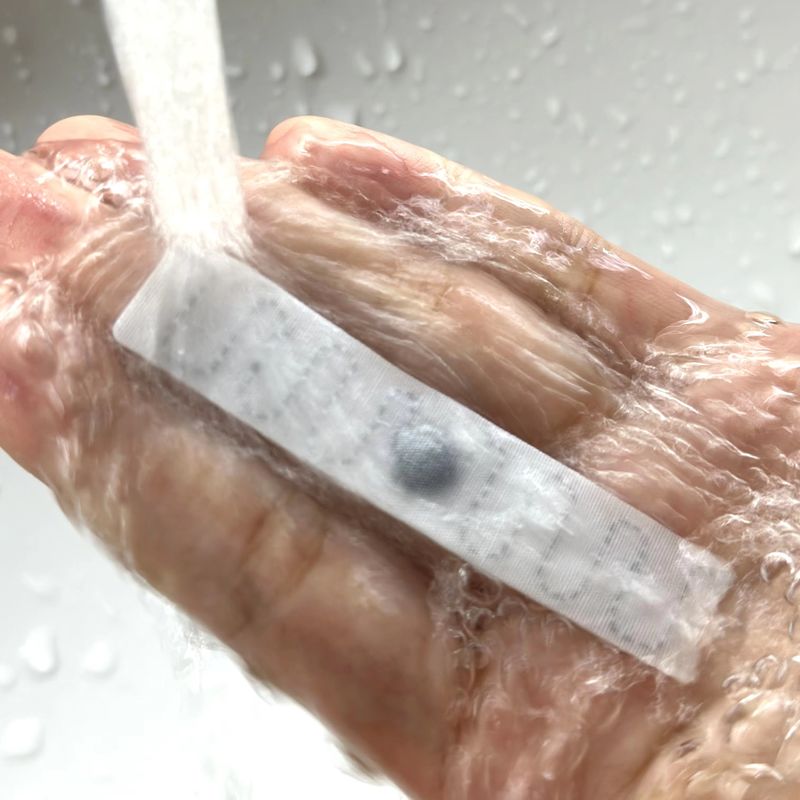

- Waterproof construction resistant to heat, humidity, and chemicals
- Withstands industrial washing processes and environmental extremes
Technical Specifications
| RFID Standard |
ISO/IEC 18000-6 TypeC (EPC Gen2) |
| Size & Weight |
88(W)x4.0(D)x4.0(H)mm, 1.85 g |
| Chip Type |
Alien Higgs-3, MR6, U CODE7 |
| EPC Memory |
96 bits to 480 bits |
| User Memory |
512 bits |
| Reading Range |
902-928 MHz: 3.0-7.0m
866-868 MHz: 3.0-6.0m |
| Tagging Methods |
Sewing, Insert |
| Estimated Lifetime |
225 washing cycles or 3 years |
Environmental Resistance
| Washing Method |
Laundry, Dry cleaning |
| Water Extraction Pressure |
60 bar |
| Water Resistance |
Water resistant |
| Chemical Resistance |
Detergent, Softener, Bleach (Oxygen/Chlorine), Alkali |
| Heat Sterilization |
125ºC for 15-20 minutes - 150 cycles |
| Heat Resistance |
Drying: 85°C (Up to 60min) 120°C (Up to 30 min)
Ironing: 230°C (Up to 60 sec with press cloth) |
Durability Features
High Temperature: Withstands 200°C operation
Wash Cycles: Guaranteed for 200+ washes over 2 years
Pressure Resistance: 60 bars during textile pressing
Installation: Flexible placement on uniform textiles
Physical Specifications
| Maximum Temperature Exposure |
220℃ (392℉) | 30Seconds | 2.5 bars(36,28PSI) |
| Washing |
100℃ (194℉) | 60minutes 120Bar |
| Pre-drying in Tumbler |
160℃ (320℉) | 30minutes |
| Tunnel Finisher |
185℃ (365℉) | 30minutes |
| Sterilization Process |
134℃ (273℉) | 20minutes |
| Water Extractor Press |
120bars |
| Warranty |
250 cycles or 3 years (New Encapsulation) |
Application Methods
Frequently Asked Questions
Q1: I'm interested in your products, but now I'm out of China; could you offer you labels to my country?
A1: We have full export experience and can arrange delivery by sea, air, or express depending on your requirements.
Q2: How can I get the samples?
A2: Free samples available for existing products (1-2 day lead time). Custom samples require payment (5 day lead time). Customer covers shipping costs.
Q3: Is it possible to custom the labels with my own design?
A3: Yes, simply provide your drawings or artwork and we can produce custom labels.
Q4: What is your MOQ?
A4: Minimum order quantity is 1000 pieces per design for labels, 10 rolls per type/size for thermal transfer ribbon.
Q5: Do you provide OEM service?
A5: Yes, we currently provide OEM services including custom packaging for several brands.
Q6: What is your manufacture lead time for our order?
A6: Standard lead time is 15-20 days. Urgent requests can be accommodated upon discussion.
Q7: How can I release the payment to you?
A7: We accept Paypal, Western Union, or direct bank transfers.
