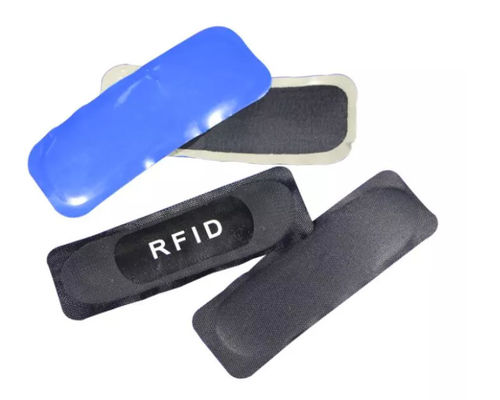

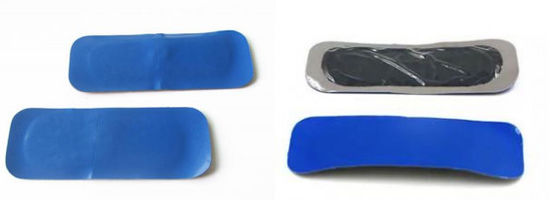

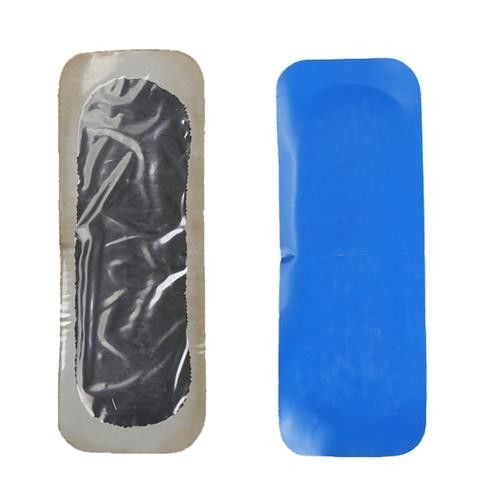

OEM UHF Adhesive RFID Tire Tags Smart Control Management For Trucks

The UHF Adhesive RFID Tire Tags are designed for durable performance in challenging tire environments, withstanding high temperatures and alternating pressures. These vulcanization RFID tags are specifically engineered for tire identification and tracking in industrial applications.

Key dimensions:

• Size: 90 × 35 × 1 mm
• Weight: 0.2g

• Standard protocol: ISO16000-6C, EPC Class 1 Gen 2
• Chip model: Alien H3
• EEROM size: 192 bits
• Memory: 96 bit programmable EPC number with lock capability
• 192 bit user memory with lock capability
• Read Distance: Up to 1 meter when embedded in the tire
• Frequency: 860 to 950 MHz (optimized for 916 MHz)
• Read Distance: 5-6m without tire

• Flexible construction withstands tire deformation for the tire's lifetime
• Read/write capability for user data in tag's internal memory
• Factory programmed tag identification number prevents cloning
• Materials: Rubber, PCB and ABS
• Dimension: 90*35*2.5mm
• Available chip options: AlienH3 with EPC-96bit, User Memory-512bit, TID-64bit

• Logo printing options: Digit printing, offset printing, silk printing
• Serial No & Chip UID printing available
• Chip programming/encoding options: URL, TEXT, Number and Vcard
• Customization: Epoxy coating, size/shape customization, hole punch

• Ticketing & monetary transactions
• Turnstiles and vending systems
• Loyalty systems for promotions
• Parking meters and e-Payment systems
• Mobile payment applications (PayPal, Google Wallet)
• Ticketing, boarding passes, point of sale, coupons
• Gaming & toys

• Do not use inlays with ink marks as they are defective
• Handle with care - RFID inlays/labels are sensitive products
• Avoid bending or stretching the tags
• Static-free bags are used for packing; maintain minimum environmental static charge
