4-8meters Range Passive UHF RFID Labels Tags Mount On Metal For Asset Tracking

4-8meters Range Passive UHF RFID Labels Tags Mount On Metal For Asset Tracking

  • 4-8meters Range Passive UHF RFID Labels Tags Mount On Metal For Asset Tracking
  • 4-8meters Range Passive UHF RFID Labels Tags Mount On Metal For Asset Tracking
  • 4-8meters Range Passive UHF RFID Labels Tags Mount On Metal For Asset Tracking
  • 4-8meters Range Passive UHF RFID Labels Tags Mount On Metal For Asset Tracking
4-8meters Range Passive UHF RFID Labels Tags Mount On Metal For Asset Tracking
Product Details:
Place of Origin: CHINA
Brand Name: WS
Certification: ROHS,REACH,POPS
Model Number: UHF Flexible Metal Tags
Payment & Shipping Terms:
Minimum Order Quantity: 200-500pcs
Price: Please contact us
Packaging Details: 500pcs/roll,2000pcs/carton
Delivery Time: 5-7days
Payment Terms: TT,PAYPAL,WU
Supply Ability: 1,000,000pcs per month
Contact Now
Detailed Product Description
Material: PET,Paper,PP Protocol: ISO18000-6C/6B
Read Range: 4-8meters Chip: IMPINJ MONZA R6/R6-P
Dimension: 95x22mm/65x35mm/30x15mm Print: Printed Or Blanck
Reading Distance: 0.5-8m(depend On Reader) Frequency: UHF860-960MHz/915MHz
Highlight:

8meters RFID Labels Tags

,

Passive RFID Tag Asset Tracking

,

UHF RFID Labels Mount On Metal

4-8meters Range Passive UHF RFID Labels Tags Mount On Metal For Asset Tracking
Product Specifications
Material PET, Paper, PP
Protocol ISO18000-6C/6B
Read range 4-8meters
Chip IMPINJ MONZA R6/R6-P
Dimension 95x22mm/65x35mm/30x15mm
Print Printed or blank
Reading distance 0.5-8m (depend on reader)
Frequency UHF860-960MHz/915MHz
Product Overview

Printable UHF Flexible Metal Tags designed for mounting on metallic surfaces in RFID technology tracking applications. These tags are specially engineered for irregular and uneven metal surfaces such as steel boilers, metal containers, and steel pipes.

Physical Features
Model UHF Flexible On-metal Label
Material PET
Dimensions 95*22*1.25mm
Working Temp -20~+75℃
Survival Temp -40℃~+100℃
RFID Features
RFID Standard EPC C1G2 (ISO18000-6C)
Chip Type Impinj Monza R6-P
User Memory 32(64)bit
EPC Memory 128(96) bits
Max Read Range 865-868MHz: 8 meters
902-928MHz: 8 meters
Additional Features
Data Storage > 10 years
Re-write 100,000 times
Installation Adhesive
Customization Company logo, Barcode, Numbers printing, Encoding, etc
Compatible Printers

Zebra ZT410 Silverline, Sato CL4NX, Toshiba SX-5, Postek TX3r, etc. Synchronous encoding available.

Applications
  • Warehouse shelf management
  • IT asset tracking
  • Metallic container tracking
  • Equipment & device tracking
  • Automotive components tracking

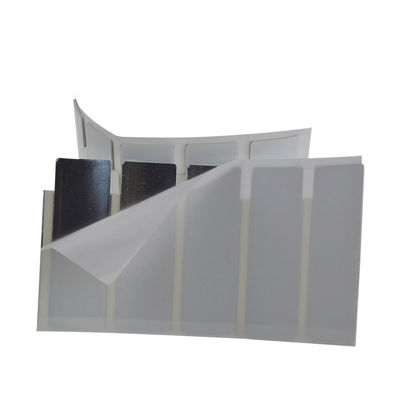

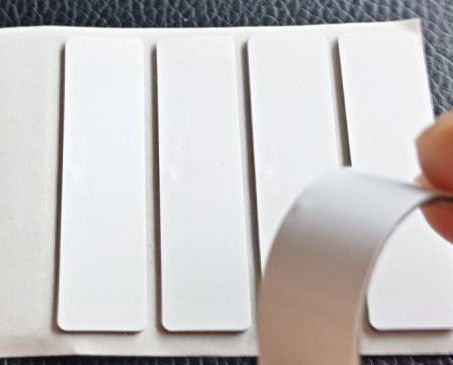

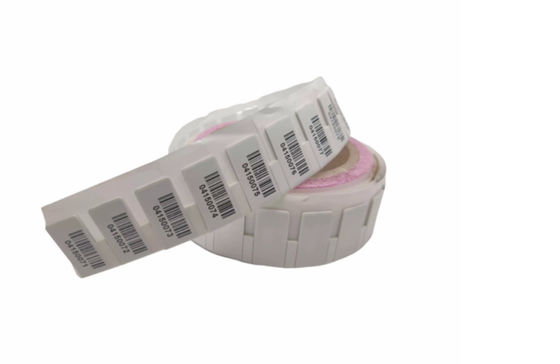

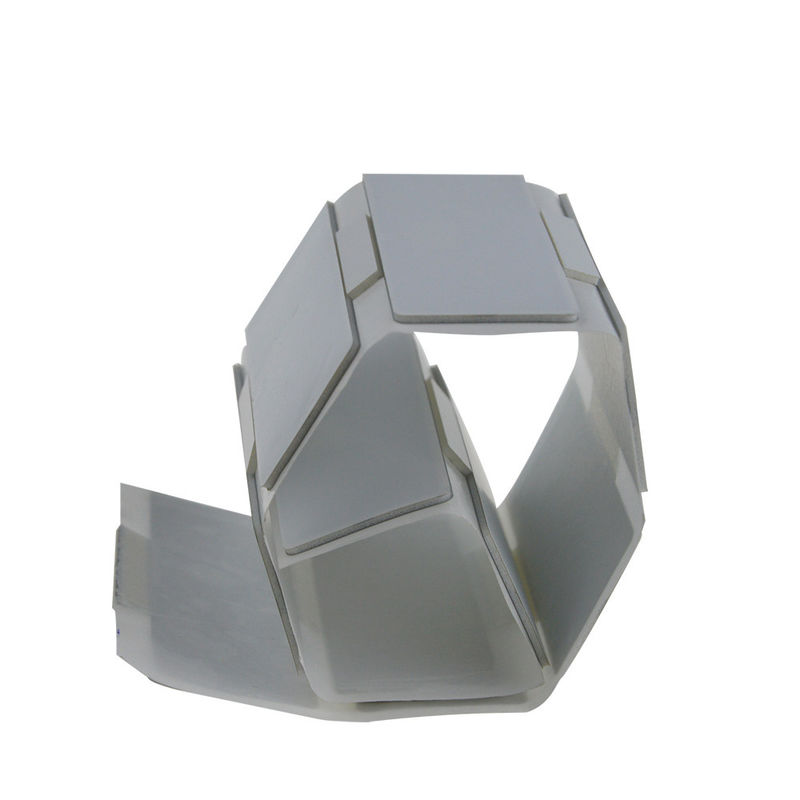

Product Images
4-8meters Range Passive UHF RFID Labels Tags Mount On Metal For Asset Tracking 0 4-8meters Range Passive UHF RFID Labels Tags Mount On Metal For Asset Tracking 1 4-8meters Range Passive UHF RFID Labels Tags Mount On Metal For Asset Tracking 2 4-8meters Range Passive UHF RFID Labels Tags Mount On Metal For Asset Tracking 3 4-8meters Range Passive UHF RFID Labels Tags Mount On Metal For Asset Tracking 4 4-8meters Range Passive UHF RFID Labels Tags Mount On Metal For Asset Tracking 5 4-8meters Range Passive UHF RFID Labels Tags Mount On Metal For Asset Tracking 6
