Product Details:
|
| Product Name: | NFC Smart Label | Substrate Material: | PET PVC |
|---|---|---|---|
| Chip: | 203 | High Data Integrity: | 16-bit CRC, Parity, Bit Coding, Bit Counting |
| Fast Data Transfer: | 106 Kbit/s | Operating Frequency: | 13.56MHZ |
| Highlight: | Custom Print NFC Smart Label,13.56MHZ NFC Custom Stickers,NFC Smart Label 13.56MHZ |
||

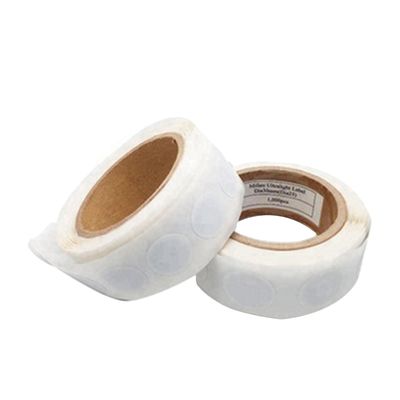

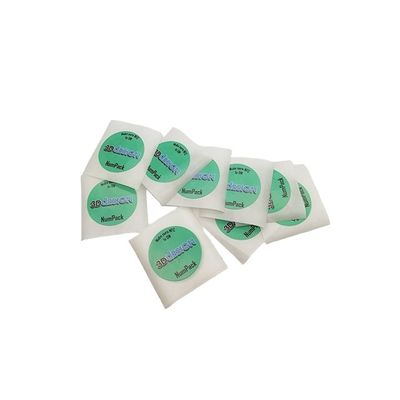

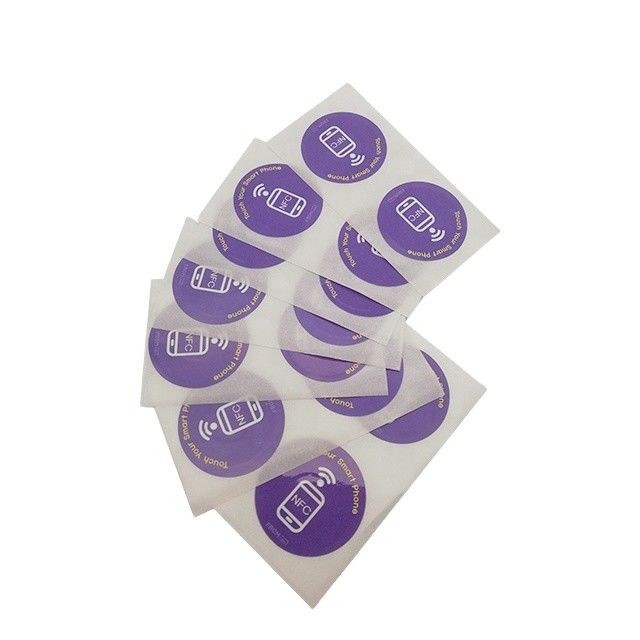

Packing Label Print NFC Micro Rfid Tags 213 Smart Label With 3M Stickers
RF Interface (ISO/IEC 14443A)
1. Contactless transmission of data and supply energy (no battery needed)
2. Operating distance: up to 100 mm (depending on field strength and antenna geometry)
3. Operating frequency: 13.56 MHz
4. Fast data transfer: 106 kbit/s
5. High data integrity: 16-bit CRC, parity, bit coding, bit counting
6. True anticollision
7. 7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)
Chip: 213/215/216
Antenna Material: Aluminum
Substrate Material: PET PVC
Antenna Thickness: 0.03mm
Substrate Thickness: 0.03mm
Frequency: 14.0+/-0.5MHz
Reading Distance: 0---10CM
Environmental Parameters:
Ideal Storage Temp:+15℃～+25℃, 20%RH～45%RH
Tolerant Storage Environment:-25℃～+50℃, 20%RH～90%RH
Tolerant Working Environment:-25℃～+65℃, 20%RH～90%RH
Withstand voltage:≦5N/m㎡
Resistance to bending capacity:≧φ20mm
Protocol: ISO14443A
Frequency: 13.56MHz
Write Endurance: 100, 000 cycles
Data Retention:10 years；
Baudrate: 106K bits/s
the size we have now is below.other sizes can be customized
| size(mm) | size (mm) | |
| 44x24 R2 | dia | 30 |
| 50X45 R3 | 40 | |
| 60X30 R2 | 25 | |
| 74X21 R2 | 28 | |
| 50X50 R2 | ||
| 47X27 R3 | ||
| 109X10 R2 | ||
| 36X22 R2 | ||
| 100X14 R5 | ||
| 85X54 R3 | ||
| 55X20 R2 | ||
| 42x26 R2 | ||
| 100X100 R4 | ||
| 56X18 | ||
| 15X30 | ||
| 41X25 | ||
| 35X18 | ||
| 45X45 | ||
| 16X50 | ||
| 12.7X73 | ||
| 101X25 | ||
| 51x51 | ||
