Product Details:
|
| Product Name: | NFC Label | Antenna Size: | Customized |
|---|---|---|---|
| Reading Distance: | 0---10CM | Write Endurance: | 100, 000 Cycles |
| Frequency: | 13.56MHz | Antenna Material: | Aluminum |
| Chip: | 213 | ||
| Highlight: | Plastic Patrol RFID NFC Tag,213 Chip NFC Tag Sticker,OEM RFID NFC Tag Sticker |
||

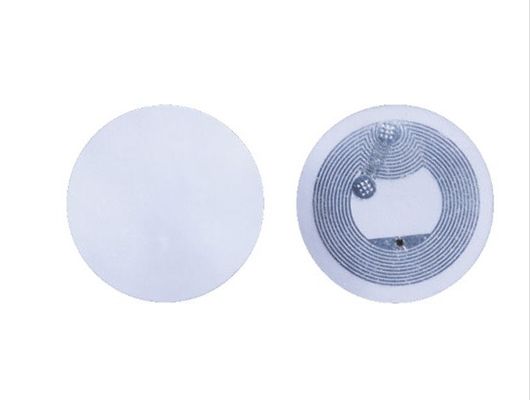

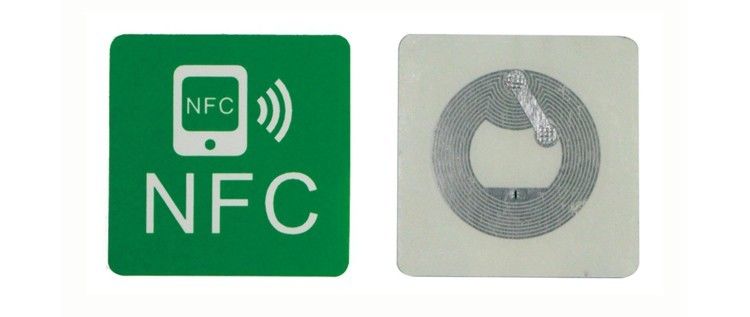

Waterproof Plastic Round RFID 13.56mhz NFC Patrol tag sticker
1. Antenna Material: Aluminum
2. Substrate Material: PET PVC Paper
3. Antenna Thickness: 0.03mm
4. Substrate Thickness: 0.03mm
5. Frequency: 14.0+/-0.5MHz
6. Reading Distance: 0---10CM
| Chip | NFC |
| Memory | 144/504/888bytes |
| Antenna | Aluminium etching antenna |
| Bonding | Flip chip |
| Unwinding | chip side up |
| Thickness | 0.07mm |
| Reading Distance | 0-10cm (depends on reader applied) |
| Operation Temp. | -20°C~+65°C |
| Storage Temp. | -25°C~+65°C |
| Date Storage | ≥10 years |
| Packing | 10,00pcs/roll each roll in a inner case , 4 rolls per master ctn |
| Samples | upon request |
| Declare |
The showing picutre is only fore reference of our product.All related to intelletural property rights of trademark belong to trademark company |
the size we have now is below.other sizes can be customized
| size(mm) | size (mm) | |
| 44x24 R2 | dia | 30 |
| 50X45 R3 | 40 | |
| 60X30 R2 | 25 | |
| 74X21 R2 | 28 | |
| 50X50 R2 | ||
| 47X27 R3 | ||
| 109X10 R2 | ||
| 36X22 R2 | ||
| 100X14 R5 | ||
| 85X54 R3 | ||
| 55X20 R2 | ||
| 42x26 R2 | ||
| 100X100 R4 | ||
| 56X18 | ||
| 15X30 | ||
| 41X25 | ||
| 35X18 | ||
| 45X45 | ||
| 16X50 | ||
| 12.7X73 | ||
| 101X25 | ||
| 51x51 | ||
