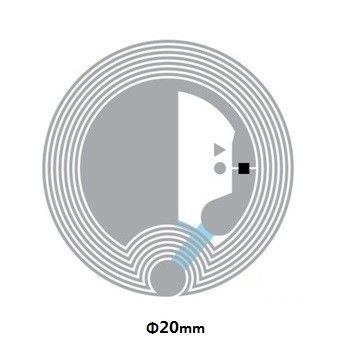

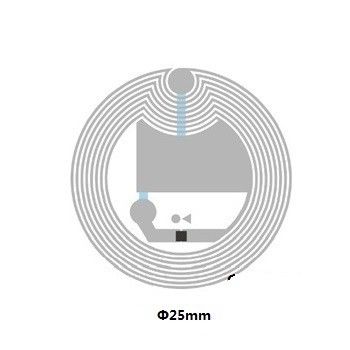

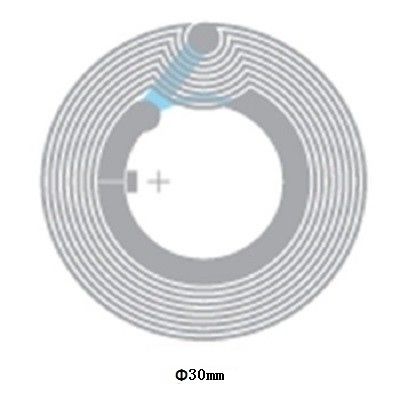

RFID etched antenna write HF Inlay , NFC Forum Tag TYPE 2 Dia 23mm, 213 chip

          1.Chip:213

          2.Inlay Size: Dia 21mm

          3.Environmental: ROHS compliant

          4.Data storage: ≥10 years

          5.Memory:144/504/888bytes

          6.Reading Distance: 1.5~3cm (depends on reader applied)

          7.Customization: Company logo print

Handling

• Inlays with ink marks are defective, do not use.
• RFID Inlays or labels are sensitive product, do not bend or stretch
• Static-free bag will be use for packing; always keep environmental static charge to a minimum.
• InlaySolution reserves the right to modify, change, supplement or discontinue product offerings at any time without notice
• All products from Unico Solution should be tested by the customer/user thoroughly to ensure the product meets the particular requirements. Unico Solution does not represent that this product is fit for any particular purpose or use.

213

• Contactless transmission of data and supply energy
• Operating frequency of 13.56 MHz
• Data transfer of 106 kbit/s
• Data integrity of 16-bit CRC, parity, bit coding, bit counting
• Operating distance up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry)
• 7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
• UID ASCII mirror for automatic serialization of NDEF messages
• Automatic NFC counter triggered at read command
• NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message
• ECC based originality signature
• Fast read command
• True anticollision
• 50 pF input capacitance

company capacity

we always focused on providing to end users and distributors with the better products, faster delivery and more favorable price. We offer products as Inlay, Label, On-Metal Tag, Laundry Tag, Jewelry Tag, paper Ticket, Token, and Wristband etc. Also we can offer custom printed, roll, fanfold, sheet, digital and stock labels, inlay or tags. Our commitment is to meet your most demanding Tag needs.

Packing detalis below:

Qty/Roll (Actual Qty as per Shipping Mark)
12,800±300pcs/roll; 1roll/carton

Packaging
A. Use two lines of 25mm interleaf to protect IC and antenna.
B.Keep away from water, collision and static.
C. Delivery with the package of static-free bag.
