Smart PVC Programmable RFID Tags 13.56MHZ 125KHZ For Access Control

Product Details:

Place of Origin:	CHINA
Brand Name:	WS
Certification:	ROHS,REACH,POPS
Model Number:	CTAG18 CTAG25 CTAG30

Payment & Shipping Terms:

Minimum Order Quantity:	200-500pcs
Price:	Please contact us
Packaging Details:	200pcs/box,1000pcs/Carton ,2000pcs/ Carton ,3000pcs/Carton
Delivery Time:	5-7days
Payment Terms:	T/T,Paypal,WU
Supply Ability:	1,000,000pcs per month

Contact Now

Detailed Product Description

Product Name:	RFID Smart Tags	Frequency:	13.56MHz
Material:	PVC,Epoxy,Silicone,ABS,paper,metal.	Color:	White
Surface:	Blank Or Printing,custom Made	Common Usage:	Anticounterfeiting, Access Control, Industrial Transponder
Highlight:	Smart PVC Programmable RFID Tags , Access Control RFID PVC Tag , Smart 125khz RFID Tag

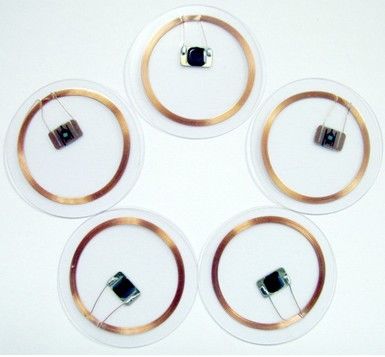

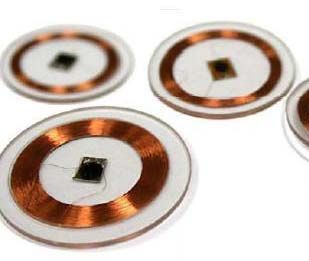

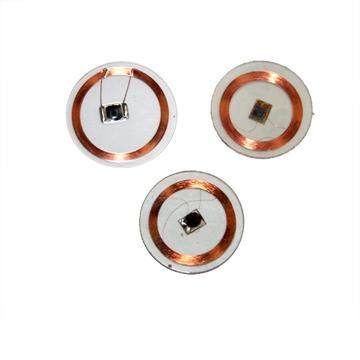

Smart PVC Programmable RFID Tags 13.56MHZ 125KHZ For Access Control

Product Overview

High-performance RFID smart tags designed for access control, industrial transponders, and anti-counterfeiting applications. Available in multiple frequencies (13.56MHz and 125KHz) with customizable printing options.

Key Attributes

Attribute	Value
Product Name	RFID Smart Tags
Frequency	13.56MHz
Material	PVC, Epoxy, Silicone, ABS, Paper, Metal
Color	White
Surface	Blank or custom printing available
Common Usage	Anti-counterfeiting, Access control, Industrial transponder

Technical Specifications

Model No.	CTAG18	CTAG25	CTAG30
Reading Distance	60mm	70mm	80mm
Size	ø18mm	ø25mm	ø30mm
Operating Temperature	-40°C to 70°C	-40°C to 70°C	-40°C to 70°C
Storage Temperature	-40°C to 80°C	-40°C to 80°C	-40°C to 80°C
Material	PVC	PVC	PVC
Waterproof	Yes	Yes	Yes

Supported Technologies

GK4001 (125KHz, 64bit, R/O)
EM4102 (125KHz, 64bit, R/O)
I-Code SLI (13.56MHz, 1024bit, R/W)
RFID S50 (13.56MHz, 1KByte, R/W)
Temic E5557 (125KHz, 330bit, R/W)

Additional Specifications

Contactless Read/Write	13.56 MHz
Memory Capacity	512 bits R/W
Standard Deployment	Attached to or inserted into objects
Tested Read Range	2-4 cm (1-2 in.)
Multi-Detection	No
Max Read Quantity	1 tag/sec
Size	Diameter: F22mm×1mm
Weight	0.5 g
