Name: PET H3 AZ 9662 Rfid Uhf Label Dry Inlay Wet Inlay For ISO18000-6C RFID Tags
Brand: White Smart Co., Limited
SKU: ALN-9662
Availability: InStock

Home Products UHF RFID Inlay

PET H3 AZ 9662 Rfid Uhf Label Dry Inlay Wet Inlay For ISO18000-6C RFID Tags

Product Details:

Place of Origin:	CHINA
Brand Name:	WS
Certification:	ROHS,REACH,POPS
Model Number:	ALN-9662

Payment & Shipping Terms:

Minimum Order Quantity:	1,000PCS
Price:	Please contact us
Delivery Time:	5-7days
Payment Terms:	TT,PAYPAL,WU
Supply Ability:	1,000,000

Contact Now

Detailed Product Description

Protocol:

ISO 18000-6C/GEN 2

Material:

PET

Chip:

Frequency:

860-960MHZ

Highlight:

AZ 9662 Rfid Uhf Label Dry Inlay

PET H3 Uhf Label Dry Inlay

ISO18000-6C Rfid Wet Inlay

PET H3 AZ 9662 RFID UHF Label Dry Inlay/Wet Inlay for ISO18000-6C RFID Tags

Product Specifications

Attribute	Value
Protocol	ISO 18000-6C/GEN 2
Material	PET
Chip	H3
Frequency	860-960MHZ

Detailed Product Information

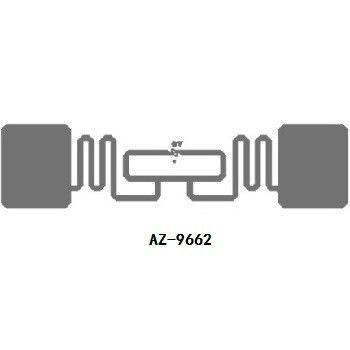

AZ 9662 RFID UHF Label - Dry Inlay/Wet Inlay for ISO18000-6C RFID tags

Product Code	AZ9662
Product Category	Passive RFID antenna
Antenna Material	Aluminum Al (30μm) + PET (38μm)
Chip	Alien H3
Frequency	860-960 MHz
RF Protocol	ISO-18000-6C, EPC Class 1, Gen 2
User capacity	512bits
EPC capacity	96bits
Working life	100000 times / 10 years
Antenna size	70 * 17 mm
Wet inlay	73.5 * 21.2 mm
Thickness	0.07mm (chip location: 0.23mm)
Weight	0.01g
Working temperature	-20℃ to +60℃
Storage temperature	-25℃ to +65℃
Packing	1000pcs/roll or customized
Read Distance	Up to 6m depending on antenna geometry and reader configuration
Shelf life	One year under vacuum packaging (20-30℃/humidity 20%-60%)
Applications	Identification, Cards, Logistics, Library, Asset management, Payment, Access control

Handling Instructions

Inlays with ink marks are defective and should not be used
RFID Inlays or labels are sensitive products - avoid bending or stretching
Static-free bags used for packing; maintain minimal environmental static charge
Products should be thoroughly tested by customers to ensure suitability for specific requirements

Alien H3 Chip Features

Compatible with EPCglobal Gen2 (V 1.2.0) and ISO/IEC 18000-6C standards
Worldwide operation in UHF bands (860-960 MHz)
800-Bits of Nonvolatile Memory:
- 96-EPC Bits (extensible to 480 Bits)
- 512 User Bits
- 64 Bit Unique TID
- 32 Bit Access and 32 bit Kill Passwords
Pre-programmed with unique, unalterable 64-bit serial number
Supports high-speed programming (30 tags/sec for 96-bit EPC number)
Exceptional operating range (up to 10m with appropriate antenna)

Company Capabilities

We specialize in providing high-quality RFID products including Inlays, Labels, On-Metal Tags, Laundry Tags, Jewelry Tags, Paper Tickets, Tokens, and Wristbands. Custom printing and packaging options available for labels, inlays, and tags in various formats (roll, fanfold, sheet).
