Name: Dry Wet RFID UHF Inlay 960MHz ISO/IEC 18000-6C Protocol Ultra High Frequency Inlay
Brand: White Smart Co., Limited
Availability: InStock

Home Products UHF RFID Inlay

Dry Wet RFID UHF Inlay 960MHz ISO/IEC 18000-6C Protocol Ultra High Frequency Inlay

Product Details:

Place of Origin:	CHINA
Brand Name:	WS
Certification:	ROHS,REACH,POPS

Payment & Shipping Terms:

Minimum Order Quantity:	200-500pcs
Price:	Please contact us
Delivery Time:	5-7days
Payment Terms:	TT,PAYPAL,WU
Supply Ability:	1,000,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Plastic Loyalty Cards	Printing Type:	Offset/Screen Printing/digital Printing,custom
Material:	PVC , Plastic	Individualization:	Custom, Embossing Or Print Name, Number,date Etc
Application:	Club,advertisement,traffic,supermarket,parking,bank, Government
Highlight:	Wet RFID UHF Inlay , Dry RFID UHF Inlay , 960MHz Ultra High Frequency Inlay

Dry Wet RFID UHF Inlay 960MHz ISO/IEC 18000-6C Protocol Ultra High Frequency Inlay

Product Specifications

Product name	Plastic Loyalty Cards
Printing Type	Offset/Screen Printing/digital Printing, custom
Material	PVC, plastic
Individualization	Custom, embossing or print name, number, date etc
Application	Club, advertisement, traffic, supermarket, parking, bank, government

Product Description

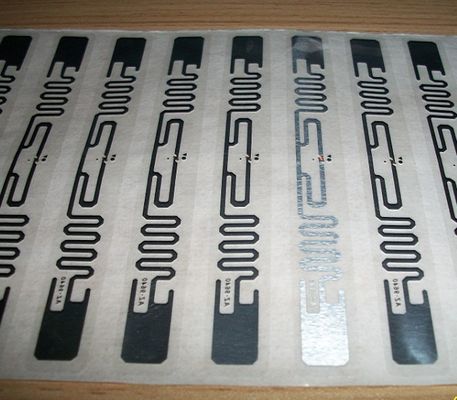

AZ H3 Chip UHF inlay Dry inlay Wet inlay, 18000-6C protocol Ultra High Frequency RFID inlay. White Smart RFID specializes in non-contact smart cards, contact smart cards, RFID tags, and system solutions for design, development, production, and sales.

As a leading supplier of cards and tickets, our products are used in many countries including Russia, Chile, Argentina, Jordan, Italy, Indonesia, Venezuela, and England, processing hundreds of thousands of users daily.

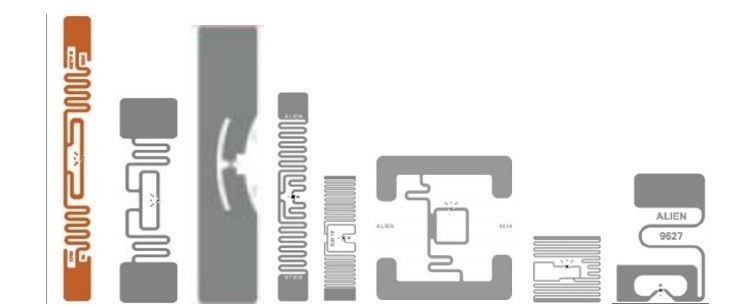

Product Variants

Item	Product	Antenna Material	Chip	Antenna Dimension	Wet Inlay Dimension
1	AZ-9610	Al	H3	10.4*44.5mm
2	AZ-9613	Al	H3	9*12mm	12.5*19mm
3	AZ-9620	Al	H3	9.7*27mm	14.7*31mm

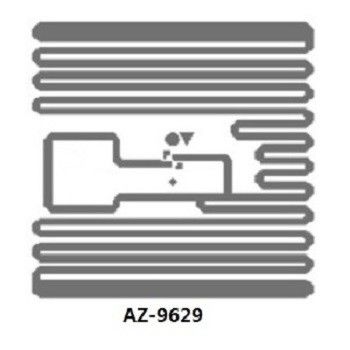

4	AZ-9629	Al	H3	22.5*22.5mm	27*27mm
5	AZ-9630	Al	H3	9.5*70mm
6	AZ-9640	Al	H3	8.15*94.8mm	13*98mm
7	AZ-9654	Al	H3	19*93mm	23.2*96.5mm
8	AZ-9662	Al	H3	17*70mm	23.2*73.5mm

Higgs-3 Chip Features

Meets EPCglobal Gen2 (V 1.2.0) and ISO/IEC 18000-6C standards
Worldwide operation in RFID UHF bands (860-960MHz)
800-Bits of Nonvolatile Memory:
- 96-EPC Bits, extensible to 480 Bits
- 512 User Bits
- 64 Bit Unique TID
- 32 Bit Access and 32 bit Kill Passwords
Pre-programmed with unique, unalterable 64-bit serial number
User Memory can be Block Perma-Locked and read password protected in 64 Bit Blocks
Supports all Mandatory and Optional Commands including Item Level Commands
Custom Commands for high speed programming (30 tags per second for 96-bit EPC number)
Low power operation for both read and program
Exceptional operating range, up to 10m with appropriate antenna
