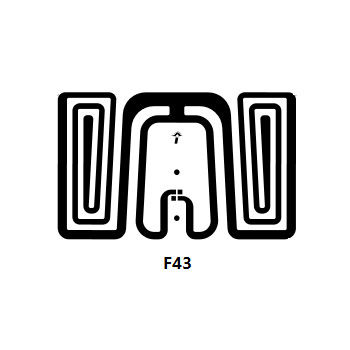

Name: Custom Size 26x16mm F43 Dry UHF RFID Inlay With Impinji Monza 4 Chip
Brand: White Smart Co., Limited
SKU: F43
Availability: InStock

Home Products UHF RFID Inlay

Custom Size 26x16mm F43 Dry UHF RFID Inlay With Impinji Monza 4 Chip

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	WS
Certification:	ROHS,REACH,POPS
Model Number:	F43

Payment & Shipping Terms:

Minimum Order Quantity:	200-500pcs
Price:	Please contact us
Packaging Details:	Packaging Details: 1000pcs/roll 3000pcs/roll, or one by one seperated, or by customized.
Delivery Time:	5-7days
Payment Terms:	TT,PAYPAL,WU
Supply Ability:	1,000,000

Contact Now

Detailed Product Description

Chip:	Impinji Monza 4	Size:	26*16mm
Thickness:	0.2-0.8mm	Keyword:	RFID UHF Inlay
Reading Distance:	2m
Highlight:	26x16mm RFID UHF Inlay , Custom Size RFID UHF Inlay , F43 Dry UHF RFID Inlay

Custom Size 26x16mm F43 Dry UHF RFID Inlay With Impinji Monza 4 Chip

Product Specifications

Chip	Impinji Monza 4
Size	26×16mm
Thickness	0.2-0.8mm
Reading Distance	2m

Key Features

Chip: Impinji Monza 4
Die Cut Size: 26×16mm
Environmental: ROHS compliant
Data storage: >10 years
Re-write: 100,000 times
Fixture: 3M adhesive
Customization: Company logo print available

Technical Specifications

Material	PET
Minimum QTY	1000pcs
Available crafts	For label or card manufacturing
Certificate	ISO 18000-6C

Applications

Assets statistics management
Small equipment management
Firearms management
Drug management
Enterprise, bank, and traffic systems
Insurance, supermarket, and parking systems
School and library management
Access control systems

Impinji Monza 4 Chip Features

EPCglobal and ISO 18000-6C compliant
QT™ technology: Protects sensitive data while ensuring consumer privacy
Private/Public data profiles for controlled data exposure
Short-range option to prevent unauthorized access
Field-rewritable NVM with 100,000-cycle/50-year retention
Write rate of 5 ms for 32-bit writes (1200 tags/minute)
Extended temperature range (-40°C to +85°C)
Multiple memory options available

Packaging & Shipping

Quantity: 12,800±300pcs/roll; 1roll/carton
Packaging: Two lines of 25mm interleaf to protect IC and antenna
Handling: Keep away from water, collision and static
Delivery: Static-free bag packaging
Shipping Options: Express, sea or air

Product Images

Important Notes: Inlays with ink marks are defective. RFID products are sensitive - do not bend or stretch. All products should be thoroughly tested by customers to ensure they meet specific requirements.
