Name: 860 - 960MHz Dry / Wet UHF RFID Inlay 0.2-0.8mm Thick With Impinji Monza 4 Chip
Brand: White Smart Co., Limited
SKU: B41
Availability: InStock

Home Products UHF RFID Inlay

860 - 960MHz Dry / Wet UHF RFID Inlay 0.2-0.8mm Thick With Impinji Monza 4 Chip

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	WS
Certification:	ROHS,REACH,POPS
Model Number:	B41

Payment & Shipping Terms:

Minimum Order Quantity:	200-500pcs
Price:	Please contact us
Packaging Details:	Packaging Details: 1000pcs/roll 3000pcs/roll, or one by one seperated, or by customized.
Delivery Time:	5-7days
Payment Terms:	TT,PAYPAL,WU
Supply Ability:	1,000,000

Contact Now

Detailed Product Description

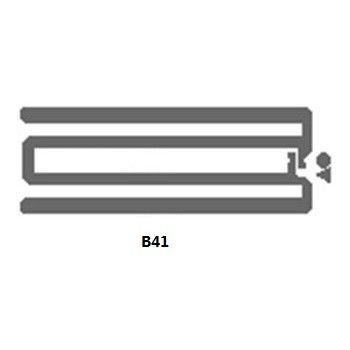

Chip:	Impinji Monza 4	Size:	22*8mm
Thickness:	0.2-0.8mm	Keyword:	RFID UHF Inlay
Reading Distance:	0.3m (over 6m With Additional Metal On Both Sides)
Highlight:	Impinji Monza 4 Chip uhf inlay , 960mhz UHF RFID Inlay , 0.8mm Thick dry uhf inlay

860 - 960MHz Dry/Wet UHF RFID Inlay 0.2-0.8mm Thick With Impinji Monza 4 Chip

Key Specifications

Attribute	Value
Chip	Impinji Monza 4
Size	22×8mm
Thickness	0.2-0.8mm
Reading Distance	0.3m (over 6m with additional metal on both sides)

Product Features

860-960MHz UHF RFID dry/wet inlay with Impinji Monza 4 Chip
ROHS compliant environmental standards
Data storage: >10 years
Re-write capability: 100,000 times
3M adhesive fixture
Customizable with company logo print
Applications: Assets management, equipment tracking, firearms management, pharmaceutical tracking

Technical Specifications

Material	PET
Minimum Order Quantity	1000pcs
Available Crafts	For label or card manufacturing
Price Terms	FOB/CNF/CIF price, 50% deposit before production
Lead Time	Depends on quantity
Certification	ISO 18000-6C

Impinji Monza 4 Chip Features

EPCglobal and ISO 18000-6C compliant
QT™ technology for data privacy protection
Private/Public data profiles for controlled data exposure
Short-range option to prevent unauthorized access
100,000-cycle/50-year retention reliability
Extended temperature range (-40°C to +85°C)
High-speed write capability (1200 tags/minute)

Packaging Details

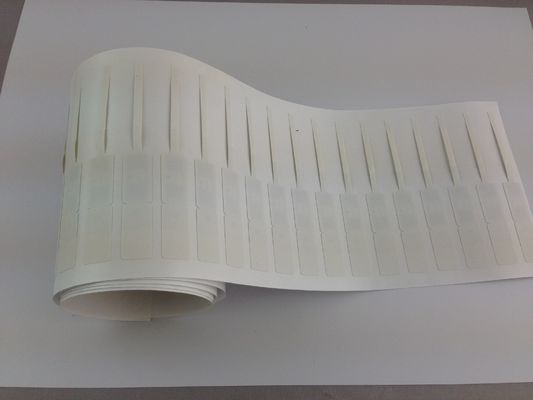

12,800±300pcs/roll; 1roll/carton
Interleaf protection for IC and antenna
Static-free bag packaging
Standard packaging dimensions: 360×235×218mm

Handling Instructions

Inlays with ink marks are defective and should not be used. RFID Inlays are sensitive products - avoid bending or stretching. Always maintain static-free environment during handling. Customers should thoroughly test products to ensure they meet specific requirements.
