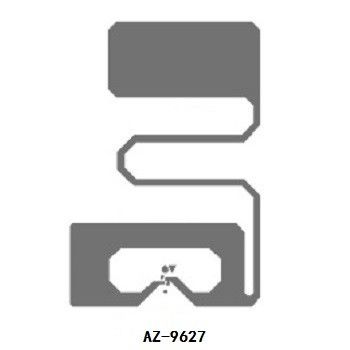

ALIEN H3 Chip RFID UHF Inlay 30x45mm For Library Management

AZ-9627 UHF inlay RFID dry/wet inlay featuring ALIEN H3 chip in 30mm×45mm size, ROHS compliant with extensive data storage and rewriting capabilities.

• Chip: Alien H3
• Die Cut Size: 30mm×45mm
• Environmental: ROHS compliant
• Data storage: >10 years
• Re-write: 100,000 times
• Fixture: 3M adhesive backing
• Customization: Company logo printing available

Ideal for assets statistics management, small equipment tracking, firearms management, pharmaceutical control, and library management systems. Suitable for enterprises, banking, transportation, insurance, supermarkets, parking systems, schools, and access control.

• Complies with EPCglobal™ Gen2 (V 1.2.0) and ISO/IEC 18000-6C standards
• 800-Bits of Nonvolatile Memory:
  • 96-EPC Bits (extensible to 496 Bits)
  • 512 User Bits
  • 64 Bit Unique TID
  • 32 Bit Access and Kill Passwords
• Pre-programmed with unique, unalterable 64-bit serial number
• User Memory can be Block Perma-Locked and read password protected in 64 Bit Blocks
• Supports all mandatory and optional commands including Item Level Commands

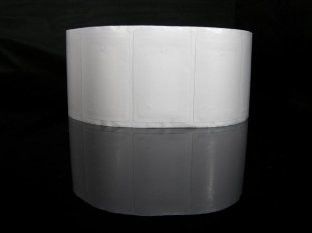

• Standard Packaging: 12,800±300pcs/roll; 1roll/carton
• Protection: Two lines of 25mm interleaf to protect IC and antenna
• Handling: Static-free bag packaging; keep away from water, collision and static
• Weight Reference:
  • 1,000pcs: 3Kg
  • 2,000pcs: 6Kg
  • 3,000pcs: 9Kg
  • 5,000pcs: 15Kg

• Inlays with ink marks are defective and should not be used
• Do not bend or stretch RFID Inlays or labels
• Maintain minimum environmental static charge
