Name: PET NFC Wet HF RFID Inlay 13.56MHZ Frequency 25x40mm For Key Fob / Label
Brand: White Smart Co., Limited
Availability: InStock

Home Products HF RFID Inlay

PET NFC Wet HF RFID Inlay 13.56MHZ Frequency 25x40mm For Key Fob / Label

Product Details:

Place of Origin:	CHINA
Brand Name:	WS
Certification:	ROHS,REACH,POPS

Payment & Shipping Terms:

Minimum Order Quantity:	200-500pcs
Price:	Please contact us
Delivery Time:	5-7days
Payment Terms:	TT,PAYPAL,WU
Supply Ability:	1,000,000

Contact Now

Detailed Product Description

Material:	PET	Chip:	RFID Classic / SLI / NFC
RFID:	NFC	Frequency:	13.56MHZ
Reading Range:	1-3CM	Antenna:	Etched Antenna
Highlight:	25x40mm PET RFID Inlay , 13.56MHZ Frequency NFC RFID Inlay , HF RFID Inlay For Key Fob

PET NFC Wet HF RFID Inlay 13.56MHZ Frequency 25x40mm For Key Fob / Label

Product Specifications

Attribute	Value
Material	PET
Chip	RFID Classic / SLI / NFC
RFID	NFC
Frequency	13.56MHZ
Reading Range	1-3CM
Antenna	Etched antenna

Detailed Product Description

13.56MHZ RFID Inlay 25x40mm size HF Inlay wet inlay for key fob / label / wristband / paper card

Frequency	HF 13.56MHz
Label Size	25x40mm
Wet Inlay Size	25x40mm
Chip	RFID Classic / SLI / NFC
Memory	144/504/888bytes
Antenna	Aluminium etching antenna
Bonding	Flip chip
Unwinding	Chip side up
Thickness	0.07mm
Reading Distance	1.5~3cm (depends on reader applied)
Operation Temp.	-20°C~+65°C
Storage Temp.	-25°C~+65°C
Date Storage	≥10 years

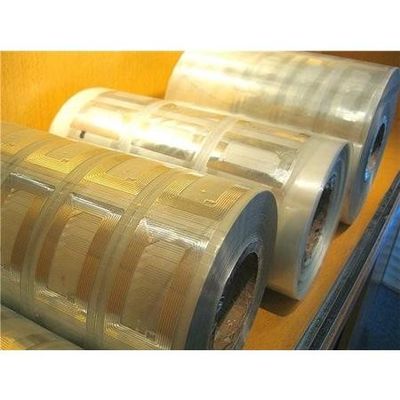

Packing	10,000pcs/roll each roll in a inner case, 4 rolls per master ctn

Handling Instructions

Inlays with ink marks are defective, do not use
RFID Inlays or labels are sensitive products, do not bend or stretch
Static-free bag will be used for packing; always keep environmental static charge to a minimum
Product specifications may change without notice
Customers should thoroughly test products to ensure they meet specific requirements

SLI RF Interface Features (ISO/IEC 15693)

Contactless transmission of data and supply energy (no battery needed)
Operating distance: up to 1.5 m (depending on antenna geometry)
Operating frequency: 13.56 MHz (world-wide license free)
Fast data transfer: up to 53kbit/s
High data integrity: 16 Bit CRC, framing
True anticollision
Electronic Article Surveillance (EAS)
Application Family Identifier (AFI) supported
Data Storage Format Identifier (DSFID)
Additional fast anticollision read
Write distance equal to read distance

EEPROM Specifications

1024 bits, organized in 32 blocks of 4 byte each
Data retention of 10 years
Write endurance 100,000 cycles

Security Features

Unique identifier for each device
Lock mechanism for each user memory block (write protection)
Lock mechanism for DSFID, AFI, EAS

Company Capabilities

We specialize in providing high-quality RFID products including Inlays, Labels, On-Metal Tags, Laundry Tags, Jewelry Tags, Paper Tickets, Tokens, and Wristbands. We offer custom printing options and various packaging formats (roll, fanfold, sheet) to meet your specific requirements.

Packaging Details

Quantity per roll: 12,800±300pcs/roll; 1roll/carton
