Name: PVC Material Contactless HF Wet RFID Prelam 125KHZ 13.56MHZ RFID Inlay
Brand: White Smart Co., Limited
Availability: InStock

Home Products HF RFID Inlay

PVC Material Contactless HF Wet RFID Prelam 125KHZ 13.56MHZ RFID Inlay

Product Details:

Place of Origin:	CHINA
Brand Name:	WS
Certification:	ROHS,REACH,POPS

Payment & Shipping Terms:

Minimum Order Quantity:	200-500pcs
Price:	Please contact us
Delivery Time:	5-7days
Payment Terms:	TT,PAYPAL,WU
Supply Ability:	1,000,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Prelams	Printing Type:	Offset/Screen Printing/digital Printing,custom
Material:	PVC	Individualization:	Custom, Embossing Or Print Name, Number,date Etc
Application:	Club,advertisement,traffic,supermarket,parking,bank, Government	Dimension:	Customized
Highlight:	PVC Material Contactless RFID Inlay , Contactless HF Wet RFID Prelam , 125KHZ PVC RFID Prelam

PVC Material Contactless HF Wet RFID Prelam 125KHZ 13.56MHZ RFID Inlay

Product Specifications

Attribute	Value
Product name	Prelams
Printing Type	Offset/Screen Printing/digital Printing, custom
Material	PVC
Individualization	Custom, embossing or print name, number, date etc
Application	Club, advertisement, traffic, supermarket, parking, bank, government
Dimension	Customized

Product Description

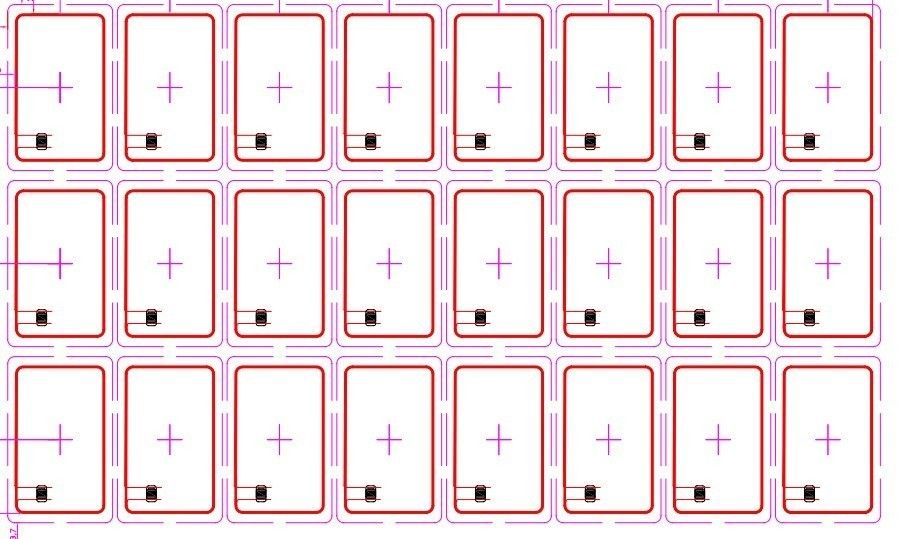

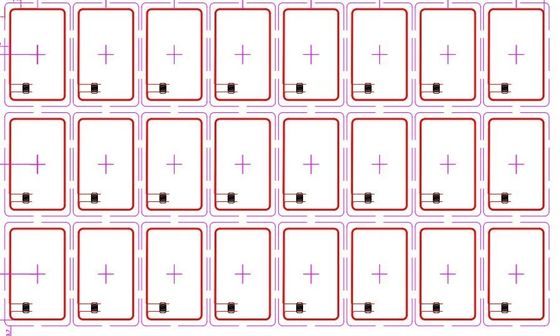

RFID Prelams Middle sheet the smart card RFID card Prelams, Inlay available in 2×2, 2×5, 4×6, 6×8 sizes and other custom dimensions.

New customized size RFID Prelams, HF Contactless smart card, RFID card Inlay with 13.56MHZ RFID chip for smart card applications.

A complete Radio-Frequency Identification system consists of:

A scanning antenna
A transceiver with decoder to interpret data
A programmed transponder (RFID smart card)

Technical Features

Feature	Specification
Working Frequency	125KHZ, 13.56MHZ
Chip type	EM4200, RFID series
Material	PVC, PET
Inlay Format	2×4, 2×5, 5×5, 3×6, 3×7, 3×8, 4×8, 4×10, etc
Thickness	0.45±0.02mm (FCP), 0.52±0.02mm (W/B)
Antenna	Cooper Antenna

User Environment

Operating temperature	-20°C to +75°C
Storage temperature	-20°C to +80°C
Inlays per roll	5,000
Package	Corrugated Carton
Rolls per carton	Up to 6
Weight	0.95±0.05kg/roll; 6.46±0.3kg/carton

Performance Specifications

Reading Distance	1-15cm
Data Storage Time	10 years
Application	Smart card, RFID card, contactless card, door access control card, attendance card, parking card

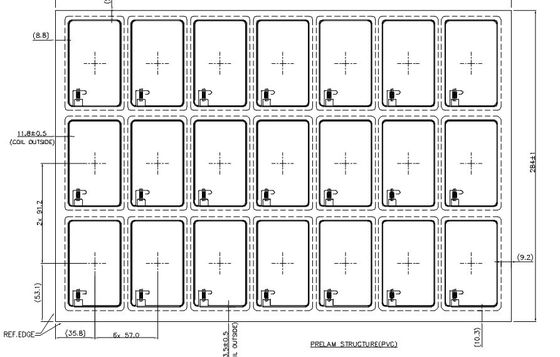

Common inlay sizes include: 305mm×460mm, 320mm×464mm, 300mm×480mm, 390mm×480mm, 500mm×650mm and other custom dimensions.

Inlay thickness ranges from 0.35mm to 0.60mm. Production process uses etched antenna or ultrasonic automatic submerged line coil, with internal coil arrangement customizable to customer requirements. Surface printing options include date, logo, and wireframe printing.

Handling Instructions

Do not use inlays with ink marks as they are defective
RFID Inlays are sensitive products - avoid bending or stretching
Static-free bags used for packing; maintain minimal environmental static charge
Product specifications subject to change without notice
Customers should thoroughly test products to ensure they meet specific requirements

EM4200 Chip Specifications

Fully compatible with EM4100/4102 and EM4005/4105 communication protocols
128 bit laser programmed ROM (64 and 96 bit options available)
Multiple data rate and encoding options: Manchester, Biphase, PSK and FSK
Integrated resonant capacitor options: 75pF, 210pF or 250pF
100 to 150 kHz frequency range
On-chip rectifier and voltage limiter
No external supply buffer capacitor needed
Operating range: -40°C to +85°C
Low power consumption with high performance

Company Capacity

We specialize in providing high-quality RFID products including Inlays, Labels, On-Metal Tags, Laundry Tags, Jewelry Tags, Paper Tickets, Tokens, and Wristbands. Custom printing options available in roll, fanfold, sheet, and digital formats to meet demanding tag requirements.

Packing Details

Quantity: 12,800±300pcs/roll; 1roll/carton

Packaging Specifications:
