Name: D25mm Dry Or Wet HF RFID Inlay Tag 13.56MHz ISO 14443A Classic(R) 1K
Brand: White Smart Co., Limited
Availability: InStock

Home Products HF RFID Inlay

D25mm Dry Or Wet HF RFID Inlay Tag 13.56MHz ISO 14443A Classic(R) 1K

Product Details:

Place of Origin:	CHINA
Brand Name:	WS
Certification:	ROHS,REACH,POPS

Payment & Shipping Terms:

Minimum Order Quantity:	200-500pcs
Price:	Please contact us
Packaging Details:	2,000pcs/roll,5,000pcs/roll
Delivery Time:	5-7days
Supply Ability:	1,000,000pcs per month

Contact Now

Detailed Product Description

Material:	PET	RFID:	NFC
Frequency:	13.56MHZ	Reading Range:	1-3CM
Antenna:	Etched Antenna
Highlight:	D25mm Wet Inlay RFID Tag , ISO 14443A HF RFID Inlay , Classic(R) 1K RFID Wet Inlay

D25mm Dry Or Wet HF RFID Inlay Tag 13.56MHz ISO 14443A Classic(R) 1K

Product Specifications

Attribute	Value
Material	PET
RFID	NFC
Frequency	13.56MHZ
Reading Range	1-3CM
Antenna	Etched antenna

Detailed Product Information

Frequency	HF 13.56MHz
Inlay Size	Dia 21mm
Wet Inlay Size	Dia 25mm
Memory	144/504/888bytes
Antenna	Aluminium etching antenna
Bonding	Flip chip
Unwinding	Chip side up
Thickness	0.07mm
Reading Distance	1.5~3cm (depends on reader applied)
Operation Temp.	-20°C~+65°C
Storage Temp.	-25°C~+65°C
Date Storage	≥10 years
Packing	10,00pcs/roll each roll in a inner case, 4 rolls per master ctn

Handling Instructions

Inlays with ink marks are defective and should not be used
RFID Inlays or labels are sensitive products - avoid bending or stretching
Static-free bags are used for packing; maintain minimal environmental static charge

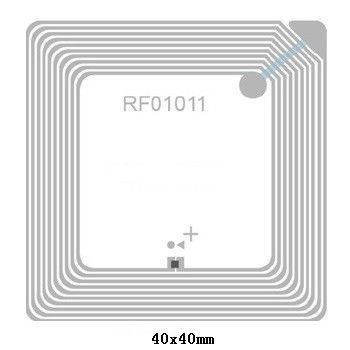

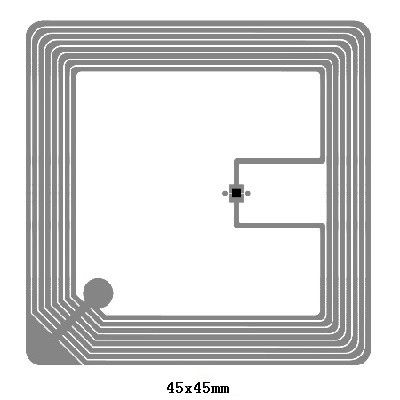

Product Images

Note: Samples available upon request. The displayed images are for reference only. All intellectual property rights of trademarks belong to their respective owners. Products should be thoroughly tested by customers to ensure they meet specific requirements.
