Name: Electronic 213 Chip HF RFID Inlay NFC Programmable Tags PET Material
Brand: White Smart Co., Limited
Availability: InStock

Electronic 213 Chip HF RFID Inlay NFC Programmable Tags PET Material

Product Details:

Payment & Shipping Terms:

Contact Now Chat Now

Detailed Product Description

Material:	PET	Chip:	213
RFID:	NFC	Frequency:	13.56MHZ
Reading Range:	1-3CM	Antenna:	Etched Antenna
Highlight:	Nfc Programmable RFID Tags , Electronic Programmable RFID Tags , 213 Chip HF RFID Inlay

Electronic 213 Chip HF RFID Inlay NFC Programmable Tags PET Material

Product Attributes

Product Specifications

Frequency	HF 13.56MHz

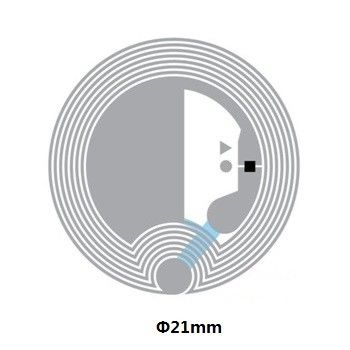

Inlay Size	Dia 21mm
Wet Inlay Size	Dia 25mm
Chip	NFC
Memory	144/504/888bytes
Antenna	Aluminium etching antenna
Bonding	Flip chip
Unwinding	Chip side up
Thickness	0.07mm
Reading Distance	1.5~3cm (depends on reader applied)
Operation Temp.	-20°C~+65°C
Storage Temp.	-25°C~+65°C
Date Storage	≥10 years
Packing	10,00pcs/roll each roll in a inner case, 4 rolls per master ctn
Samples	upon request

Important Notes

The showing picture is only for reference of our product. All related to intellectual property rights of trademark belong to trademark company.

Handling Instructions

Inlays with ink marks are defective, do not use.
RFID Inlays or labels are sensitive product, do not bend or stretch
Static-free bag will be use for packing; always keep environmental static charge to a minimum.
InlaySolution reserves the right to modify, change, supplement or discontinue product offerings at any time without notice
All products from Unico Solution should be tested by the customer/user thoroughly to ensure the product meets the particular requirements. Unico Solution does not represent that this product is fit for any particular purpose or use.

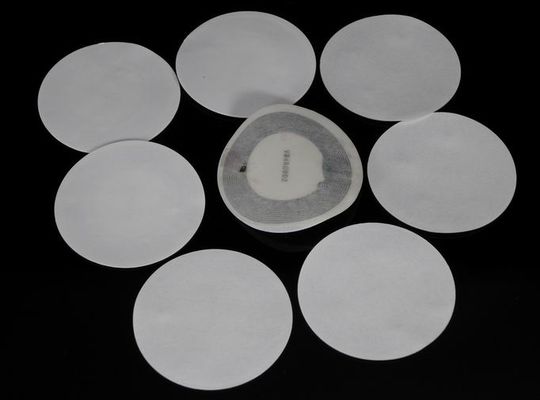

Product Images
