Name: Customized Size RFID Card Inlay Prelam HF Contactless Smart Card 13.56MHZ
Brand: White Smart Co., Limited
Availability: InStock

Home Products HF RFID Inlay

Customized Size RFID Card Inlay Prelam HF Contactless Smart Card 13.56MHZ

Product Details:

Place of Origin:	CHINA
Brand Name:	WS
Certification:	ROHS,REACH,POPS

Payment & Shipping Terms:

Minimum Order Quantity:	200-500pcs
Price:	Please contact us
Delivery Time:	5-7days
Supply Ability:	1,000,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Prelams	Printing Type:	Offset/Screen Printing/digital Printing,custom
Material:	PVC	Individualization:	Custom, Embossing Or Print Name, Number,date Etc
Application:	Club,advertisement,traffic,supermarket,parking,bank, Government
Highlight:	Customized Size RFID Card Inlay , HF RFID Prelam Customized Size

Customized Size RFID Card Inlay Prelam HF Contactless Smart Card 13.56MHZ

Product Specifications

Product name	Prelams
Printing Type	Offset/Screen Printing/digital Printing, custom
Material	PVC
Individualization	Custom, embossing or print name, number, date etc
Application	Club, advertisement, traffic, supermarket, parking, bank, government

Product Description

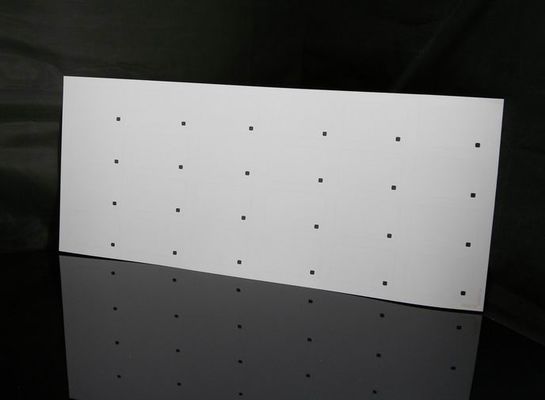

RFID Prelams - Middle sheet the smart card RFID card Prelams, Inlay in 2*2, 2*5, 4*6, 6*8 size

New customized size RFID Prelams, HF Contactless smart card, RFID card Inlay, 13.56MHZ RFID chip for smart card

RFID System Components

A scanning antenna
A transceiver with a decoder to interpret the data
A transponder - the RFID smart card - that has been programmed with information

Features Working Frequency: 125KHZ, 13.56MHZ Chip type: EM4200, series Material: PVC, PET Inlay Format: 24, 25, 55, 36, 37, 38, 48, 410, etc Thickness: 0.45± 0.02(FCP), 0.52± 0.02mm (W/B), etc. Antenna: Copper Antenna	User Environment Operating temperature: -20°C to +75°C Storage temperature: -20°C to +80°C Inlays per roll: 5,000 Package: Corrugated Carton Rolls per carton: up to 6 Weight: 0.95± 0.05kg/roll; 6.46± 0.3kg/carton
Performance Specifications Reading Distance: 1-15cm Data Storage Time: 10 years Application: smart card, RFID card, contactless card, contact-free card, door access control card, attendance card and parking card

Customization Options

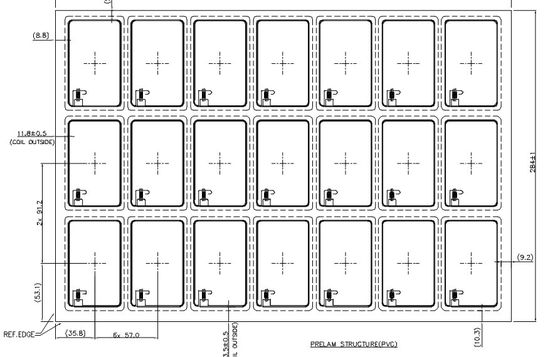

Common size of inlay including: 305mm×460mm, 320mm×464mm, 300mm×480mm, 390mm×480mm, 500mm×650mm is available.

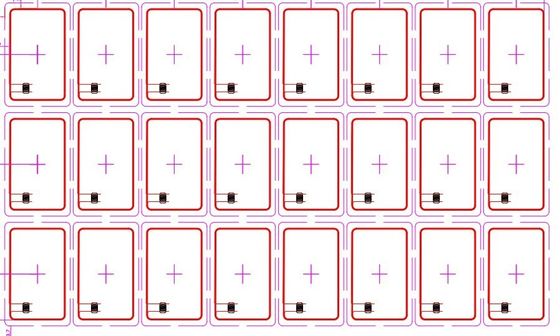

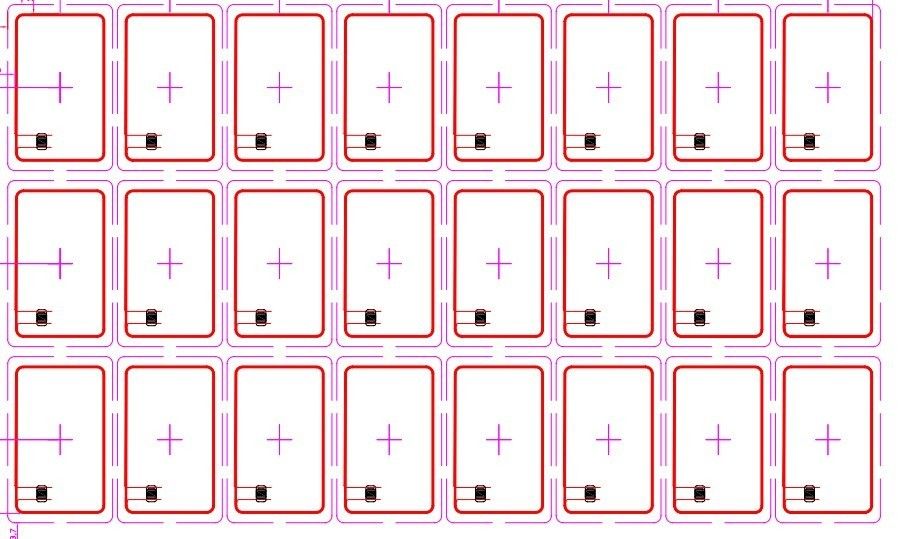

The thickness of inlay can be 0.35~0.60mm. Inside of the inlay, we adopt etched antenna or ultrasonic automatic submerged line coil for production process. Internal coil arrangement can be customized according to customer requirements.

We can print date, logo, etc. on the surface and it can be printed with wireframe. Outside of inlay can be cut into any size according to customer requirements.
