Laminated PVC Or PETG Sheet RFID Prelam Inlay 3 X 7 HF LF Operating Frequency

High-quality laminated PVC or PETG sheet RFID prelams containing RFID modules and antennas, available in both HF and LF operating frequencies. Ideal for various industrial and commercial applications requiring reliable RFID solutions.

• LF Frequency (125 kHz): Sheet size up to 600mm × 700mm | Thickness: 0.47mm ±0.03mm
• HF Frequency (13.56 MHz): Sheet size up to 600mm × 700mm | Thickness: 0.47mm ±0.03mm

• LF Operating Frequency: 125 kHz ±6kHz (adjustable 100kHz-150kHz)
• HF Operating Frequency: 13.56MHz Reader Standard (ISO/IEC 15693, ISO/IEC 14443)

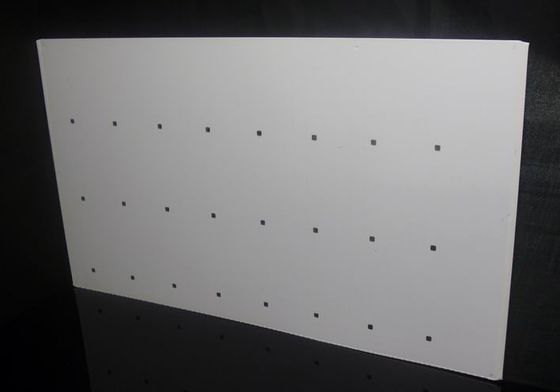

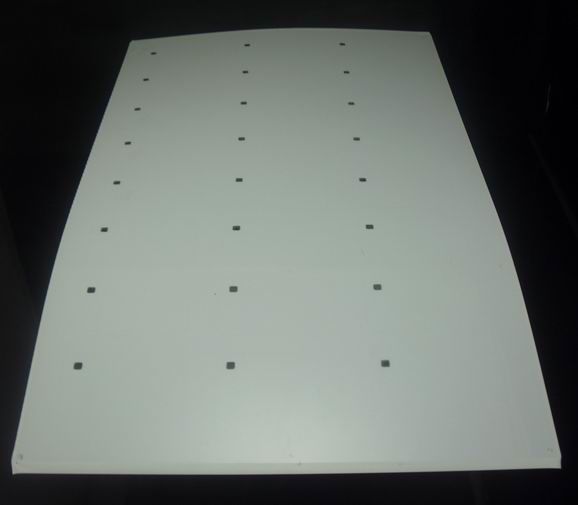

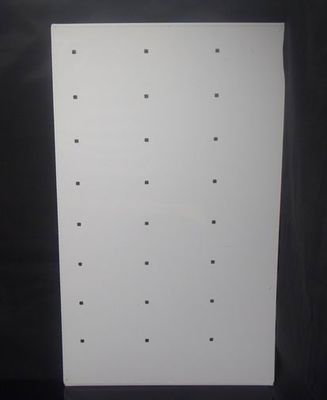

Copper wire antenna and module with white matte PVC or PETG sheet:

• PVC: Vicat 72°C
• PETG: Vicat -60°C

• 0.48mm thickness for 125kHz
• < 0.48mm thickness for 13.56MHz

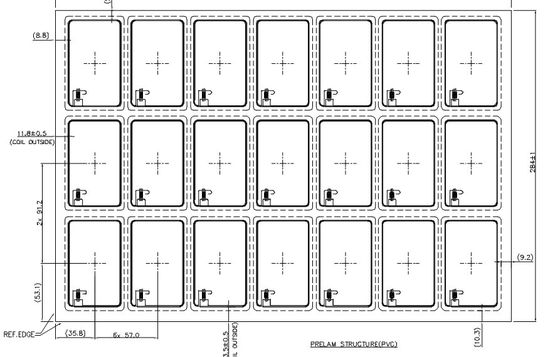

• Oval or round antenna configurations
• Custom layouts to customer specifications

PLM-XX (Pre-laminated Inlay, where XX denotes IC type)

• Payment Systems
• Container Logistics
• Goods and Inventory Management
• Position Identification
• Animal Identification
• Access Control Systems
• Security Systems
