Name: 540 Byte Memory PVC NFC RFID Card 13.56MHz With 0.8mm-0.84mm Thickness
Brand: White Smart Co., Limited
SKU: NFC
Availability: InStock

Home Products NFC Smart Card

540 Byte Memory PVC NFC RFID Card 13.56MHz With 0.8mm-0.84mm Thickness

Product Details:

Place of Origin:	CHINA
Brand Name:	WS
Certification:	ROHS,REACH,POPS
Model Number:	NFC

Payment & Shipping Terms:

Minimum Order Quantity:	200-500pcs
Price:	Please contact us
Packaging Details:	200pcs/box,1000pcs/Carton ,2000pcs/ Carton ,3000pcs/Carton
Delivery Time:	5-7days
Payment Terms:	T/T,Paypal,WU
Supply Ability:	1,000,000pcs per month

Contact Now

Detailed Product Description

Standard:

ISO14443A

Card:

NFC Smart Card

Printing:

CMYK

Highlight:

540 Byte Memory NFC Card

0.84mm Thickness NFC RFID Card

PVC NFC Card ISO14443A

540 Byte Memory PVC NFC RFID Card 13.56MHz With 0.8mm-0.84mm Thickness

Product Specifications

Chip model: 215
Memory: 540 byte
Reading Distance: Up to 100mm
Material: PVC, PET
Card Surface: Matte/gloss finish
Read/Write function: Read/Write
Protocol: ISO14443A
Operating Frequency: 13.56MHz
Housing: Lamination

Memory Configuration

215 EEPROM: 540 bytes, organized in 135 pages of 4 byte per page.

26 bytes reserved for manufacturer and configuration data
28 bits used for the read-only locking mechanism
4 bytes available as capability container
504 bytes user programmable read/write memory

Data Integrity Features

16 bits CRC per block
Parity bits for each byte
Bit count checking
Bit coding to distinguish between "1", "0" and "no information"
Channel monitoring (protocol sequence and bit stream analysis)

Technical Parameters

Attribute	Value
Standard	ISO14443A
Material	PVC/ABS/PET/Paper
Size	ISO CR80 standard (85.5mm x 54mm) or customized
Thickness	0.8-0.84mm
Minimum QTY	500pcs
Operating Frequency	13.56Mhz
Read Times	>100,000

Available Customizations

4 color off-set printing, magnetic stripe
Embossing number, signature panel, photo
Barcode, thermal printing
Gold/silver color scratch-off, series number punch
Hole punched, UV printing
Surface options: glossy, matte, frosting

Personalization Support

Offset Printing with CMYK or Pantone colors
Silk-screen printing with metallic, silver effect
Magnetic Stripe HiCo2750, HiCo4000 or LoCo300
Serial Number or UID number printing
Signature Panel, Barcode printing
Photo personalization, Chip encoding
Hologram, UV printing, Laser Logo, Laser Serial Number

Applications

Public transportation
Event ticketing
Loyalty systems
NFC applications

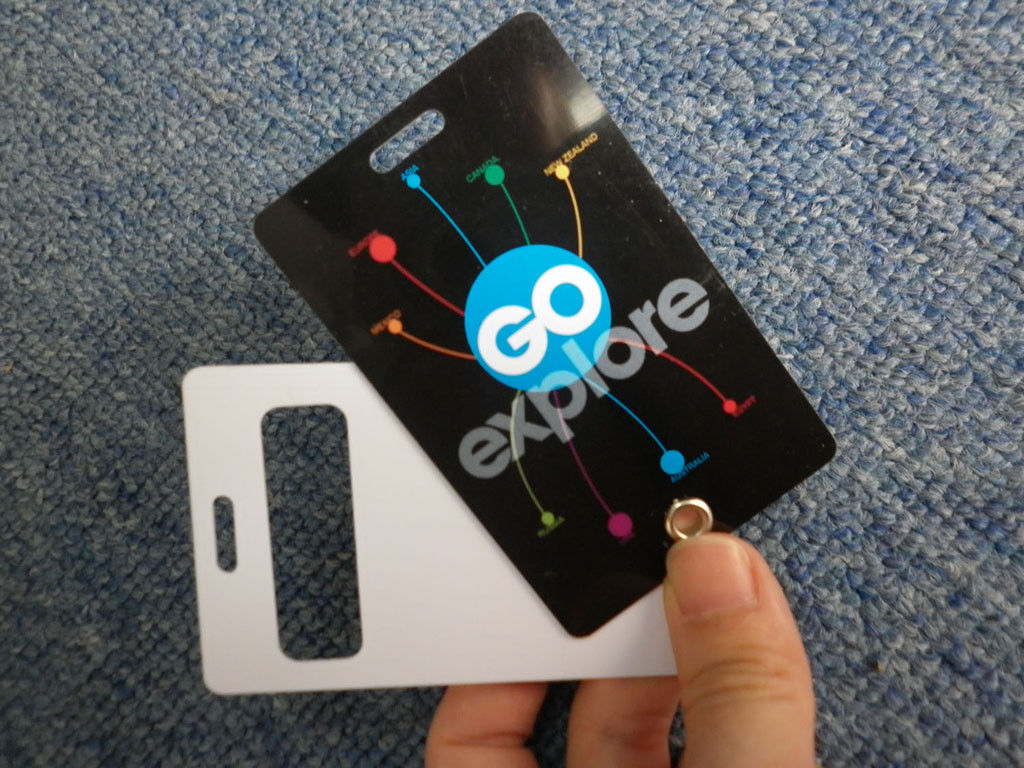

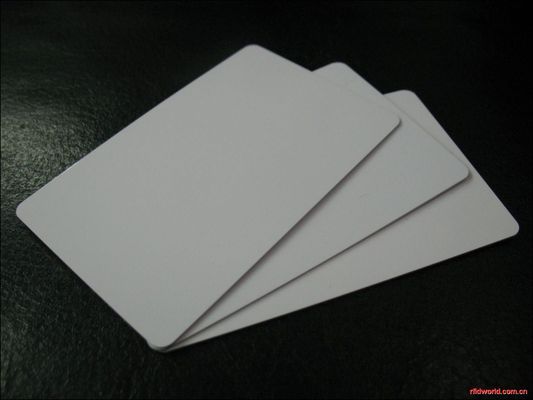

The showing picture is only for your reference of our product. All related to intellectual property rights of trademark belongs to trade mark companies.
