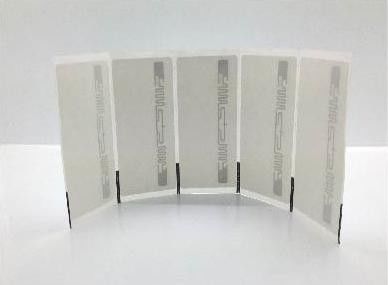

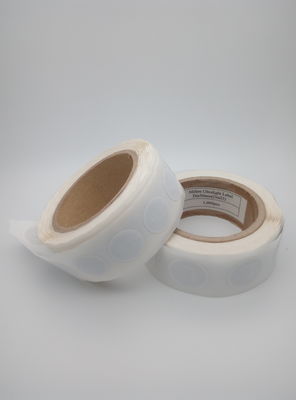

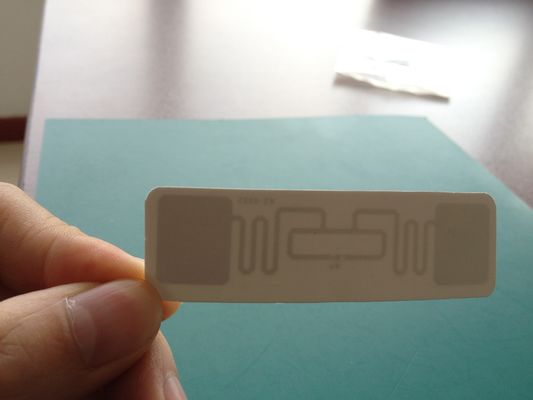

Blank H3 / H4 UHF RFID Sticker Tags Custom Smart Adhesive Rfid Tags For Logistic

Blank H3 / H4 UHF RFID Sticker Tags Custom Smart Adhesive Rfid Tags For Logistic

  • Blank H3 / H4 UHF RFID Sticker Tags Custom Smart Adhesive Rfid Tags For Logistic
  • Blank H3 / H4 UHF RFID Sticker Tags Custom Smart Adhesive Rfid Tags For Logistic
  • Blank H3 / H4 UHF RFID Sticker Tags Custom Smart Adhesive Rfid Tags For Logistic
Blank H3 / H4 UHF RFID Sticker Tags Custom Smart Adhesive Rfid Tags For Logistic
Product Details:
Place of Origin: CHINA
Brand Name: WS
Certification: ROHS,REACH,POPS
Model Number: H3/H4
Payment & Shipping Terms:
Minimum Order Quantity: 1,000PCS
Price: Please contact us
Delivery Time: 5-7days
Payment Terms: TT,PAYPAL,WU
Supply Ability: 1,000,000pcs per month
Contact Now Chat Now
Detailed Product Description
Paper: UHF Label PET: RFID UHF Label
Paper: ISO18000-6C UHF Gen 2
Highlight:

Smart RFID Sticker Tags

,

RFID Sticker Tags

,

UHF Adhesive Rfid Tags

Blank H3 / H4 UHF RFID Sticker Tags Custom Smart Adhesive RFID Tags For Logistic
Product Attributes
Attribute Value
paper UHF label
PET RFID UHF label
Paper ISO18000-6C UHF Gen 2
Product Description

H3 / H4 UHF Labels Custom Smart Adhesive Long Distance Blank Sticker

Chip Parameters
  • Frequency: 860~960MHz
  • Chip type: Alien H3
  • Working mode: read or write
  • Read distance: reader(1~6m) (Reader dependent)
  • Data retention: 10 years
  • Anti-collision: yes
Blank H3 / H4 UHF RFID Sticker Tags Custom Smart Adhesive Rfid Tags For Logistic 0 Blank H3 / H4 UHF RFID Sticker Tags Custom Smart Adhesive Rfid Tags For Logistic 1
Product Specifications
Product Name H3/H4 UHF long distance blank sticker/UHF label/smart adhesive label in custom design
Material Adhesive glossy paper / PVC / PET
Dimension Size and shape will be customized. Normal sizes: 35x35mm, 50x50mm, 85.5x54mm, 75x45mm, 37x22mm, 32x32mm, 25x25mm, dia22mm, dia25mm, dia30mm, dia35mm, or customized size
Available Chip HF13.56mhz: RFID Classic®1k, RFID Ultralight®, 203, 210, 213, 216, Topaz512
UHF860-960mhz: Alien h3, Imping, G2XL G2XM
Antenna Copper & etching Aluminum material
Product Craft Logo printing: Digit printing, offset printing and silk printing
Number printed will be available (Serial No & Chip UID)
Chip program/encode will be available (URL, TEXT, Number and Vcard)
Epoxy, Customize size and shape, Hole punch etc
Working Environment Working life: 5-10 years
Store temperature: -25°C ~50°C
Humidity: 20% ~ 90%RH
Working temperature: -40°C ~ 65°C
Reading & Writing Distance 6m for UHF (depending on field strength and antenna geometry)
Application Supply Chain Management
Distribution Logistics
Product Authentication
Asset Inventory and Tracking
Baggage Handling and Tracking
Item Level Tagging
The showing picture is only for your reference of our product. All related to intellectual property rights of trademark belongs to trade mark companies.
Higgs-3 Features
  • Meets EPCglobal Gen2 (V 1.2.0) as well as ISO/IEC 18000-6C
  • Worldwide operation in the RFID UHF bands (860-960 MHz)
  • 800-Bits of Nonvolatile Memory
    • 96-EPC Bits, extensible to 480 Bits
    • 512 User Bits
    • 64 Bit Unique TID
    • 32 Bit Access and 32 bit Kill Passwords
  • Pre-Programmed with a unique, unalterable 64-bit serial number
  • User Memory can be Block Perma-Locked as well as read password protected in 64 Bit Blocks
  • Supports all Mandatory and Optional Commands including Item Level Commands
  • Custom Commands for high speed programming; 30 tags per second for the 96-bit EPC number
  • Low power operation for both read and program
  • Exceptional operating range, up to 10m with appropriate antenna
Company Capacity

We always focus on providing end users and distributors with better products, faster delivery and more favorable prices. We offer products as Inlay, Label, On-Metal Tag, Laundry Tag, Jewelry Tag, paper Ticket, Token, and Wristband etc. Also we can offer custom printed, roll, fanfold, sheet, digital and stock labels, inlay or tags. Our commitment is to meet your most demanding Tag needs.

FAQ
1. How to order?
  1. Client supply the requirement details & vector artwork
  2. Quotation
  3. Order is confirmed
  4. We send client the PI and artwork proof
  5. PI and artwork proof are confirmed by client, then do the payment
  6. Start production once the payment is confirmed
  7. QC
  8. Delivery by DHL/UPS/Fedex/TNT, or by Sea, or by Air
2. Can we get free samples?

Yes, we offer free samples, with shipping and taxes paid by the buyer.

3. What is the minimum order quantity?

The MOQ for dry inlays is 1000pcs, for wet inlays or labels is 1000pcs, for other special tags is 1000pcs, for cards is 1000pcs.

4. What is the lead time?

7-10 days below 20,000pcs after T/T payment, for other products please contact us for details.

5. What is the payment term?

The payment term is T/T, PayPal, Western Union before shipment.

6. What chip inside of your product?

As your request, normally SLE6636/36E original. You can choose ISSI chip series, SLE chip series, 24C chip series and AT88SC chip series etc.

7. After-sale service:
  • All products will have been strictly quality checked in house before packing
  • All products will be well packed before shipping
  • All our products have 1 year warranty. And we sure the product will be free from maintenance within warranty period
