Name: S20 Chip Universal RFID Key Cards 13.56MHZ 0.8-0.9mm Thick Hotel Room Key Card
Brand: White Smart Co., Limited
Availability: InStock

Home Products RFID Key Cards

S20 Chip Universal RFID Key Cards 13.56MHZ 0.8-0.9mm Thick Hotel Room Key Card

Product Details:

Place of Origin:	CHINA
Brand Name:	WS
Certification:	ROHS,REACH,POPS

Payment & Shipping Terms:

Minimum Order Quantity:	200-500pcs
Price:	Please contact us
Packaging Details:	200pcs/box,2000pcs/carton,3000pcs/carton
Delivery Time:	5-7days
Payment Terms:	TT,PAYPAL,WU
Supply Ability:	1,000,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Hotel Key Card	Antenna Size:	Customized
Reading Distance:	0---10CM	Write Endurance:	100, 000 Cycles
Frequency:	13.56MHZ	Material:	PVC/PET
Chip:	RFID Mini S20	Memory:	320bytes
Thickness:	0.8-0.9mm
Highlight:	S20 Chip RFID Key Cards , 0.9mm Thick Universal Hotel Key Card , Hotel Room Key Card 13.56MHZ

S20 Chip Universal RFID Key Cards 13.56MHZ 0.8-0.9mm Thick Hotel Room Key Card

Product Specifications

Attribute	Value
Product Name	hotel key card
Antenna Size	customized
Reading Distance	0-10CM
Write Endurance	100,000 cycles
Frequency	13.56MHZ
Material	PVC/PET
Chip	RFID mini S20
Memory	320bytes
Thickness	0.8-0.9mm

Product Description

High quality PVC/PET RFID hotel card room key card with RFID mini S20 chip, providing affordable access control solutions for hotels, gyms, and other businesses. Designed to operate with key card door lock systems.

Compatible With Major Key Card Door Lock Brands

Onity
Kaba
ILCO
Saflok
Tesa
Sargent
Cisa
TimeLox
Miwa
Inhova

Technical Details

Chip	RFID mini S20
Material	PVC/PET
Memory	320bytes
Antenna	Aluminium etching antenna/copper antenna
Thickness	0.8-0.9mm
Reading Distance	0-10cm (depends on reader applied)
Operation Temp.	-20°C~+65°C
Storage Temp.	-25°C~+65°C
Data Storage	≥10 years

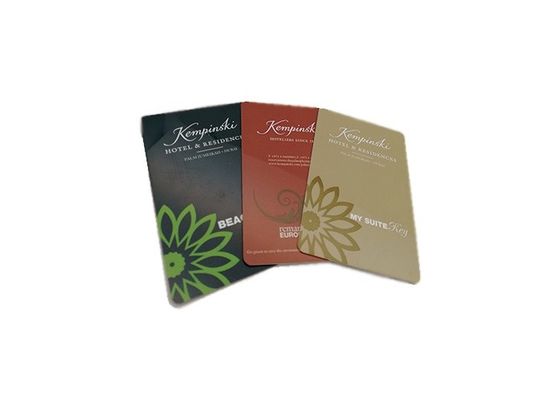

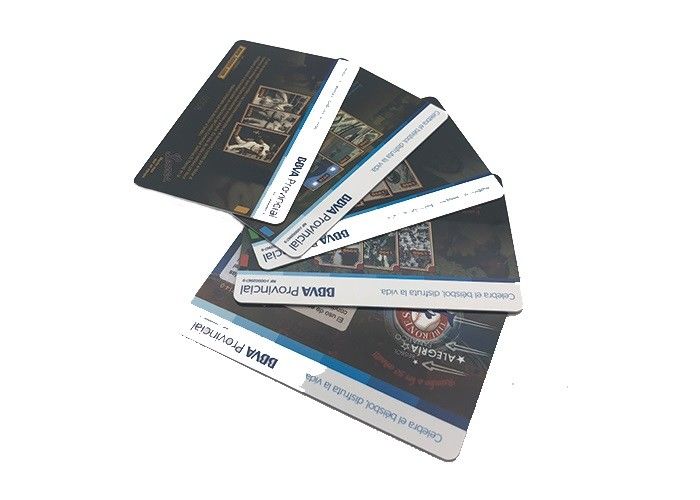

Product Images

RFID Mini S20 Features

RFID RF Interface (ISO/IEC 14443 A)

Contactless transmission of data and supply energy (no battery needed)
Operating distance: Up to 100mm (depending on antenna geometry)
Operating frequency: 13.56 MHz
Data transfer: 106 kbit/s
Data integrity: 16 Bit CRC, parity, bit coding, bit counting
Anticollision
Typical ticketing transaction: < 50 ms (including backup management)

EEPROM

320 Byte, organized in 5 sectors with 4 blocks of 16 bytes each
User definable access conditions for each memory block
Data retention of 10 years
Write endurance 100,000 cycles

Security

Mutual three pass authentication (ISO/IEC DIS 9798-2)
Individual set of two keys per sector to support multi-application with key hierarchy
Unique serial number for each device

Frequently Asked Questions

Q1: I'm interested in your products, but now I'm out of China; could you offer you labels to my country?

A1: We have full exportation experience and can arrange delivery to your location by sea, air, or express depending on your needs.

Q2: How can I get the samples?

A2: We provide free samples for existing products (1-2 day lead time, customer pays shipping). Custom samples require payment and have a 5 day lead time.

Q3: Is it possible to custom the labels with my own design?

A3: Yes, simply send us your drawings or artworks and we can produce custom designs.

Q4: What is your MOQ?

A4: Minimum order quantity is 1000 pieces for each label sticker design.

Q5: Do you provide OEM service?

A5: Yes, we currently provide OEM services including specific packaging for several brands.

Q6: What is your manufacture lead time for our order?

A6: Normal lead time is 15-20 days. Urgent requests can be accommodated upon discussion.

Q7: How can I release the payment to you?

A7: We accept payment via Paypal, Western Union, or Bank Account.

Note: Product images are for reference only. All intellectual property rights of trademarks belong to their respective owners.
