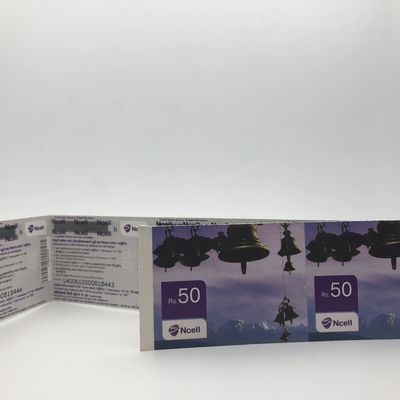

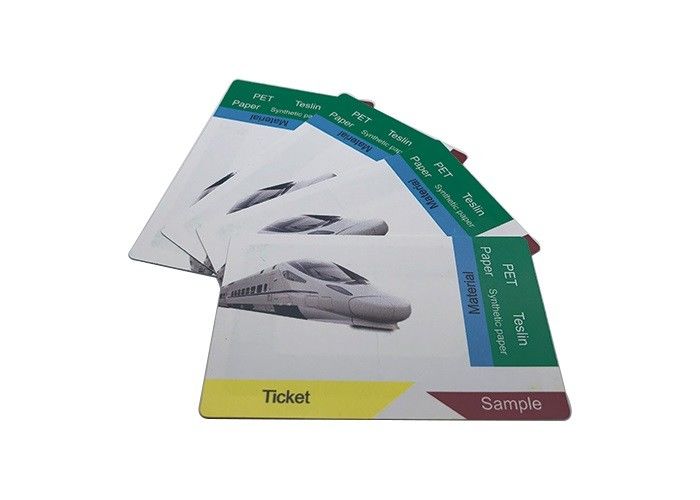

Waterproof PVC / Paper RFID Ticket Card 13.56Mhz With Ultualight EV1 Chip

Material: PVC/Paper

Size: Smallest: 14×20mm, Biggest: 170×250mm

Chip: Ultralight EV1

Frequency: 13.5-14.5MHz

Read Distance: 1-10cm

Reading time: >10,000 times

Protocol: ISO 14443A / ISO 15693

• Durable & waterproof
• Resistant to high temperature and chemical environments
• Suitable for harsh environments
• Card Surface: Matte/Glossy finish
• Housing: Lamination

• Signature panel
• Magnetic strip
• Barcode
• Embossed number
• Pearlescent printing
• Metallic printing
• QR code printing

• Contactless transmission of data and supply energy
• Operating distance up to 100 mm depending on antenna geometry and reader configuration
• Operating frequency of 13.56 MHz
• Data transfer of 106 kbit/s
• Data integrity of 16-bit CRC, parity, bit coding, bit counting
• True anticollision
• 7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)
• Typical ticketing transaction: < 35 ms
• Fast counter transaction: < 10 ms

• 640-bit or 1312-bit, organized in 20 or 41 pages with 4 bytes per page
• First 512 bits compatible to MF0ICU1
• Field programmable read-only locking function per page for the first 512 bits
• Field programmable read-only locking function per 2 pages above page 15
• 32-bit user definable One-Time Programmable (OTP) area
• 384-bit or 1024-bit freely available user Read/Write area (12 or 32 pages)
• 3 independent, true one-way 24-bit counters on top of the user area
• Anti-tearing support for counters, OTP area and lock bits
• Configurable password protection with optional limit of unsuccessful attempts
• ECC based originality signature
• Data retention time of 10 years
• Write endurance 100,000 cycles
• Write endurance for one-way counters 1,000,000 cycles

We focus on providing end users and distributors with better products, faster delivery and more favorable prices. Our product range includes:

• Inlay
• Label
• On-Metal Tag
• Laundry Tag
• Jewelry Tag
• Paper Ticket
• Token
• Wristband

We also offer custom printed, roll, fanfold, sheet, digital and stock labels, inlay or tags to meet your most demanding RFID needs.
