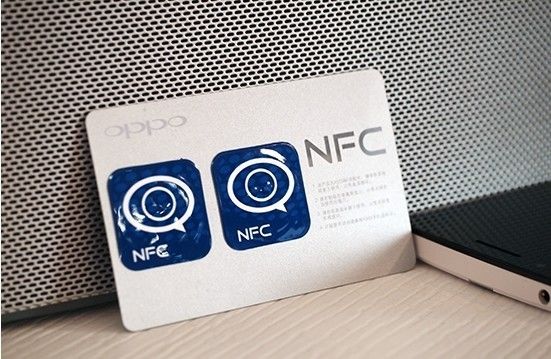

Name: OEM NDEF 203 NFC Smart Card 13.56MHZ ISO 14443A Protocl Contactless Card
Brand: White Smart Co., Limited
SKU: NFC RFID card
Availability: InStock

Home Products NFC Smart Card

OEM NDEF 203 NFC Smart Card 13.56MHZ ISO 14443A Protocl Contactless Card

Product Details:

Place of Origin:	CHINA
Brand Name:	WS
Certification:	ROHS,REACH,POPS
Model Number:	NFC RFID card

Payment & Shipping Terms:

Minimum Order Quantity:	200-500pcs
Price:	Please contact us
Packaging Details:	200pcs/box,1000pcs/Carton ,2000pcs/ Carton ,3000pcs/Carton
Delivery Time:	5-7days
Payment Terms:	T/T,Paypal,WU
Supply Ability:	1,000,000pcs per month

Contact Now Chat Now

Detailed Product Description

Product Name:	NFC Smart Card	OEM/ODM:	Available,welcome Customized Logo Are Welcome
Material:	PVC	Type:	RFID Smart Card
Operating Frequency:	13.56MHZ	Protocl:	ISO 14443A
Highlight:	OEM Contactless NFC Smart Card , ISO 14443A Protocl NFC Smart Card , NDEF 203 NFC Smart Card

OEM NDEF 203 NFC Smart Card 13.56MHZ ISO 14443A Protocl Contactless Card

Product Specifications

Attribute	Value
Product Name	NFC Smart Card
OEM/ODM	Available, customized logo welcome
Material	PVC
Type	RFID smart card
Operating frequency	13.56MHZ
Protocol	ISO 14443A

Product Description

NDEF 203 NFC Smart Card, RFID Contactless Card 13.56MHZ

Contactless energy and data transfer. Communication can be established only when the IC is connected to a coil. Form and specification of the coil is out of scope of this document. When positioned in the RF field, the high speed RF communication interface allows the transmission of the data with a baud rate of 106 kbit/s.

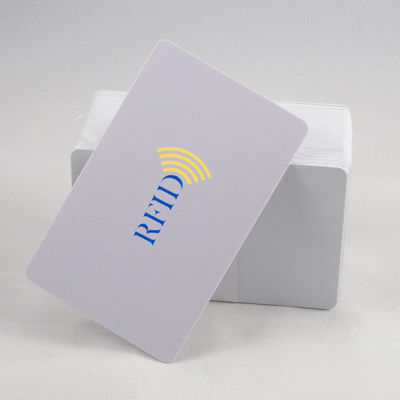

NFC contactless RFID smart card

Key Features

ISO 14443A protocol
Operating frequency: 13.56MHZ
168 bytes memory in 42 pages
NFC Forum Type 2

EEPROM Specifications

168 bytes of total memory, divided in 42 pages (4 bytes each)
144 bytes of user r/w memory area, divided in 36 pages (4 bytes each)
Field programmable read-only locking function per page for first 64 bytes
Field programmable read-only locking function per block
32-bit user definable One-Time Programmable (OTP) area
16-bit counter
Data retention of 5 years
Write endurance 10000 cycles
