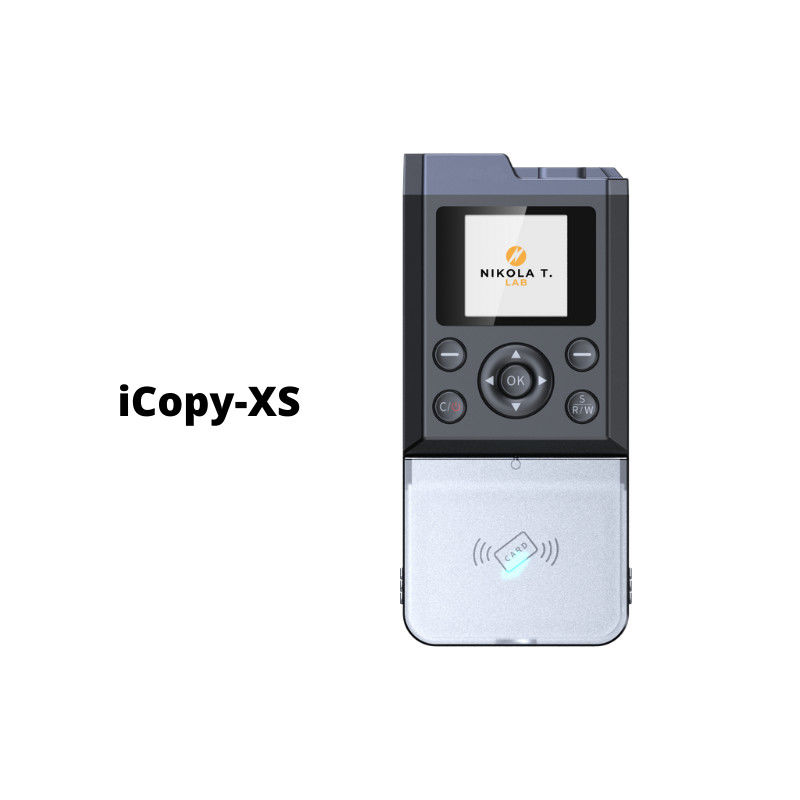

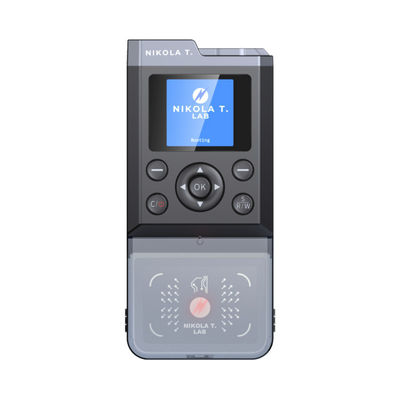

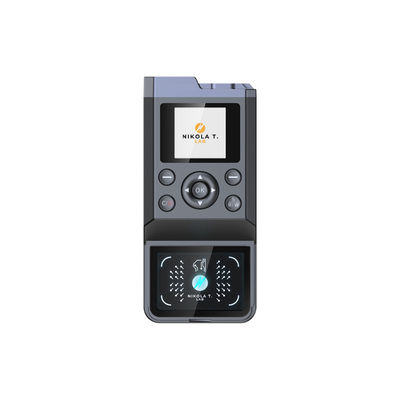

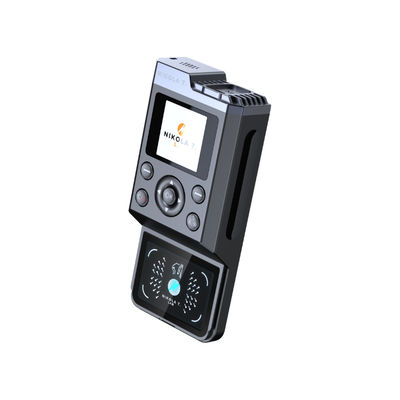

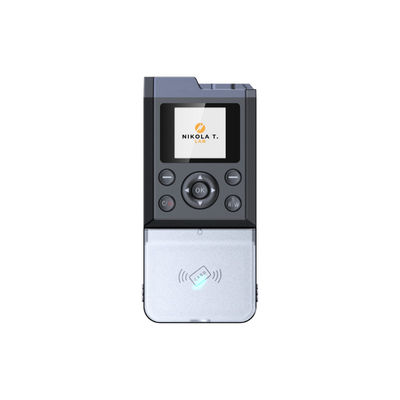

Name: 1.3 Inches Screen ICopy XS RFID Card Copier Writer 13.56MHz ISO14443A Bluetooth
Brand: White Smart Co., Limited
Availability: InStock

Home Products RFID Card Reader

1.3 Inches Screen ICopy XS RFID Card Copier Writer 13.56MHz ISO14443A Bluetooth

Product Details:

Place of Origin:	CHINA
Brand Name:	WS
Certification:	ROHS,REACH,POPS

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Please contact us
Delivery Time:	5-7days
Payment Terms:	TT,PAYPAL,WU
Supply Ability:	1,000pcs

Contact Now Chat Now

Detailed Product Description

Type:	Access Control Proximity RFID Card Reader, Decoding Smart Key Machine	Printing:	Full Color Printing,Offset Printing
Reading Distance:	3~10cm	Connection:	Bluetooth
Application:	Access Control System,Smart Lock / Access Control / Animal ID And Waste Management	Material:	Plastic,Alloy Metal
Card Type:	IC,PSAM & RFID Card,RF	Dimension:	120.5X55.2X24MM
Weight:	113.5g
Highlight:	ICopy XS RFID Card Copier , 13.56MHz RFID Card Copier , 1.3 Inches Screen RFID Copier Writer

1.3 Inches Screen ICopy XS RFID Card Copier Writer 13.56MHz ISO14443A Bluetooth

Product Specifications

Attribute	Value
Type	Access Control Proximity RFID Card Reader, Decoding Smart key machine
Printing	Full color printing, Offset Printing
Reading distance	3~10cm
Connection	Bluetooth
Application	Access Control System, Smart Lock / Access control / Animal ID and Waste Management
Material	Plastic, Alloy metal
Card type	IC, PSAM & RFID card, RF
Dimension	120.5X55.2X24MM
Weight	113.5g

Product Overview

ICopy XS RFID Copy Reader with ISO14443A Bluetooth

iCopy-XS is a "super" automated handheld RFID copier based on Proxmark3. iCopy-XS can read, crack, duplicate, sniff and simulate without the use of a PC.

Currently, iCopy-XS reads up to 39 types of RFID system cards and copies up to 37 types of RFID cards which is the highest in the world.

Screen: Refresh rate: 50Hz Resolution: 240x240 Size: 1.3 inches RFID system HF(13.56MHz): ISO14443A/ISO14443B/ISO15693/PICOPASS LF(125/134kHz): ASK/FSK/PSK

Physical dimension: Height: 120.5mm Width: 55.2mm Thickness: 24mm Antenna thickness: 9.7mm Weight: 113.5g

Operating System: NIUI 1 Based on Linux.

Packing list: iCopy-XS x1 USB Type-C data cable x1 Box of RFID Cards x1 Manual x1

Exploring Your iCopy-XS

Getting Started

Auto Copy: Automatic scanning, reading, and writing of all information of the original RFID Tag to a new UID card/tag.
Scan Tag: Scanning of tag and getting the basic information of the tag type.
Read Tag: Reading of all available information of tag (including blocks and sectors).
Sniff Traffic: Sniffing of locked sector keys for cards/tag.
Simulation: Simulation of Low and High Frequency RFID Tags

PC-MODE: Enter PC-Mode for expert mode
Backlight: OFF/ON Backlight of screen
Diagnosis: Running various tests to check
Volume: Adjusting of volume
About: Serial no. of ICOPY-XS and firmware update

Innovative Expert Mode (PC-Mode)

In PC-Mode, after connecting to the computer, open the client in the built-in U disk, you can directly use the Proxmark3 universal CMD to operate. It is convenient for users to directly operate the equipment in a more professional way.

Hardware Specifications

Charging and battery: Battery capacity: 2000mAh 7.4Wh Charging interface: USB type-C double-sided charging interface Charging power: 10W (MAX) Charging time: 2 hours

OTG function: support Standby time: 4.5 hours

Processor and memory: CPU technology: Cortex-A7 CPU frequency: 600MHz GPU: ARM Mali Memory: 256MB+4GB 256MB+8GB 256MB+16GB
