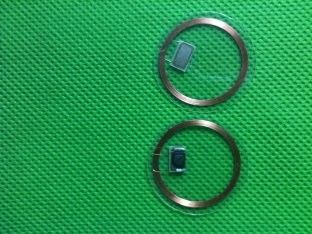

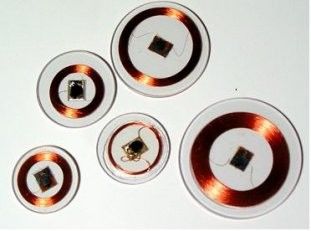

PVC Plastic Programmable RFID Tags Access Control 125KHz 13.56MHz 512 Bits R/W

Transparency tag Specification

Model No.       CTAG18       CTAG25       CTAG30

Reading Distance     60mm      70mm          80mm

Size                 ø18mm           ø25mm            ø30mm

Operating  temperature

-40oC to 70oC    -40oC to 70oC      -40oC to 70oC

Storage  temperature

-40oC to 80oC     -40oC to 80oC      -40oC to 80oC

Material            PVC                 PVC                 PVC

Water proof

Y                   Y                     Y

Technology

GK4001 (125KHz, 64bit, R/O)

Y                   Y                      Y

EM4102 (125KHz, 64bit, R/O)

Y                  Y                      Y

I-Code SLI (13.56MHz, 1024bit, R/W)

Y                  Y                      Y

RFID S50 (13.56MHz, 1KByte, R/W)           Y                 Y                     Y

Temic E5557 (125KHz, 330bit, R/W)

  Y                 Y                     Y

Contactless Read / Write

13.56 MHz

512 bits R/W

According the file

Common Usage

Anticounterfeiting, Access control, Industrial transponder

Standard Deployment

Attached to object or inserted into object

Tested Read Range

2 - 4 cm ( 1- 2 in.)

Multi-Detection

No

Max read quantity

1 tags/sec

Size

Diameter: F22mm×1mm

Material

PVC plastic

Color

White

Weight

0.5 g

Compliance

RFID Ultralight® or other compatible tags

Operating Specifications

Temperature:storage at Storge at - 55°C to 100°C, Operating at -40°C to 85°C
