Product Details:
|
| Color: | Customized | Size: | Dia 30mm, 70*80mm, 104*74mm, 100*75mm, Ect |
|---|---|---|---|
| Material: | TPU | Write Endurance: | 100,000 Cycles |
| Model: | More Than 6 Different Models | Data Retention: | 10 Years |
| Frequency: | HDX | Type: | Contactless Read/Write |
| Highlight: | TPU Material RFID Ear Tag,134.2Khz Round Livestock Animal Tag |
||
Maximize Efficiency And Productivity HDX/FDX 134.2khz RFID Ear Tag Passive Round Livestock Animal Tag
134.2Khz RFID Ear Tag is designed for livestock management which is effective to keep tracking of livestock, such as sheep and deers.It helps ranchers to manage their sheep easily and time-saving, not only on counting sheep numbers, but also record their vaccine, growth, weight and so on.
| Parameter | |
| Material | TPU |

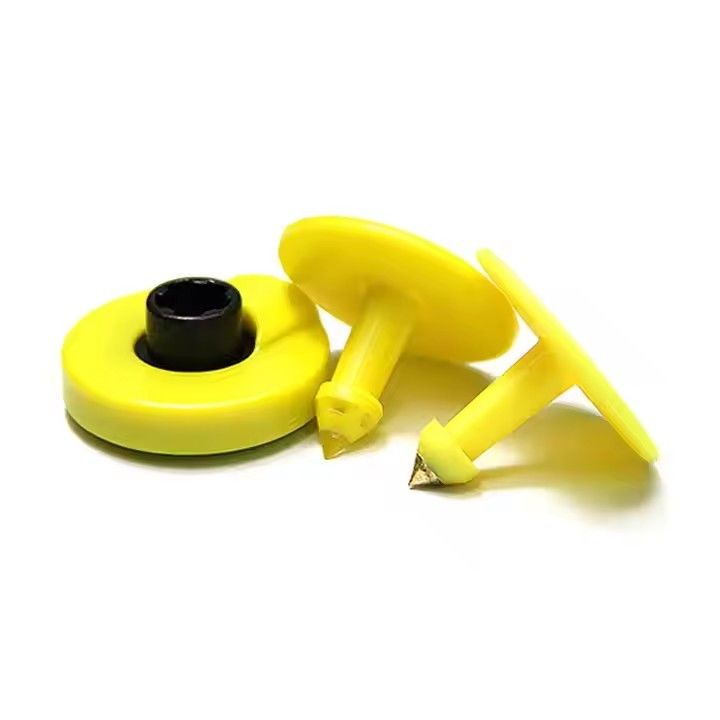

| Set | Female tag + Male tag |
| Dimension | Dia 30mm, 70*80mm, 104*74mm, 100*75mm, ect |
| Color | Yellow, or customized |
| Working temperature | -40℃~ +85℃ |
| Working Humidity | ≤ 90% |
| Performance Parameters | |
|
Chip Available
|
LF Chip: EM4305 |
| HF Chip: NFC | |
| UHF Chip: Alien H3, Impinj Monza | |
| Working Frequency | 125KHz, 134.2KHz, 13.56MHz, 860-960MHz |
| Supported Standard | ISO11784/785, ISO14443A, ISO18000-6C |
| Reading Distance | 1-5cm(LF/HF), 1-5M(UHF), depends on reader and tag size |
| Memory Capactity | 256 bits, 512bits, ect |
| Working Mode | Read-Write |
| Data Retention | 10 years |
| Write Endurance | 100,000 times |
| Anti-collision |
Able to read multiple tags at the same time(UHF) |
Animal electronic tag, a radio frequency and micro-power integrated circuit technology, made after a special packaging process markers, such markers can be implanted in animals can also swallowed the stomach, or hung on the ear, legs, collaborative management by the the animals globally unique identification of the identity card number and the back-end database, can the animal was born, reared, quarantine, veterinary medicine, nutrition information is written and read, not only to facilitate unified management andeffective traceability data management, to prevent the occurrence of infectious diseases in animal populations.
Product Packaging:
The Programming RFID Tags product comes in a sturdy cardboard box with foam inserts to protect the tags during shipping. The box is labeled with the product name, quantity, and a barcode for easy identification.
Shipping:
Orders for the Programming RFID Tags product are shipped via FedEx or UPS. Shipping options include standard ground, 2-day, or overnight delivery.
Customers will receive a tracking number via email once the order has shipped. Shipping fees will be calculated at the time of checkout and are based on the delivery location and shipping speed selected.
