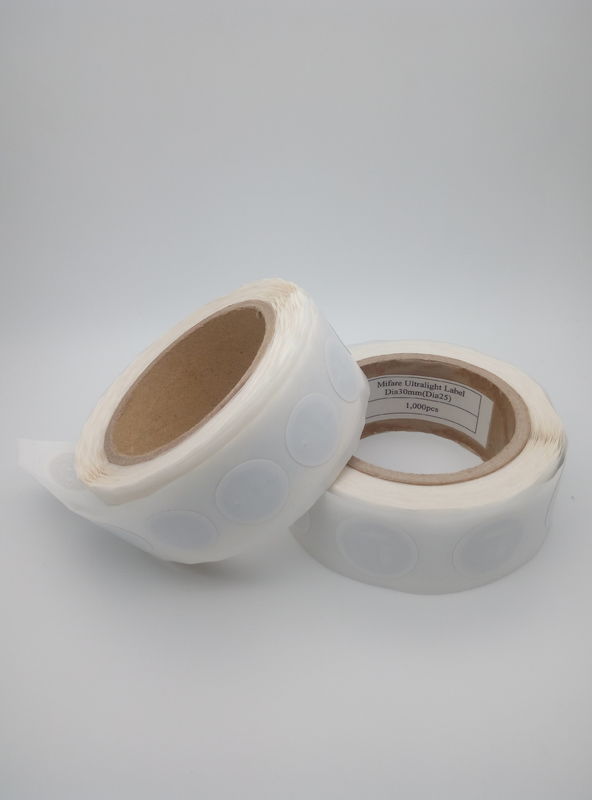

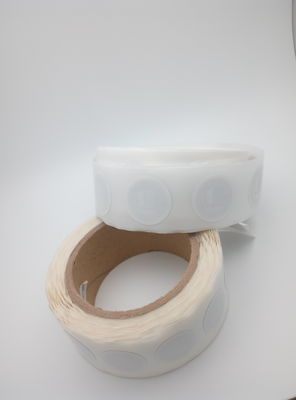

Ultralight-C Printable RFID Chip Sticker Roll dia25mm Anti Thief Rfid Tracking Stickers

RFID Label White Blank Tag RFID Ultralight-C dia25mm ISO14443A anti-thief security Paper Label

• Material: Paper
• Dimension: dia25mm
• Chip: RFID Ultralight-C
• Working Environment:
  • Working life: 5-10 years
  • Store temperature: -25°C ~80°C
  • Humidity: 20% ~ 90%RH
  • Working temperature: -40°C~ 70°C
• Reading & Writing distance: 2-5cm for HF (depending on field strength and antenna geometry)
• Application: Library label, Archives management, Warehouse Management, Anti-theft security, etc.

• Long read range due to high chip sensitivity
• Ease of tag assembly due to high chip input capacitance
• Consistent performance on different materials
• Read protection
• Wide temperature range: -40°C up to +85°C

RFID RF Interface (ISO/IEC 14443 A)

• Contactless transmission of data and supply energy
• Operating distance up to 100 mm depending on antenna geometry and reader configuration
• Operating frequency of 13.56 MHz
• Data transfer of 106 kbit/s
• Data integrity of 16-bit CRC, parity, bit coding, bit counting
• True anticollision
• 7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)
• Typical ticketing transaction: < 35 ms
• Fast counter transaction: < 10 ms

EEPROM

• 1536-bit total memory
• 512-bit compatible to MF0ICU1
• 36 pages, 1152-bit user r/w area
• Field programmable read-only locking function per block
• Field programmable read-only locking function per page for first 512-bit
• 16-bit one-way counter
• 32-bit user definable One-Time Programmable (OTP) area
• Write endurance 100000 cycles
• Data retention of 10 years

We always focus on providing end users and distributors with better products, faster delivery and more favorable prices. We offer products including Inlay, Label, On-Metal Tag, Laundry Tag, Jewelry Tag, paper Ticket, Token, and Wristband etc. We also offer custom printed, roll, fanfold, sheet, digital and stock labels, inlay or tags. Our commitment is to meet your most demanding Tag needs.
