860MHz-960MHz Frequency Rfid Dry Inlay 105x6mm With 4.5m Reading Distance

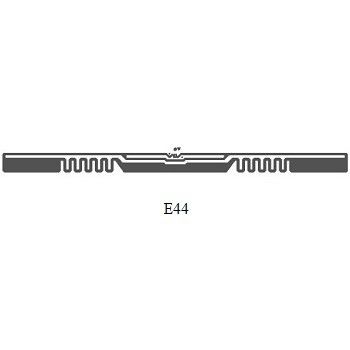

      860-960MHz frequency, 4.5cm reading distance,105*6mm antenna size dry Inlay E44

    1. Chip:Impinji Monza 4

    2. Die Cut Size:105*6mm

    3. Environmental: ROHS compliant

    4. Data storage: >10 years

    5. Re-write: 100,000 times

    6. Fixture: 3M adhesive

    7. Customization: Company logo print

    8. Application: Assets statistics management, small equipment management, firearms management, drug         management, etc.

• Handling
• Inlays with ink marks are defective, do not use.
• RFID Inlays or labels are sensitive product, do not bend or stretch
• Static-free bag will be use for packing; always keep environmental static charge to a minimum.
• White Smart RFID reserves the right to modify, change, supplement or discontinue product offerings at any time without notice
• All products from White Smart RFID should be tested by the customer/user thoroughly to ensure the product meets the particular requirements. InlaySolution does not represent that this product is fit for any particular purpose or use.

Alien Model Features

Impinji Monza 4

• EPCglobal and ISO 18000-6C compliant
• QT™ technology—protects business sensitive data while assuring consumers of privacy
  • Private/Public data profiles—two different memory maps that enable tag owners to control exposure of data
  • Short-range option to prevent unauthorized access
• Impinj’s field-rewritable NVM (optimized for RFID) provides 100,000-cycle/50-year retention reliability
• Write rate of 5 ms for 32-bit writes enables 1200 tags/minute programming
• Extended temperature range (-40°C to +85°C) for reliable performance under hard conditions
• Available memory options to support large user-memory applications

Packing detalis below:

Qty/Roll (Actual Qty as per Shipping Mark)
12,800±300pcs/roll; 1roll/carton

Packaging
A. Use two lines of 25mm interleaf to protect IC and antenna.
B.Keep away from water, collision and static.
C. Delivery with the package of static-free bag.
