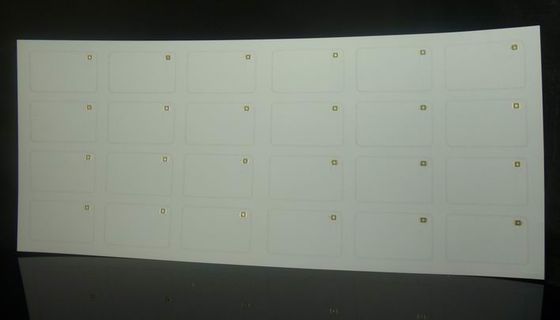

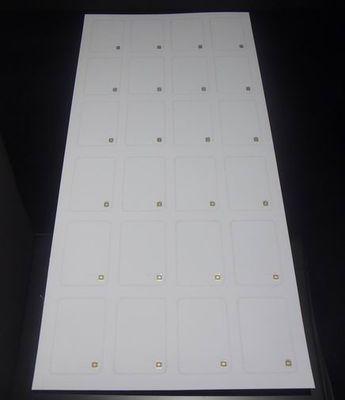

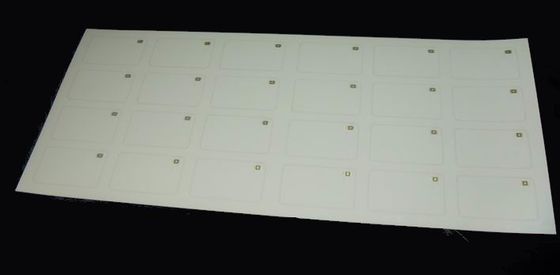

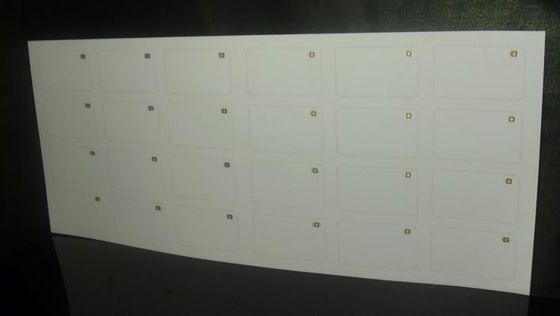

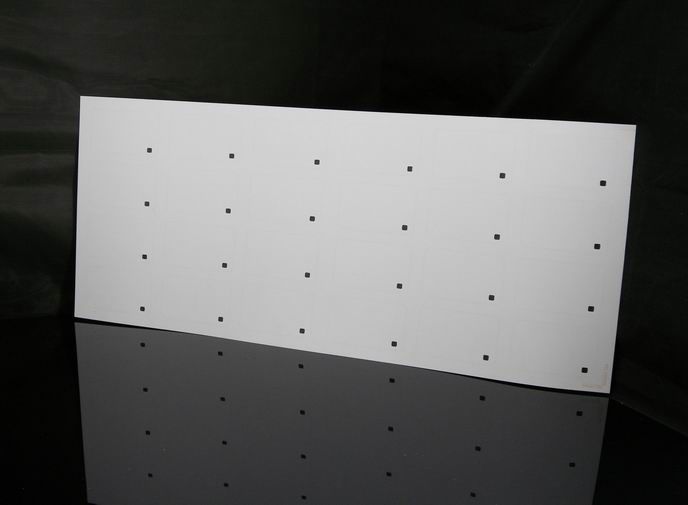

White Matt PVC or PETG HF RFID Inlay Sheet RFID Prelam 4 x 6 Customized

Laminated White Matt PVC or PETG Sheet RFID HF Inlay Prelams 4x6 containing a RFID module and antenna.

MECHANICAL DIMENSIONS

              LF operating frequency (125 kHz)
Sheet size: Maximum 600mm x 700mm
Thickness: 0.47 mm ±0.03mm*

              HF operating frequency (13.56 Mhz)
Sheet size: Maximum 600mm x 700mm
Thickness: 0.47mm ±0.03mm*

CHIP TYPE

 EM series, Atmel series, Infineon series

ELECTRICAL

 LF operating frequency: 125 kHz** ±6kHz

 HP operating frequency: 13.56MHz Reader Standard (ISO/IEC 15693, ISO/IEC 14443)

VICAT

 PVC: Vicat 72°C

 PETG: Vicat -60°C

MATERIAL

Cooper wire antenna and module with white matt PVC or PETG sheet

OPTIONS

  0.48 mm thickness for 125kHz

  < 0.48 mm thickness for 13.56MHz

  Oval or round antenna

  Customer specific layout

TYPE NUMBER

 PLM-XX (Pre-laminated Inlay, XX denotes IC)

* module area and blank area has a < 0.05mm thickness difference.
** frequency adjustment 100kHz - 150KHz

l       RFID has already been applied successfully in the following areas:

 Payment Systems

 Container Logistics

 Goods and Inventory Management

 Position Identification

 Animal Identification

 Access Systems

 Security Systems
