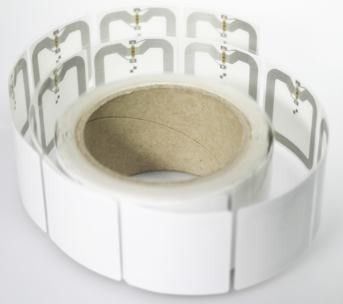

80g Coated Paper RFID Chip Sticker RFID Smart Labels 13.56Mhz Frequency

RFID Label Train ticket 85*54mm RFID Claasic® 1K EV1 Coustomize Printing

Chip Parameters

Frequency: 13.56MHZ

Standard:ISO14443A

Chip type: RFID Claasic® 1K EV1

Working mode: read or write

Read distance: reader(1~3cm) (Reader dependent)

Data retention: 10years

Product description

Benifits:

• Long read range due to high chip sensitivity
• Ease of tag assembly due to high chip input capacitance
• Consistent performance on different materials
• Reliable operation in multi-reader environment
• Theft protection through EAS feature
• Prevention of unauthorized memory access due to
• read protection
• Wide temperature range: -40°C up to +85°C
• Global use 13.5MHz

RFID Claasic® 1K EV1

• Contactless transmission of data and energy supply
• Operating distance up to 100 mm depending on antenna geometry and reader configuration
• Operating frequency of 13.56 MHz
• Data transfer of 106 kbit/s
• Data integrity of 16-bit CRC, parity, bit coding, bit counting
• Anticollision
• Typical ticketing transaction time of< 100 ms (including backup management)
• 7 Byte UID or 4 Byte NUID
• Random ID support (7 Byte UID version)

• 1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each (one block consists of 16 byte)
• User definable access conditions for each memory block
• Data retention of 10 years
• Write endurance 100.000 cycles

• 1 kB, organized in 16 sectors of 4 blocks (one block consists of 16 byte)
• User definable access conditions for each memory block
• Data retention time of 10 years
• Write endurance 200000 cycles

Company capacity

we always focused on providing to end users and distributors with the better products, faster delivery and more favorable price. We offer products as Inlay, Label, On-Metal Tag, Laundry Tag, Jewelry Tag, paper Ticket, Token, and Wristband etc. Also we can offer custom printed, roll, fanfold, sheet, digital and stock labels, inlay or tags. Our commitment is to meet your most demanding Tag needs.

FAQ

1. Q. How to order ?

1) Client supply the requirement details & vector artwork.

2) Quotation.

3) Order is confirmed.

4) We send client the PI and artwork proof.

5) PI and artwork proof are confirmed by client, then do the payment.

6) Start production once the payment is confirmed.

7)QC

8) Delivery by DHL /UPS/Fedex/ TNT, or by Sea, or by Air.

2. Q. Can we get free samples?

Yes ,we offer free samples, with shipping and taxes paid by the buyer.

3. Q. What is the minimum order quantity?

The MOQ for dry inlays is 1000pcs, for wet inlays or labels is 1000pcs,for other special tags is 1000pcs. for cards is 1000pcs.

4. Q. What is the lead time?

7-10 days below 20,000pcs after T/T payment, for other products please contact us for details.

5. Q. What is the payment term?

The payment term is T/T, PayPal, Western Union before shipment.

6. Q. What chip inside of your product?

As your request, normally SLE6636/36E original.

you can choose ISSI chip series,SLE chip series,24C chip series and AT88SC chip series etc.

7. Q. After-sale service:

• All products will have been strictly quality checked in house before packing
• All products will be well packed before shipping.
• All our products have 1 year warranty. And we sure the product will be free from maintenance within warranty period.
