Product Details:
|
| Type: | RFID Paper Card | Operating Frequency: | 13.56 MHz |
|---|---|---|---|
| Data Transfer: | 106 KBs | Typical Ticketing Transaction Time: | < 35 Ms |
| Fast Counter Transaction Time: | < 10 Ms | Product Name: | NFC Smart Card |
| Highlight: | 0.84mm Thick NFC Smart Cards,RFID NFC Paper Security Card,Public Transport Security Smart Card |
||

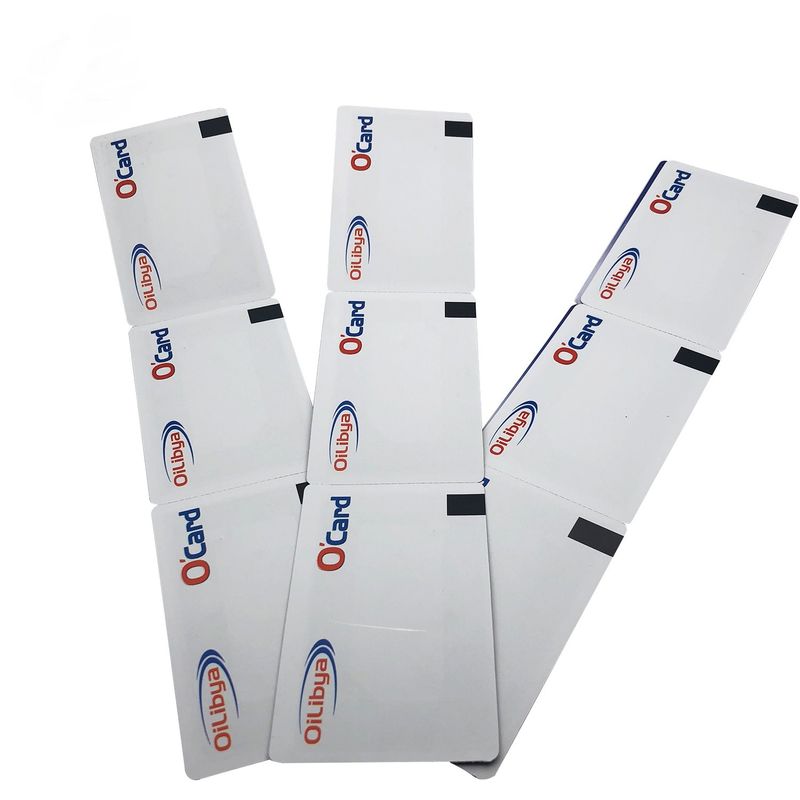

Security PVC RFID Ultralight® EV1 Card RFID NFC Smart Cards / paper smart card
NFC RFID Ultralight® EV1 RFID card paper card
1.1 Key applications
• Limited use tickets for public transport
• Limited use tickets for event ticketing
1.2 Contactless energy and data transfe
MF0ICU1 is connected to a coil with a few turns. The MF0ICU1 fits the TFC.0
(Edmondson) and TFC.1 (ISO) ticket formats as defined in BS EN753-2.
TFC.1 format tickets are supported by the MF0ICU10 chip which features a 17 pF on-chip
resonance capacitor.
The smaller TFC.0 format tickets are supported by the MF0ICU11 chip which features a
50 pF on-chip resonance capacitor.
1.3 Anticollision
An intelligent anticollision function enables simultaneous multicard operation. The
anticollision algorithm individually selects each card and ensures correct execution of a
transaction with the selected card without data corruption from other cards in the field.
2.1 RFID RF interface ISO/IEC 14443 A
Contactless transmission of data and supply energy (no battery needed)
Operating distance up to 100 mm depending on antenna geometry
Operating frequency of 13.56 MHz
Data transfer of 106 kBs
Data integrity of 16-bit CRC, parity, bit coding, bit counting
Anticollision
7-byte serial number in accordance with ISO/IEC 14443-3 cascade level 2
Typical ticketing transaction time of < 35 ms
Fast counter transaction time of < 10 ms
2.2 EEPROM
512-bit, organized in 16 pages with 4 bytes per page
Field programmable read-only locking function per page
32-bit user definable One-Time Programmable (OTP) area
384-bit user Read/Write area (12 pages)
Data retention time of 5 years
Write endurance 10000 cycles
| Material: | PVC/ABS/PET/Paper |
| Size: | ISO CR80 standard(85.5mm x 54mm) or customized |
| Thickness: | 0.8-0.84mm |
| Minimum QTY: | 500pcs. |
| Chips Available: | S50/S70/Ultralight / 1K/2K/4K/8K/Fudan chip/ 2/203 etc |
| Operating Frequency: | 13.56Mhz |
| Standard: | ISO14443A/ ISO14443B/ISO 15693 RFID card |
| Read Times: | >100 000 |
| Available Crafts: | 4 color off-set printing, magnetic stripe, embossing number, signature panel, photo, barcode, thermal printing, gold/shiver color scratch-off, series number punch, hole punched, UV printing, etc. |
| Surface: | glossy, matte, frosting |
| Price Items: | We accept FOB/CNF/CIF price. |
| Payment Term: | Paid by T/T or Western Union |
| Lead Time: | 5~7days after checking the payment |
| Delivery Way: | By express delivery, by sea or by air |
| Package Details | For standard card(85.5*54*0.86mm): inner box: 215×90×55mm (200pcs/box) Carton: 485×230×305mm( 25boxes/CTN) Standard size card weight (only for reference) : 1,000pcs is for 6kg |
| Sample Supply: | Free samples are available upon request |
| Certificate: | ISO 9001-2008 |
| Disclaimer: | The showing picture is only for your reference of our product. All related to intellectual property rights of trademark belongs to trade mark companies. |
