Product Details:
|
| Material: | PET,Paper,PP | Protocol: | ISO18000-6C/6B |
|---|---|---|---|
| Read Range: | 4-8 Meters | Chip: | IMPINJ MONZA R6/R6-P |
| Dimension: | 95x22mm/65x35mm/30x15mm | Print: | Printed Or Blank |
| Reading Distance: | 0.5-8m(depend On Reader),UHF1.5~10m,3m Depend On Reader,7m | Sample: | Free Sampls Availble,Free |
| Highlight: | Mount On Metal RFID Labels,Adhesive Mount On Metal PET Tags,8m Reading RFID Label Sticker |
||

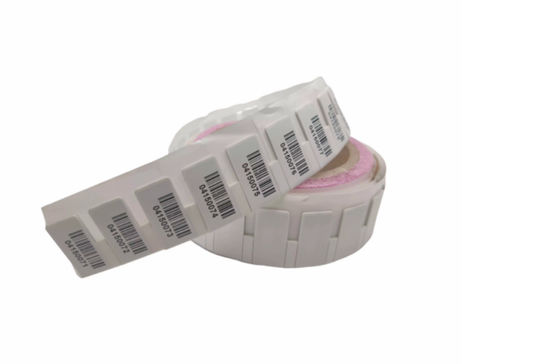

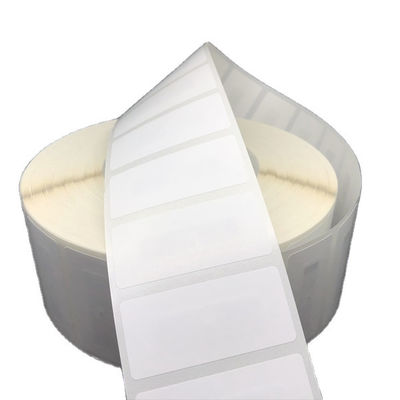

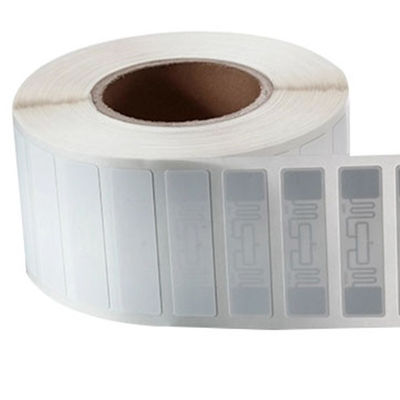

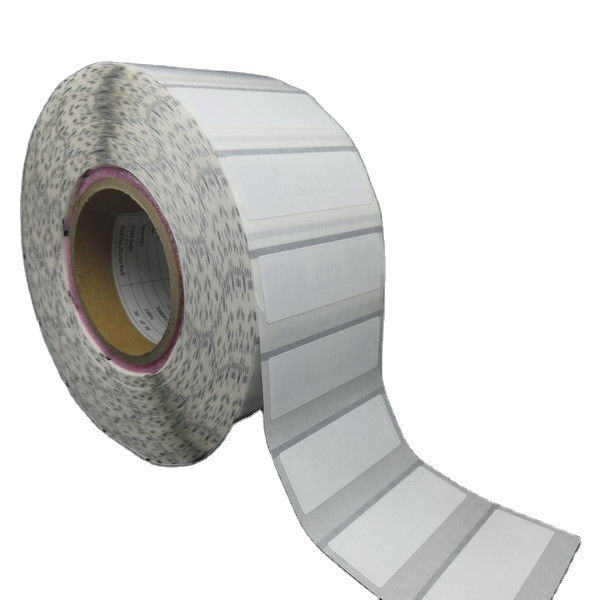

Mount on Metal RFID Labels 8m Reading Tags Flexible PP PET Label Stickers
|
Mount on Metal RFID Labels Description |
RFID flexible anti-metal tags is packaged into electronic tags with a special anti-magnetic absorbing material. It not only solves the problem that ordinary electronic tags can not be attached to metal surfaces, but also sticks like ordinary labels.
On the surface, it is responsible for collecting data in extreme environments such as metal.
|
||
| Physical Features: | |||
| Model | UHF Flexible On-metal Label | ||
| Material | PET | Dimensions | 95*22*1.25mm |
| Working Temp | -20～℃ | Survival Temp | -40℃～+100℃ |
| RFID Features: | |||
| RFID Standard | EPC C1G2 (ISO18000-6C) | ||
| Chip Type | Impinj Monza R6-P | ||
| User Memory | 32(64)bit | ||
| EPC Memory | 128(96) bits | ||
| Max Read Range | 865-868MHz | 8 meters | |
| 902-928MHz | 8 meters | ||
| Other Features: | |||
| Data Storage | > 10 years | ||
| Re-write | 100,000 times | ||
| Installation | Adhesive | ||
| Customization | Company logo,Barcode,Numbers printing,Encoding,etc | ||
|
Mount on Metal RFID Labels Application |
|
||
