Product Details:
|
| Material: | PET,Paper,PP | Protocol: | ISO18000-6C/6B |
|---|---|---|---|
| Read Range: | 4-8meters | Chip: | RFID Security Tags |
| Dimension: | 95x22mm/65x35mm/30x15mm | Print: | Printed Or Blanck |
| Reading Distance: | 0.5-8m(depend On Reader) | ||
| Highlight: | Flexible Zebra Printer UHF RFID Tags,Assets Management UHF RFID Labels,Assets Management Passive UHF Tags |
||

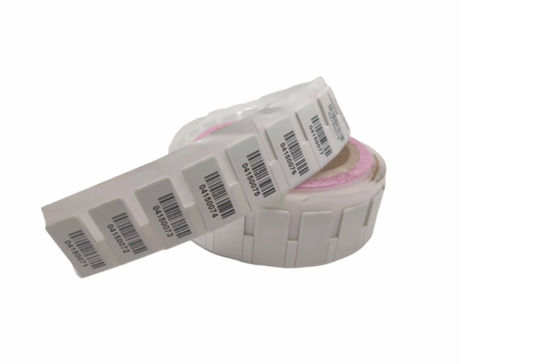

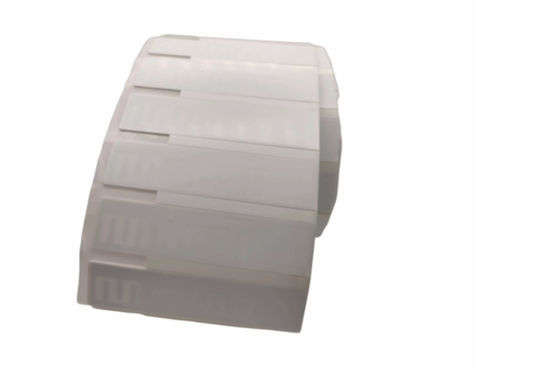

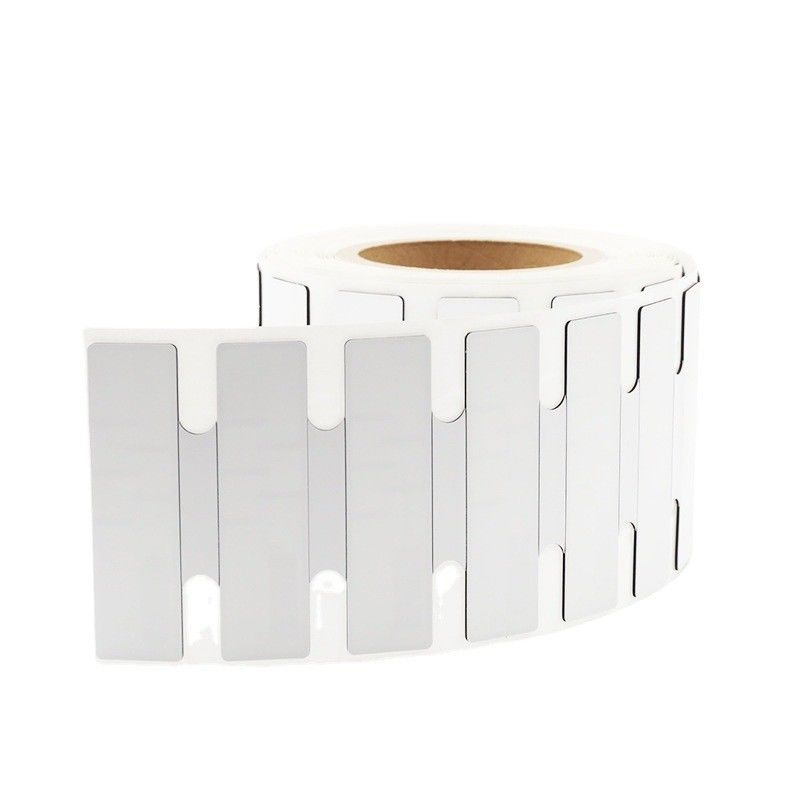

Passive UHF RFID Security Tags Used In Flexible Zebra Printer For Assets Management
The term RFID refers to radio frequency identification, a technology which utilizes radio waves to identify physical objects. Today, most common RFID systems are comprised of 3 main components, a tag, reader, and data processing software (management system). This technology is already being used by hospitals for record keeping, by industrial facilities to regulate access to secure areas, as well as retail and logistics for inventory and supply chain management.
|
RFID Security Tags Description |

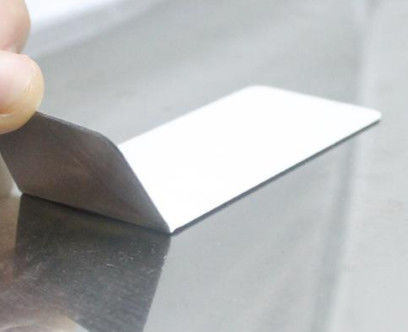

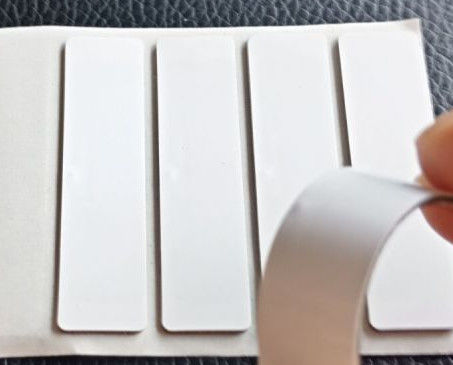

The tag is flexible and can be stuck on metallic assets easily, specially for irregular and uneven surface,such as steel boiler, metal container,steel pipe,etc .It has good performance on metal and can be printed with logo,numbers,text by RFID printers,such as Zebra ZT410 Silverline,Sato CL4NX,Toshiba SX-5,Postek TX3r,etc.Synchronous encoding is also available.
|
||
| Physical Features: | |||
| Model | UHF Flexible On-metal Label | ||
| Material | PET | Dimensions | 95*22*1.25mm |
| Working Temp | -20～+75℃ | Survival Temp | -40℃～+100℃ |
| RFID Features: | |||
| RFID Standard | EPC C1G2 (ISO18000-6C) | ||
| Chip Type | Impinj Monza R6-P | ||
| User Memory | 32(64)bit | ||
| EPC Memory | 128(96) bits | ||
| Max Read Range | 865-868MHz | 8 meters | |
| 902-928MHz | 8 meters | ||
| Other Features: | |||
| Data Storage | > 10 years | ||
| Re-write | 100,000 times | ||
| Installation | Adhesive | ||
| Customization | Company logo,Barcode,Numbers printing,Encoding,etc | ||
|
RFID Security TagsApplication |
|
||
